Telwin Maxima 230 Synergic
Multiprocess Welding Machine cod.816234

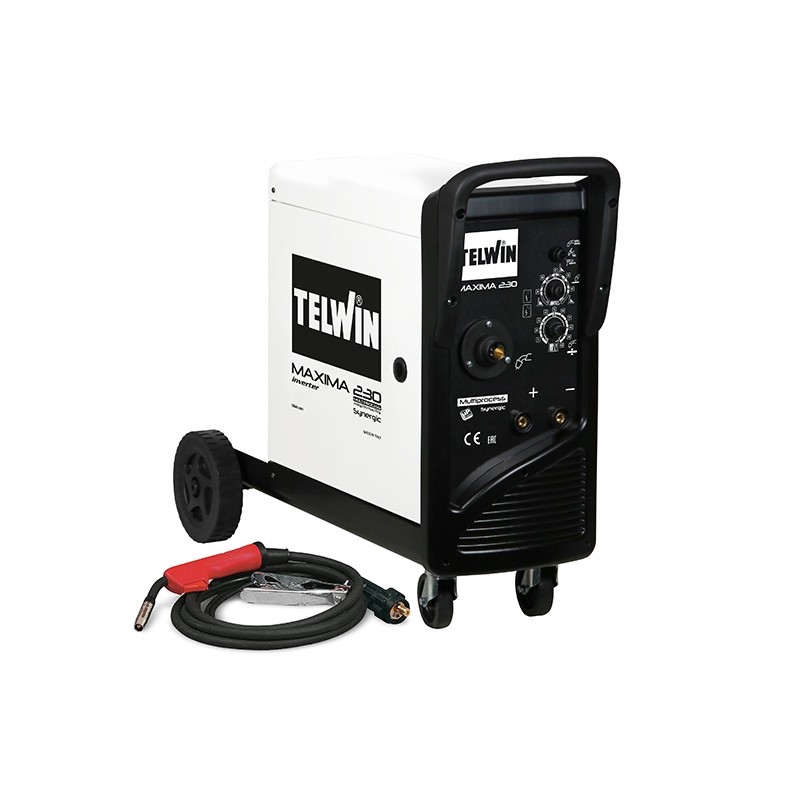

Telwin Maxima 230 Synergic - MIG - MMA - TIG welding machine cod.816234

Telwin Maxima 230 Synergic , welding machine from the Elements range by Telwin cod.816234 is a wire inverter machine for MIG - MAG / FLUX (mod.200) / BRAZING / MMA and TIG DC - Lift processes, controlled by a microprocessor .

This multi-process welder is an excellent work tool in the industrial and construction sector: thanks to its versatile use with different materials ( steel , stainless steel , aluminium ), Telwin Maxima 230 Synergic is the best welder for demanding professionals .

With a single work tool, the operator will be able to carry out excellent MIG - MAG - TIG welding , also supported by the microprocessor with which Maxima 230 Synergic is equipped and which allows for simpler and more immediate adjustment of the welding parameters .

Welding machine with four wheels for movement , of which the two rear ones are larger , and a comfortable handle for transport, Telwin Maxima 230 Synergic is compact and lightweight . It can be transported to internal and external intervention sites , with a 230V single-phase current connection .

In the purchase package, Telwin supplies a MIG-MAG torch , cable and earth clamp as standard.

Technical specifications

This wire welder has a single-phase 230 V current connection, 50/60 Hz frequency and a current adjustment range between 20 -220 A.

The no-load voltage is 52 V , with maximum absorbed current of 32 A. The maximum absorbed power is 4.8 kW , with power factor cosphi 0.7 and efficiency at 87%.

On Telwin Maxima 230 Synergic there is a polarity change for MIG - MAG / Brazing gas welding . There are also various protections, to protect the welder and the machine itself:

• Thermostatic protection
• Overvoltage, undervoltage
• Overcurrent and motor generator (+/- 15%)

The Telwin inverter welder includes a centralized torch connection.

There is also an Arc Force regulation in MMA : it is a device that facilitates the transfer of drops of molten material from the electrode to the material to be heated , preventing the arc from switching off when contact occurs between the electrode and the weld pool.

This wire welder is compatible with 15kg x 300mm spools .

The dimensions of Telwin Maxima 230 Synergic are 82 x 36 x 67 cm for a weight of 21 kg .

Welding diameters

Below are the different wire welding diameters :

• Steel: 0.6 - 1 mm
• Stainless steel: 0.8 - 1 mm
• Aluminum: 0.8 - 1mm
• Animated: 0.8 - 1.2 mm
• Brazing: 0.8 - 1 mm

TYPES OF WELDING POSSIBLE WITH Telwin Maxima 230 Synergic

• MMA : also called coated electrode welding, it is certainly the most widespread welding method in non-professional environments or in processes that do not require particular qualitative and productive performance. This type of welding machines are simpler to use even if they give less precise results from an aesthetic point of view compared to other types of welding.
• TIG : requires low voltage and therefore absorbs little, becoming cheaper and aesthetically the most beautiful of all welding techniques. TIG welding has a so-called coin shape due to the circular shapes it produces and is more resistant, therefore it is usually used in visible elements and on processes that require precision.
• MIG : in MIG welding the electrode is made of a metal wire which is also used as a filler material and the unwinding of the spool occurs semi-automatically.
• MAG : also semi-automatic, the gas used is carbon dioxide and it is mainly used to weld common steels. MIG welding guarantees a higher level of precision, more refined results and is preferred for large thicknesses while MAG is more economical and also allows you to weld copper, aluminum and magnesium.

Characteristics

• Lightweight and compact product
• 4 wheels for transport and handle
• Professional use workshop, construction site
• Multiprocess welding machine MIG - MAG / FLUX (mod.200) / BRAZING / MMA and TIG DC - Lift
• Microprocessor control, synergic regulation of welding parameters
• Versatility of use with steel, stainless steel, aluminium
• Simplified use for excellent workmanship
• IP23 protections
• Polarity change for gas welding MIG - MAG / BRAZING

Standard equipment

• Cable TW05V-A 1X025 L=1.80M Plug - cod. 124589
• Toledo 250 Ground Clamp 250 A - cod. 712030
• MT15 MIG torch 3M (RED) - cod. 742180
