Tecnogen LD22000TSS
Electric Start Generator with ATS
400V - 21 kW
1248 cc - 28.5 HP
Lombardini Diesel Engine
Warranty 2 years
Shipped on Pallet

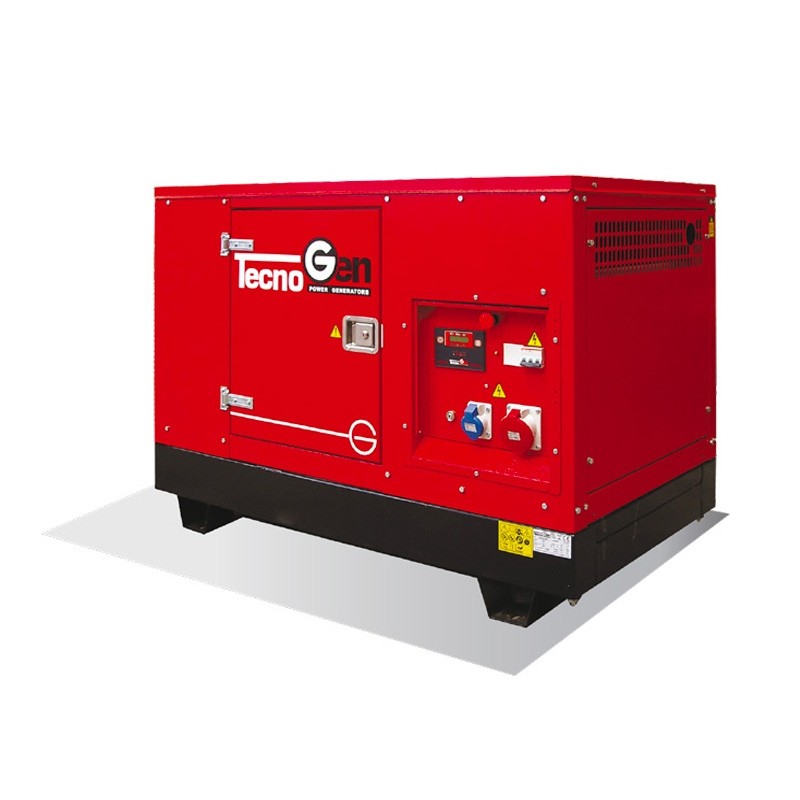

Tecnogen LD22000TSS - Diesel Generator with Electric Start
The Tecnogen LD22000TSS is a professional three-phase 400V diesel generator from the TecnoSilent series, designed for industrial, construction and agricultural applications. Equipped with a 1248 cm³ Lombardini-Kohler LDW1003FOCS engine and operating at 3000 RPM , it develops up to 17.5 kVA three-phase with a super-silenced structure and integrated electric start.
Available models

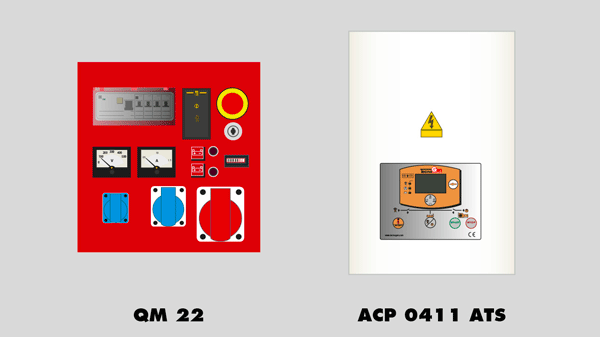

- LD22000TSS with standard panel

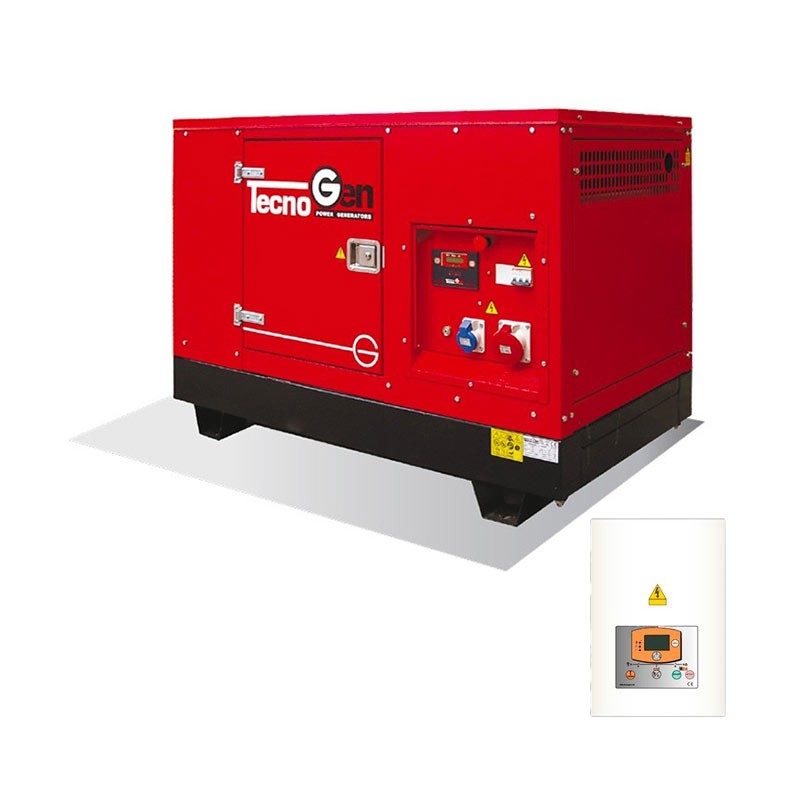

- LD22000TSS with ATS panel only
TECHNICAL SPECIFICATIONS
The Tecnogen LD22000TSS diesel generator delivers 17.5 kVA / 14 kW at 400V and 5.8 kVA / 4.7 kW at 230V . It is equipped with a Lombardini-Kohler LDW1003FOCS 4-stroke engine with direct injection , air cooling and centrifugal governor . Consumption is 3.4 L/h at 75% of the load with an integrated 54 L tank . It has an electric start , a manual panel with protected sockets , anti-vibration mounts , an exhaust silencer and is ready for the optional AVR .
FUNCTIONAL SPECIFICATIONS
Super Silent Cabin
The galvanized and painted steel casing reduces noise emissions, making the silenced generator suitable for noise-sensitive environments.

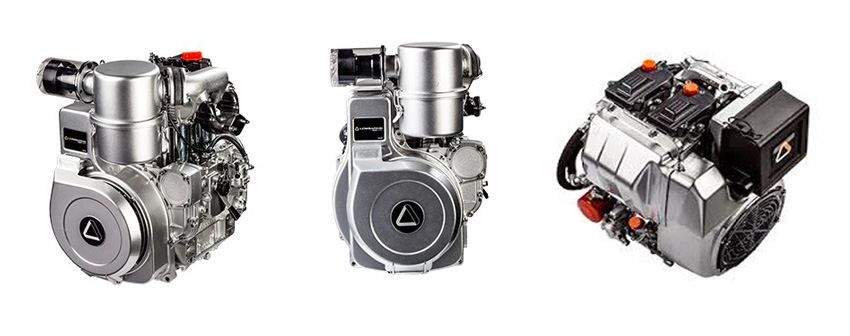

Lombardini Professional Engine
The Lombardini-Kohler diesel engine guarantees operational continuity, low fuel consumption and reliability in intensive professional use.
Electric Start
The 12V key and battery system allows for quick starts and simplified management of the professional diesel generator.
Protected Electrical Panel
The distribution board integrates sockets protected by a magnetothermal switch with an optional 0.03 A differential for greater operational safety.
Characteristics
- Professional diesel generator
- 400V three-phase generator set
- Maximum power at 230V 5.8 kVA / 4.7 kW
- Maximum power at 400V 17.5 kVA / 14.0 kW
- Lombardini LDW1003FOCS twin-cylinder 1248 cm³ engine
- Engine speed 3000 RPM
- Electric start
- Fuel consumption 3.5 L/h at 75% load
- 54 L fuel tank
- Low engine oil level protection system
- Thermal and magnetothermal protection on sockets
- Tubular frame with anti-vibration supports
- Integrated exhaust silencer
- AVR regulator provision on request
- ATS framework selectable from drop-down menu
- Industrial assembly made in Italy
Technical Data
| Power Supply | Diesel |
| Motor | Lombardini-Kohler LDW1003FOCS |
| Start-up | Electric |
| Displacement | 1248 cc |
| Output Voltage | 400V - Three-phase |
| Max Output Power | 21 kVA - 16.8 kW cos φ 0.8 |
| Rated Output Power | 7 kVA - 5.6 kW cos φ 0.8 |
| Engine Power | 28.5 HP |
| Consumption at 75% | 4.9 L/h |
| Tank Capacity | 48 L |
| LWA noise level | 96 dB |
| Dimensions | 145 x 80 x 106 cm |
| Weight | 400 kg |
