Battistella Marte Pneumatica
Professional Ironing Press
MPN: 250102
140 x 120 x 160 cm
15÷20 kg/h
Pneumatic Operation
Warranty 2 years
Shipped on Pallet

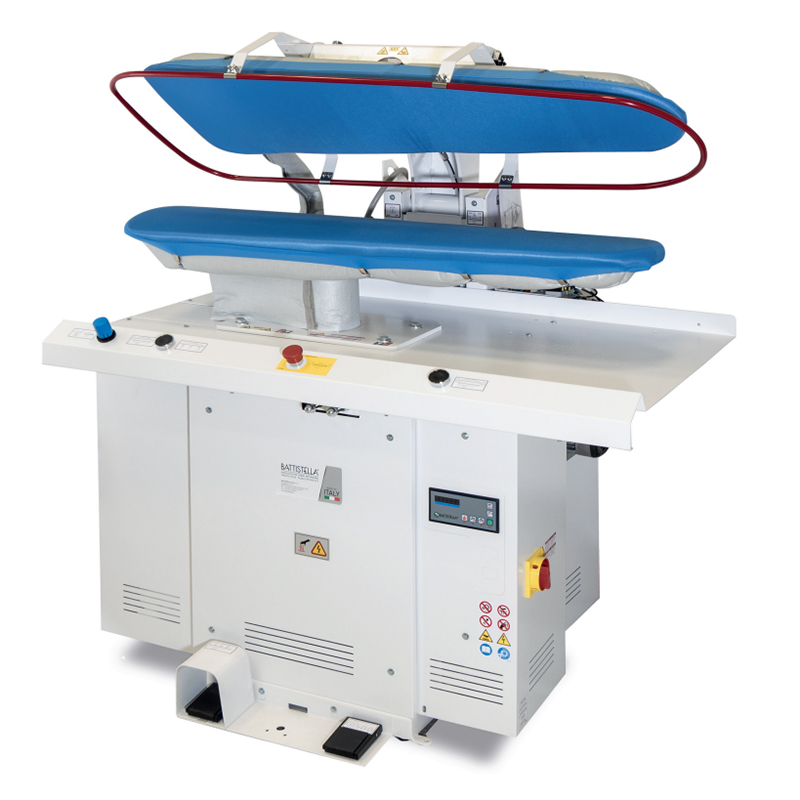

Battistella Marte Pneumatica - Professional Pneumatic Ironing Press
The Battistella Marte Pneumatica is a professional pneumatic ironing press, particularly suitable for industrial use in laundries and ironing shops. This machine stands out for its high-quality construction , reliability, and ability to optimize ironing processes thanks to its direct connection to a steam source.

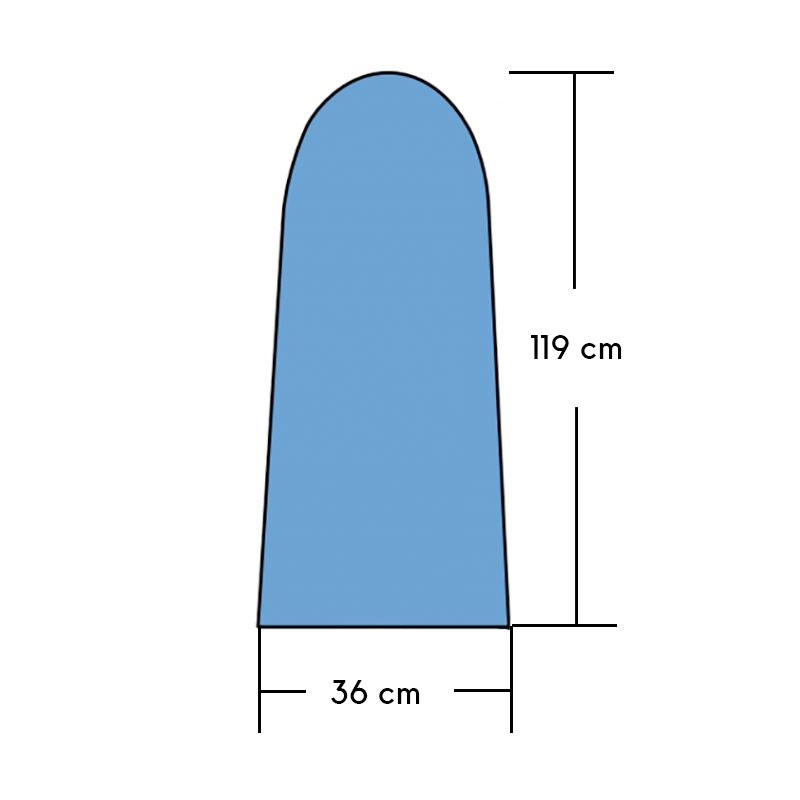

The Battistella Marte universal worktop is covered with high-quality materials to ensure gentle treatment on fabrics.
Image for illustrative purposes only. Accessories , including the pedal lock and hand guard frame, are not included and can be requested separately . See list of optional equipment available below.
Technical Specifications
The Battistella Marte Manuale is compact in size and weighs between 200 and 300 kg depending on the accessories installed, making it robust and stable during use . Average steam consumption is between 15 and 20 kg/h, with an operating pressure of 5-6 bar (connected to a suitable steam source). The ironing press can be connected to a compressor with a maximum air pressure of 6 bar.
The standard electrical connection is 230 V - 50 Hz, with the option of a 400 V three-phase power supply for use with internal boilers. The extraction connection has a diameter of 100 mm, ensuring effective vapor management and improving the operator's experience.
Functional Specifications
The Marte Manual ironing press is designed to offer an optimal and safe user experience. The machine can be equipped with a 0.5 HP suction system upon request to facilitate garment positioning and improve ironing quality. Optional accessories, such as a stainless steel arm , a steam gun for blowing or injecting steam, and a pedal -operated upper plate closure, are also available, further enhancing the machine's versatility.
This model integrates perfectly into professional work environments, ensuring high performance and long-lasting reliability. It can be combined with a 10-liter internal boiler with a power of 12 kW and/or a 1.5 HP (6 bar) air compressor , offering a complete solution for the most advanced needs.
Characteristics
- Pneumatic Operation
- Maximum customization
- Steam inlet connection Ø 100 mm
- Can be used with compressor
Optional on Request
This Ironing Press is compatible with the following Battistella accessories:
- 0.5 HP vacuum cleaner
- Stainless steel arm
- Internal boiler 10L (12 kW) 230V/400V on request
- Pedal-operated upper floor closing
- Iron with steam group
- Air/steam gun kit
- Blowing kit
- Glossy top side
- 1.5 HP compressor
Technical Data
| Power Supply | 230V / 400V on request |
| Average steam consumption | 15÷20 kg/h |
| Steam operating pressure | 5÷6 bar (on request) |
| Compressed air pressure | 6 bars (on request) |
| Suction cup connection diameter | Ø 100 mm |
| Dimensions | 120 x 140 x 160 cm |
| Weight | 200÷300 kg (depending on accessories) |
Technical Data
| Power Supply | 230V / 400V on request |
| Average steam consumption | 15÷20 kg/h |
| Steam operating pressure | 5÷6 bar (on request) |
| Compressed air pressure | 6 bars (on request) |
| Suction cup connection diameter | Ø 100 mm |
| Dimensions | 120 x 140 x 160 cm |
| Weight | 200÷300 kg (depending on accessories) |
