Battistella Saturno Max/S L102
Steam Generator with 2 Boilers
MPN: 50209
400 V - Boiler 24+24+24+24 kW
6 bar - 102 L
Warranty 2 years
Shipped on Pallet

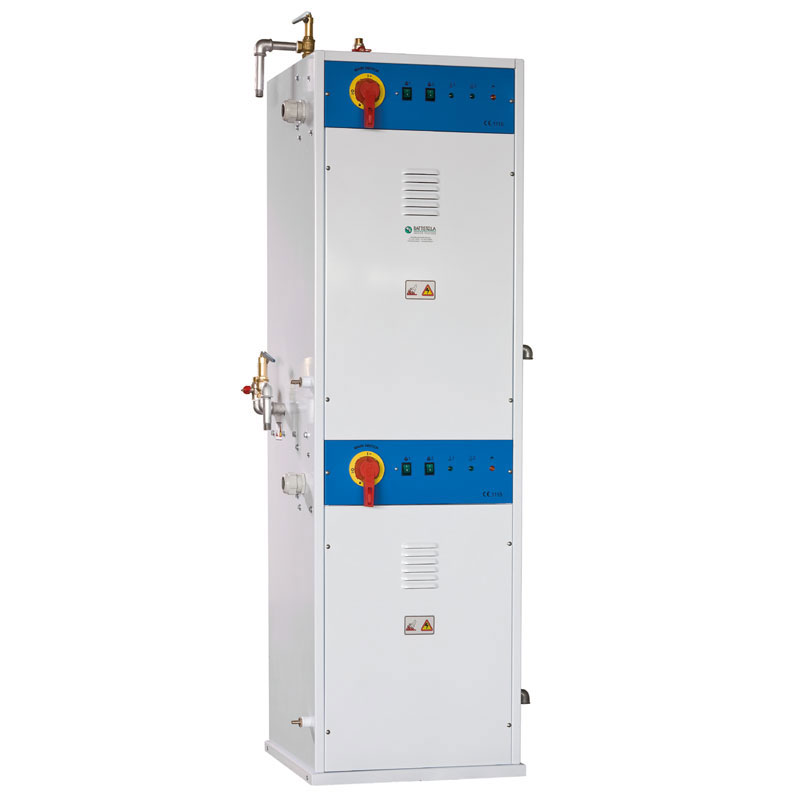

Battistella Saturno Max/SL 102 - Steam Generator with Two Independent 51 L Boilers
The Battistella Saturno Max/S L102 is an advanced steam generator composed of two independent boilers of 51L each , designed for industrial ironing systems , particularly studied for steam systems for mannequins or presses.
The Battistella Saturno Max/S L102 steam generator is capable of providing a continuous flow of steam even for intensive use thanks to its two boilers, each with a power of 24+24 kW, thus obtaining a total power of 96 kW . With two 0.7 HP pumps each, it guarantees a constant and stable flow of steam, maintaining the operating pressure at 6 bar . This pressure is optimal for a wide range of industrial applications, ensuring consistent, high-quality results.
Functional specifications
Iron with double boiler 51L + 51L
This steam generator consists of two separate boilers that work independently, each with a capacity of 51 L for a total of 102 L, allowing for long, uninterrupted sessions. The power of each Battistella Saturno Max boiler is 24+24 kW for a total power of 96 kW .
Steam pressure of 6 bar
The steam operating pressure is 6 bar , ideal for professional ironing.
2 x 0.7 HP pumps
This Battistella Saturno Max/S L102 ironing system is equipped with two 0.7 HP pumps .
Switches and lights
The Battistella Saturno Max S 102 L has a PRESSURE GAUGE , 2 switches for turning the boilers on/off , and steam ready and low water lights.
Three-Phase Voltage
The 102-litre Battistella Saturno Max S has a standard voltage of 400V but it is possible to request the single-phase 230V version.
- Safety valve
- Main ignition
- Boiler heating indicator light 1
- Boiler heating indicator light 2
- Low water warning light
- Turning on element 1
- Turning on element 2
Characteristics
- Steam generator with 2 boilers, 24+24 kW (96 kW total)
- Max operating pressure 6 bar
- Capacity 51L + 51L (102 Liters total)
- 0.7 HP pump
- High quality and durable over time
- Gauge
- Ideal for intensive professional/industrial use
Configurations on request
- 230 V
Accessories on request
- Steam gun kit for fur
- Steam Brush Kit
- 70 L stainless steel condensate recovery tank
- 70 L stainless steel condensate recovery tank with temperature control
Technical Data
| Power Supply | 400 V |
| Boiler Power | 24 + 24 + 24 + 24 kW |
| Iron Power | - |
| Total Power | 96 kW |
| Pressure | 6 bars |
| Boiler Capacity | 102 L |
| Automatic Pressure Control | YES |
| Electronic Control | YES |
| Command Console | YES |
| Solenoid valve | NO |
| Gauge | YES |
| External Plug | NO |
| Dimensions | 80 x 66 x 200 cm |
| Weight | 230 kg |
Technical Data
| Power Supply | 400 V |
| Boiler Power | 24 + 24 + 24 + 24 kW |
| Iron Power | - |
| Total Power | 96 kW |
| Pressure | 6 bars |
| Boiler Capacity | 102 L |
| Automatic Pressure Control | YES |
| Electronic Control | YES |
| Command Console | YES |
| Solenoid valve | NO |
| Gauge | YES |
| External Plug | NO |
| Dimensions | 80 x 66 x 200 cm |
| Weight | 230 kg |
