Battistella Saturno Max 24 L
Steam Generator with 24 L Boiler
MPN: 050207
400 V - Boiler 9 + 9 kW
6 bar - 24 L
Warranty 2 years
Shipped on Pallet

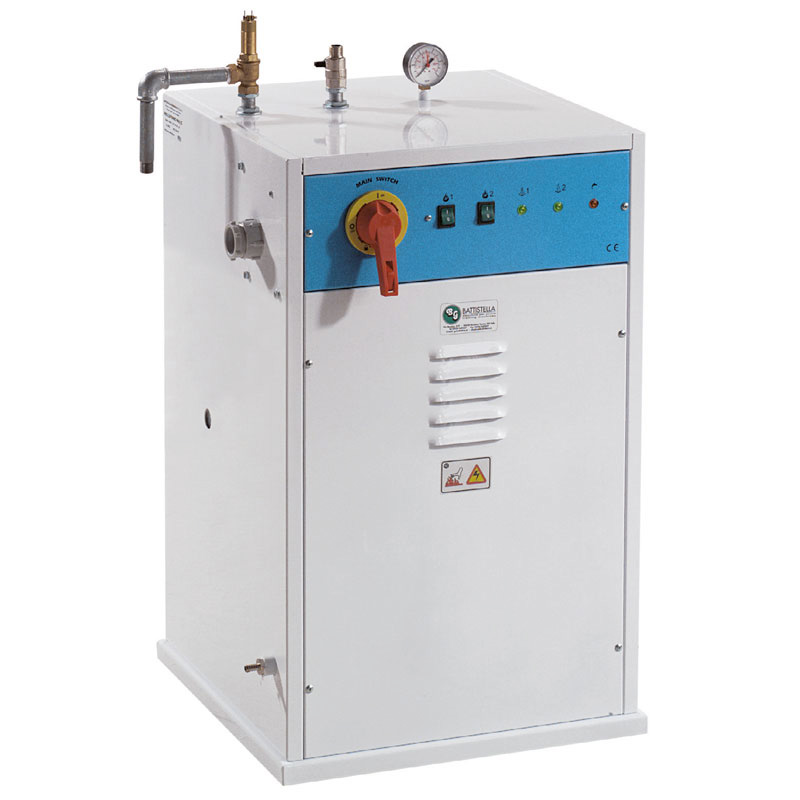

Battistella Saturno Max L 24 - Steam Generator with 24 L Boiler
The Battistella Saturno Max L 24 is a cutting-edge steam generator designed for industrial steam systems. This model is the ideal solution for those seeking efficiency, power, and reliability in a single device.
The Battistella Saturno Max L 24 steam generator features a 24-liter boiler, sufficient to provide a continuous flow of steam even in intensive applications. The boiler's power is impressive, with a standard 9+9 kW option, expandable to 12+12 kW upon request.
This allows the Saturno Max L 24 to adapt to the specific needs of different industrial applications, always ensuring optimal performance. In addition to the boiler, the Saturno Max L 24 includes two 900W irons, making this steam generator perfect for tasks requiring precision and durability.
The pump , with a power of 0.7 HP , ensures a constant and stable flow of steam, maintaining the operating pressure at 6 bar . This pressure is ideal for a wide range of industrial applications, ensuring uniform and high-quality results.
Functional specifications
Iron with 24 L boiler
The steel boiler has a capacity of 24 L to allow for uninterrupted work . The power of the Battistella Saturno Max boiler is 9+9 kW , while that of the irons is 900 W each.
Steam pressure of 6 bar
The steam operating pressure is 6 bar , ideal for professional ironing.
0.7 HP pump
The pump of this Battistella Saturno Max 24 L ironing system is 0.7 HP .
Switches and lights
The Battistella Saturnino Max 24 L has a PRESSURE GAUGE , 2 switches for turning the boilers on/off , and steam ready and low water lights.
- Safety valve
- Main ignition
- Boiler heating indicator light 1
- Boiler heating indicator light 2
- Low water warning light
- Turning on element 1
- Turning on element 2
Watch the Video
Characteristics
- Steam generator with 2 boilers, 9 + 9 kW
- For 2 x 900 W irons
- Max operating pressure 6 bar
- Capacity 24 L
- 0.7 HP pump
- High quality and durable over time
- Gauge
- Ideal for intensive professional/industrial use
Configurations on request
- 230 V
- 24 kW
- 20000 kCal/h
- 31-32 kg/h
Accessories on request
- Steam gun kit for fur
- Steam Brush Kit
- 70 L stainless steel condensate recovery tank
- 70 L stainless steel condensate recovery tank with temperature control
Technical Data
| Power Supply | 400 V |
| Boiler Power | 9000 + 9000 W |
| Iron Power | 2 x 900 W |
| Total power | 19800 W |
| Pump Power | 0.7 HP |
| Pressure | 6 bars |
| Boiler Capacity | 24 L |
| Automatic Pressure Control | YES |
| Electronic Control | YES |
| Command Console | YES |
| Solenoid valve | NO |
| Gauge | YES |
| External Plug | NO |
| Dimensions | 70 x 105 x 60 cm |
| Weight | 90 kg |
Technical Data
| Power Supply | 400 V |
| Boiler Power | 9000 + 9000 W |
| Iron Power | 2 x 900 W |
| Total power | 19800 W |
| Pump Power | 0.7 HP |
| Pressure | 6 bars |
| Boiler Capacity | 24 L |
| Automatic Pressure Control | YES |
| Electronic Control | YES |
| Command Console | YES |
| Solenoid valve | NO |
| Gauge | YES |
| External Plug | NO |
| Dimensions | 70 x 105 x 60 cm |
| Weight | 90 kg |
