Speroni SQ 150
Single-channel impeller submersible electric pump
Public sewage and industrial water

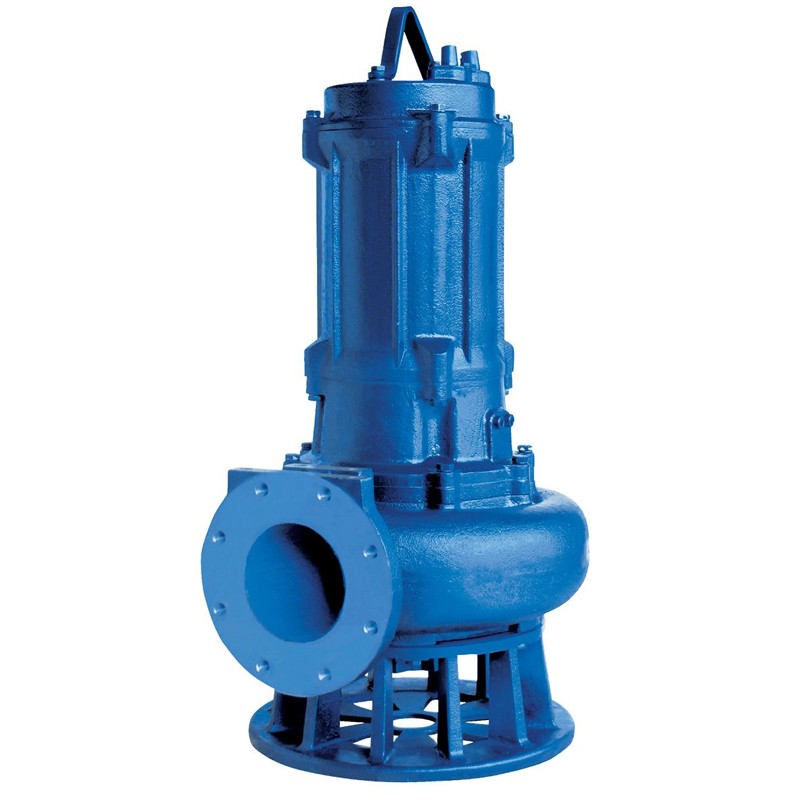

Speroni SQ 150 - Submersible Sewage Electric Pump

The Speroni SQ 150 electric pumps, thanks to the numerous devices applied, constitute the solution to the problems of conveying water from public establishments , liquids from purifiers , sewage systems , livestock farms , slaughterhouses and salami factories , foundries , the agriculture and for irrigation .

Speroni SQ 150 is an electric pump with single-channel open impeller which offers large free passages and excellent efficiency .

The Speroni SQ 150 sewage pumps for sewage are electric pumps that can be used in the fish and paper industries, in civil and residential plant engineering, in contact with low or medium density industrial sludge.

Speroni SQ pumps are appreciated for their reliability , optimal performance and ease of use. They are built with resistant materials to ensure a long life and low maintenance. Furthermore, they are designed to be quiet and energy efficient, thus reducing operating costs.

Materials

• Motor body: Cast iron
• Pump body: Cast iron
• Impeller: Cast iron
• Motor shaft: AISI 304 stainless steel
• Double mechanical seal in oil chamber: Ceramic/Graphite Silicon/Silicon

Pump design

Operation curve

Fields of application

• Sewage systems
• Public exercise water conveyance
• Livestock farms
• Fish industry
• Paper industry
• Residential civil engineering
• Low or medium density industrial sludge

Characteristics

• Submersible electric pump
• Dirty public water conveyance
• Electric pump with open single-room impeller
• Submerged for max 10 m
• Made in Italy
• IP68

Models available

• Speroni SQ 150-11 - 400 V - 15 HP
• Spurs SQ 150-15 - 400 V - 20 HP
• Speroni SQ 150-18.5 - 400 V - 25 HP
• Speroni SQ 150-22 - 400 V - 30 HP
• Spurs SQ 150-30 - 400 V - 40 HP
• Spurs SQ 150-37 - 400 V - 50 HP
