Svelt Ponte SPONTE206
Bridge ladder with handrail
6 steps UNI EN131
€1,880.00
€1,540.98 tax excl.
| or in 3 rates from 626.67 € with |  |
library_add
more options
MPN: SPONTE206
Working height 1.38-3.38 m
6 steps - 52 kg
Max. 150 Kg - EN 131
Warranty 5
years
14 days to change your mind
Shipped on Pallet

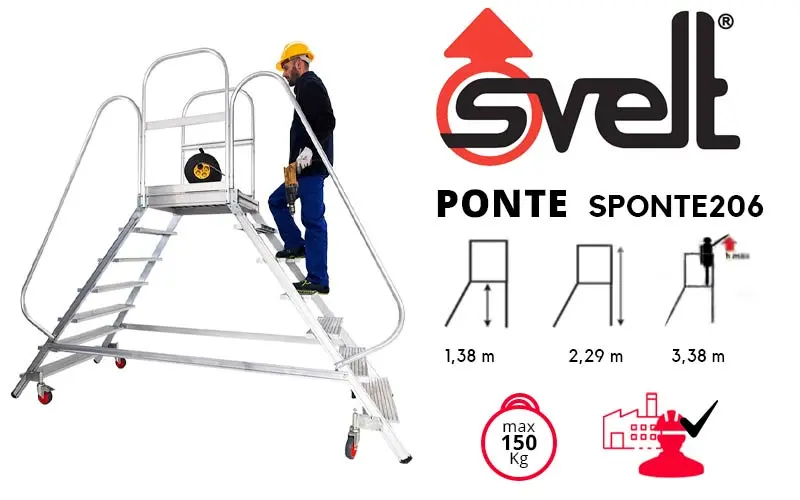

Svelt Ponte SPONTE206 - 6-step bridge ladder with parapet for professional use
Svelt Ponte is a removable bridge staircase made up of two climbing sections, large oversized steps and safety handrails along the entire staircase.
This type of ladder is ideal for climbing over production lines or obstacles, offering easier access to places that would otherwise be difficult to reach. Both in construction and in the industrial sector, bridge ladders are essential to guarantee the mobility and safety of operators.
Thanks to the spring braking system, the Svelt SPONTE206 bridge ladder is safe for the user and allows you to reach 3.38 m by hand . Its total height is 2.29 m while the distance from the ground to the platform is 1.38 m .
Complies with the European regulation UNI EN131 and the Italian decree Legislative Decree 81/08.
Main Features of the Ponte Svelt ladder range:
- Non-slip aluminum platform 60 x 80 cm
- Depth and distance of steps 20 cm
- Ramp profile 65 x 25 mm
- Ramp inclination 55°
- Toe clip height 6 cm
- Ramp width 60 cm
- 2 spring wheels with brake Ø 125 mm
- 2 spring wheels without brake Ø 125 mm
- Aluminum reinforcement bars
- Steps welded to the uprights
Avoiding injuries while using stairs is essential. For this reason, the ladder equipped with 20 cm deep rungs and safety railing is the ideal choice.
The Svelt Ponte SPONTE206 6-step ladder features:
- Height from ground to platform 1.38 m
- Total height of the ladder 2.29 m
- Maximum height reachable by hand 3.38 m
- Base size 0.94 x 2.35
- Certified according to EN UNI131 and Legislative Decree 81/08
These ladders are tested against tipping according to European standards UNI EN131/7 with a thrust of 30 kg at platform level. The presence of the handrail makes climbing and descending the ladder safer and more stable but if the work platform exceeds one meter in height it is advisable to equip the ladders with handrails on both sides.
Functional specifications
Self-braking system
Svelt Ponte is equipped with a braking system that comes into operation when the ladder is in use with an operator on it. With the weight, the spring system blocks the wheels and is released when the operator descends from the ladder. For greater safety it is also necessary to use the foot brake present on two of the 4 wheels which make the ladder even more stable which, once unloaded, can be pushed.
Increased steps
The oversized steps with a large tread depth of 20 cm and a distance between one step and another of 20 cm guarantee maximum stability and ease of use. The steps are welded to the extruded ribbed aluminum structure.
Watch the video
High technical quality and Made in Italy .
5 year guarantee
Svelt products are guaranteed for 5 years, demonstrating their high quality and reliability
Accessories on Request
- 2 Optional handrails on the opposite side
- Tool tray
Technical data
| Model | SPONTE206 |
| Pegs | 6 |
| Rung depth | 20cm |
| Distance between steps | 20cm |
| Storage Platform | Optional |
| Max. height reachable by arm | 3.38 m |
| Total Height of Staircase | 2.29 m |
| Height from ground to platform | 1.38 m |
| Certification | EN 131 |
| Max. flow rate | 150kg |
| Weight | 52 kg |
Technical data
| Model | SPONTE206 |
| Pegs | 6 |
| Rung depth | 20cm |
| Distance between steps | 20cm |
| Storage Platform | Optional |
| Max. height reachable by arm | 3.38 m |
| Total Height of Staircase | 2.29 m |
| Height from ground to platform | 1.38 m |
| Certification | EN 131 |
| Max. flow rate | 150kg |
| Weight | 52 kg |
