Pramac P15000
Generator 230/400V
230/400V - 13,3÷15,7 kW
688 cc - 11,20 HP
BENZINA
Warranty 2 years
14 days to change your mind
Shipped on Pallet

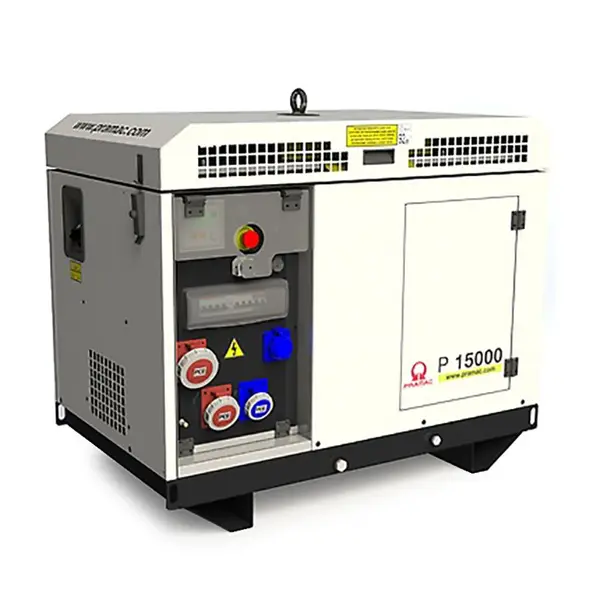

Pramac P15000 - Generator 230/400V
Pramac P15000 is a powerful and high-performance generator, made with very resistant high-quality materials , it is also very silent , emitting only 64 dB(A) at 7 metres distance.
The generator is composed of a sturdy support frame for the motor-alternator and hood , and is also equipped with correctly sized anti-vibration supports .
Generator equipped with a large tank to increase autonomy, fuel level sensor and external filling nozzle for simple and quick operations (cap with key available as an accessory).
Available models
Selectable from drop-down menu:
- Pramac P15000 Single-phase - cod. PF153SHBZ00
- Pramac P15000 Three-phase - code PF153THBZ00
Technical specifications
Single phase generator power
The single-phase P15000 generator cod. PF153SHBZ00 has a maximum power of 12 kW (13.3 kVA) , with continuous power of 10.7 kW (11.8 kVA ) at 3000 rpm.
Three-phase generator power
Pramac P15000 is a three-phase generator cod. PF153THBZ00 that supplies emergency power of 12.60 kW (15.70 kVA) and continuous service power of 11.20 kW (14 kVA) , for a nominal continuous service power of 9.80 kW (12.20 kVA) .
The maximum single-phase rated power is 8.1 kVA , while the continuous single-phase rated power is 7.5 kVA .
Generator engine

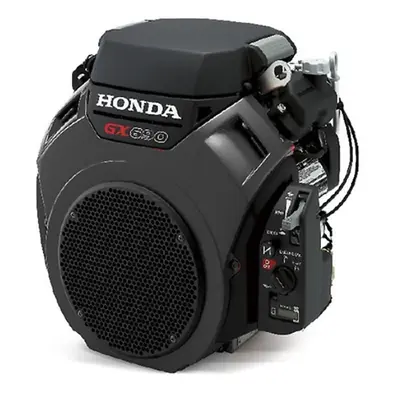

The Pramac P15000 generator is powered by a Honda GX690 air-cooled engine, with a displacement of 688 cc , naturally aspirated and 3000 RPM .
The engine speed regulator is mechanical, the starting system is electric and it is powered by petrol, with an oil tank capacity of 1.9 L , while the fuel tank capacity is 40 L.
The engine is complete with battery , fluids (no fuel) and oil pressure sensor .
Alternator
The alternator of the Pramac P15000 generator is of the class H brush type, with IP 23 protection, 2 poles and AVR voltage regulation system.
Autonomy
The Pramac P15000 power pack has a fuel consumption at 75% load of 5.96 L/h , while at 100% load of 6.84 L/h . The autonomy at 75% load reaches 6.71 hours , while at 100% it reaches 5.85 hours .
Quick and easy maintenance
This generator is designed for access to all components by opening the roof (opening and closing with safety key ).
It features a side maintenance hatch with locking opening from the inside and an oil drain pipe with cap.

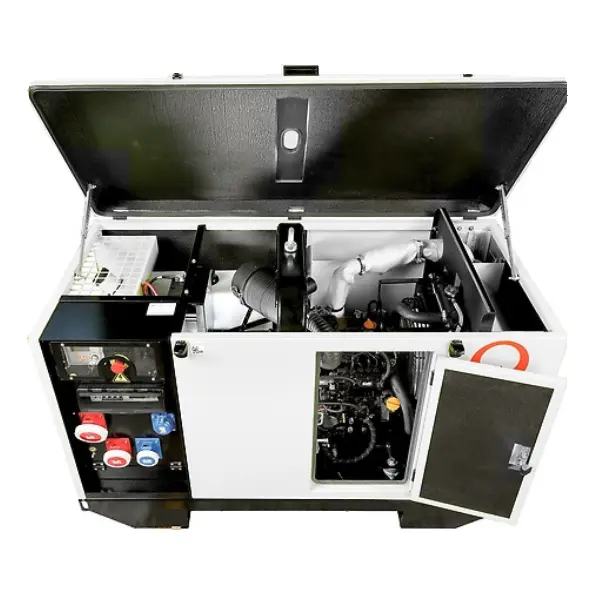

Casing
The modular enclosure is designed for easy access to all components from one side only, is suitable for outdoor use and is made of galvanized sheet metal .
The noise is attenuated thanks to the high quality sound-absorbing material casing. There is a high-reduction residential muffler inside the casing, and there are also lifting points for easy transport .
Control panel
The control panel is user friendly , allows complete control and protection , is also set up for remote control and has a protective cover for the controller .
The control panel is mounted on the generator set, complete with digital control unit and generator set protection.
The control section features:
- Control unit with 3-position key:
- OFF, ON local start
- REM remote 2-wire remote start/stop (REM)
- Connector for RSS / AMF panel Alarm buzzer
Control unit
The Pramac P15000 generator control unit houses:
- LCD display with icons (52x35mm)
- Group parameters:
- V
- Hz
- RPM
- A (single phase)
- kVA
- kWe
- Fuel level (%) - Parameter control and/or firmware transfer via NFC smart connection
Protections
The protections present on the generator are the following:
- Switch
- Generator protection :
- Overload
- Current
- Tension
- High coolant temperature
- Low oil pressure
- Low fuel level - Emergency button
Sockets
- SCHUKO 230V 16A IP68
- 2P+T CEE 230V 16A IP67
- 3P+N+T CEE 400V 16A IP67
- 3P+N+T CEE 400V 32A IP67
Alarms and Protections
- Generator voltage out of limits
- Battery charge fault
- Low oil level
- Failure to start
- External stop
- Wireless radio control with connector (maximum distance 90 m in open field)
Instrumentation
- Mains voltage
- Generator voltage
- Frequency meter
- Hour counter
Standard equipment
- Control and Command Unit (DGT)
- Phase sensor
- Switching with interlock
- Maintenance battery charge
- Audible alarm
- 8m auxiliary connection cable
- External start stop command
- Emergency stop button
Optional equipment
- DPP Differential protection
- IPP Isolation Controller
Technical Data
| Power Supply | 400V | 230 V |
| Code | PF153THBZ00 | PF153SHBZ00 |
| Motor | Honda GX690 | Honda GX690 |
| Start-up | Electric | Electric |
| Displacement | 688cc | 688cc |
| Output Voltage | 400V | 230 V |
| Max Output Power | 15.7 KVA - 12.60 KW cos φ 0.8 | 13.3 KVA - 12 KW cos φ 0.9 |
| Engine RPM | 3000 RPM | 3000 RPM |
| Nominal Power | 12.2 KVA - 9.80 KW cos φ 0.8 | 11.8 KVA - 10.7 KV cos φ 0,9 |
| 100% autonomy | 5.85 hours | 5.71 hours |
| 75% autonomy | 6.71 hours | 6.55 hours |
| Fuel Capacity | 40 L | 40 L |
| Noise at 7 meters and 50% load | 64dB(A) | 64dB(A) |
| Oil Capacity | 1.9 L | 1.9 L |
| Voltage Regulation Type | AVR | AVR |
| Fuel consumption at 75% | 5.96 L/h | 5.96 L/h |
| Fuel Consumption at 100% | 6.84 L/h | 6.84 L/h |
| Dimensions | 120.5 x 75.4 x 103.5 cm | 120.5 x 75.4 x 103.5 cm |
| Weight | 325 kg | 288 kg |
Technical Data
| Power Supply | 400V | 230 V |
| Code | PF153THBZ00 | PF153SHBZ00 |
| Motor | Honda GX690 | Honda GX690 |
| Start-up | Electric | Electric |
| Displacement | 688cc | 688cc |
| Output Voltage | 400V | 230 V |
| Max Output Power | 15.7 KVA - 12.60 KW cos φ 0.8 | 13.3 KVA - 12 KW cos φ 0.9 |
| Engine RPM | 3000 RPM | 3000 RPM |
| Nominal Power | 12.2 KVA - 9.80 KW cos φ 0.8 | 11.8 KVA - 10.7 KV cos φ 0,9 |
| 100% autonomy | 5.85 hours | 5.71 hours |
| 75% autonomy | 6.71 hours | 6.55 hours |
| Fuel Capacity | 40 L | 40 L |
| Noise at 7 meters and 50% load | 64dB(A) | 64dB(A) |
| Oil Capacity | 1.9 L | 1.9 L |
| Voltage Regulation Type | AVR | AVR |
| Fuel consumption at 75% | 5.96 L/h | 5.96 L/h |
| Fuel Consumption at 100% | 6.84 L/h | 6.84 L/h |
| Dimensions | 120.5 x 75.4 x 103.5 cm | 120.5 x 75.4 x 103.5 cm |
| Weight | 325 kg | 288 kg |
