Tecnogen H5000SS H8000SS H15000SS
Silenced Single-Phase Generator

Tecnogen H5000SS H8000SS H15000SS - Sintel Series Single-Phase Power Generators

The Tecnogen Sintel range includes the professional H5000SS , H8000SS , and H15000SS silenced single-phase generators , Made in Italy and designed for industrial applications, construction sites, and continuous use. These air-cooled gasoline generators with Honda engines guarantee reliability , stable power output , and long life even in harsh conditions.

The Tecnogen H5000SS, H8000SS and H15000SS models operate at 3000 RPM at 50 Hz , with 230V voltage and cos φ 0.8 , equipped with soundproof cover , exhaust silencer and electric key start , offering a compact, silent and ready-to-use solution for professionals and industrial construction sites.

AVAILABLE MODELS

The Sintel single-phase range from Tecnogen includes the following generator models, all with the option of standard or ATS Auto Start :

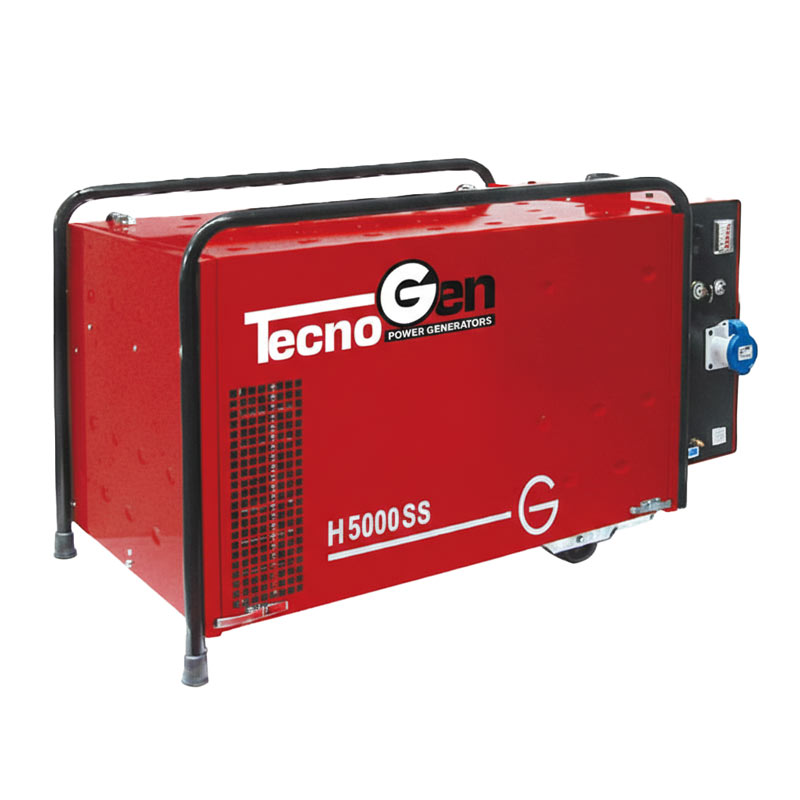

• H5000SS - Honda GX270 engine, 270 cc, 4.5 kVa
• H8000SS - Honda GX390 engine, 389 cc, 7.2 kVa
• H15000SS - Honda GX690 engine, 688 cc, 13 kVa

TECHNICAL SPECIFICATIONS

The engine is petrol-powered , with an air-cooled system and a 12V battery for electric starting . All models feature an integrated fuel tank , high-efficiency air filter , and a dedicated exhaust silencer , all of which contribute to operational continuity and noise reduction. Energy management is via a distribution box with a socket and circuit breaker, with the option of optional differential protection.

In terms of performance, Tecnogen H5000SS delivers up to 4.5 kVA at 50 Hz with a continuous power of 4.1 kVA , a 9 HP single-cylinder Honda GX270 engine, a consumption of 1.5 L/h at 75% and a 7 L tank . Tecnogen H8000SS reaches a maximum of 7.2 kVA at 50 Hz , with a 389 cc Honda GX390 engine, a consumption of 1.9 L/h and a 15 L tank . Tecnogen H15000SS represents the top of the range with a maximum of 13 kVA at 50 Hz , a 688 cc twin-cylinder Honda GX690 engine, a consumption of 4.2 L/h and a 20 L tank . All models maintain a noise level of 88 LWA .

FUNCTIONAL SPECIFICATIONS

Integrated professional soundproofing

The soundproofing cover on Tecnogen Sintel generators is designed to reduce noise without compromising engine cooling. This solution allows the silent generator to be used even in noise-sensitive environments such as urban areas, events, or regulated construction sites.

High-performance Honda engine

Each model is equipped with a proven Honda GX engine , configured for continuous operation at 3600 rpm . The use of professional Honda engines ensures quick starts, optimized fuel consumption and a stable power curve, essential requirements for powering professional loads.

Electric start and simplified management

The key-operated electric start with a 12V battery allows for immediate start-up of the single-phase generator, reducing machine downtime. The QM132 , QM133 and QM107 control panels , with the ACP0411 automatic panel option, ensure clear and safe management of operating functions.

Protected electrical distribution

The distribution box with circuit breaker ensures reliable power delivery that complies with professional standards. The option to integrate differential protection makes the Tecnogen H5000SS , H8000SS, and H15000SS generators suitable for temporary installations and applications where electrical safety is a must.

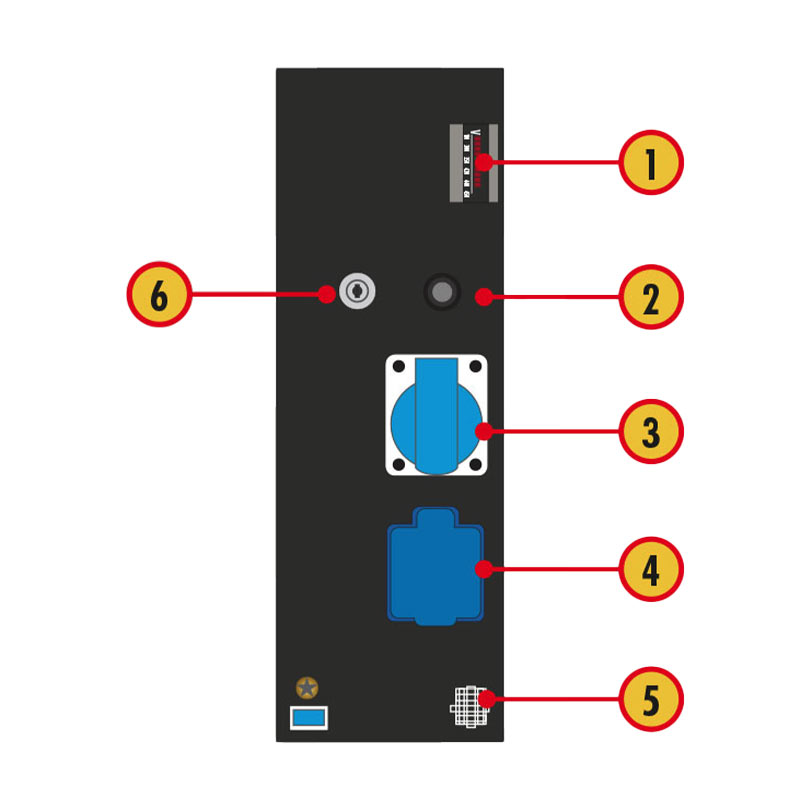

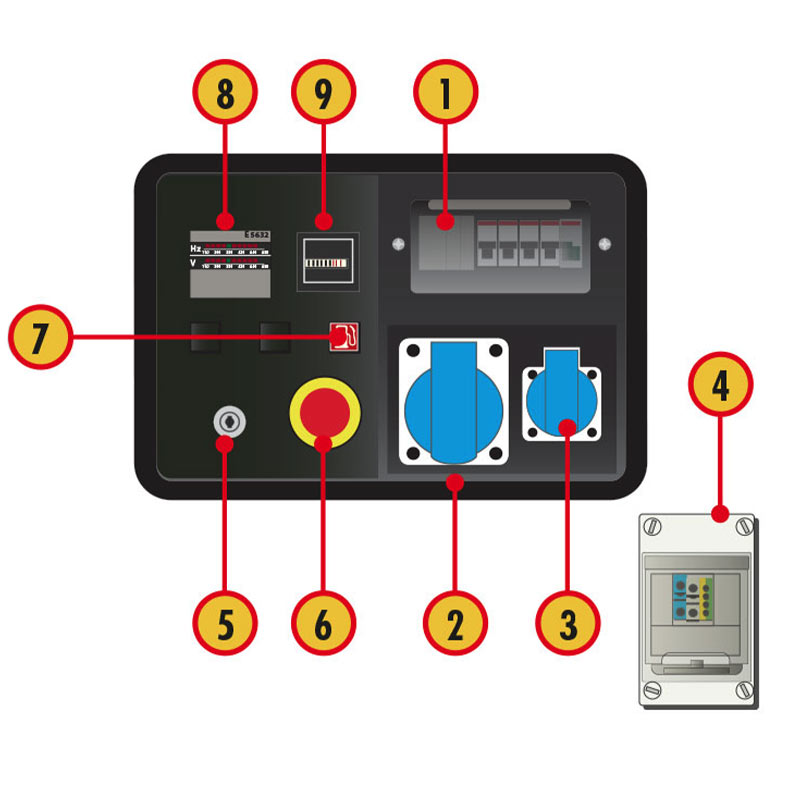

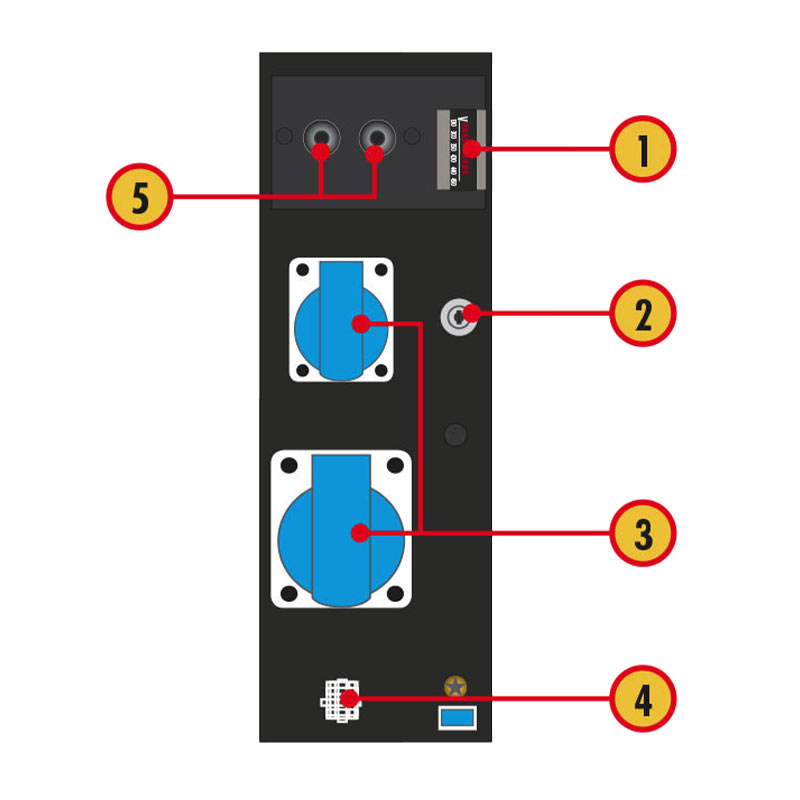

CONTROL PANELS

Characteristics

• Professional silent single-phase generators
• Honda GX air-cooled gasoline engine
• Electric start with 12V battery
• 230V - 50 Hz - cos φ 0.8
• Soundproof cover and exhaust silencer
• Made in Italy

Optional Equipment

• F11 - Start-up and shutdown kit with 15m cable
• A064 - Manual trolley with pneumatic wheels and foldable handles
• A071 - Slow-towing trailer for construction site use

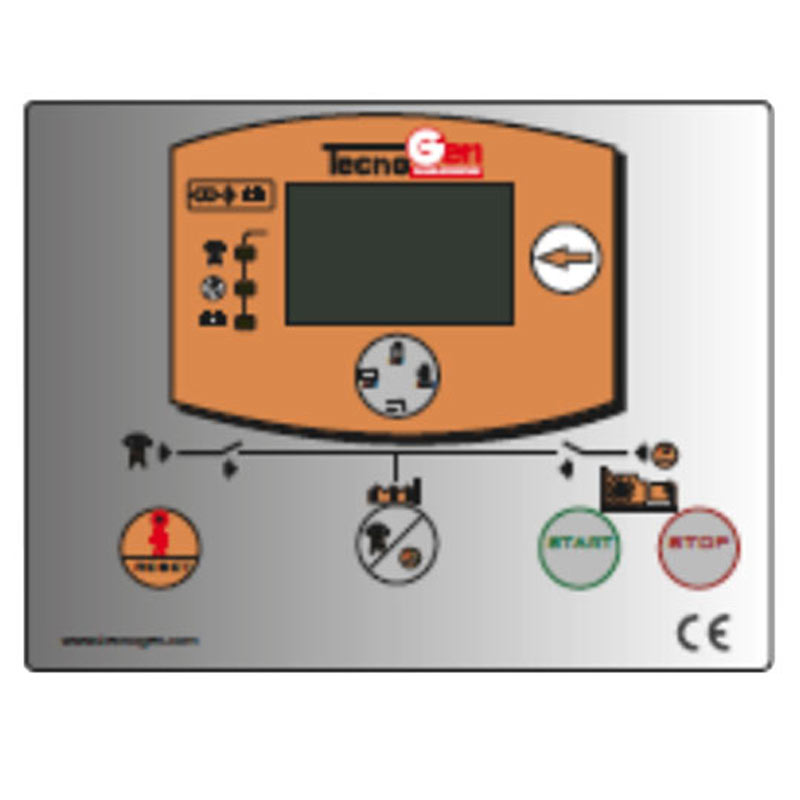

• ACP0411 - ATS electrical panel (for automatic generator start-up in the event of a blackout)
  • Electronic control unit
  • Voltmeter
  • Frequency meter
  • Network/group switching
  • Circuit breaker
  • Automatic battery charger
