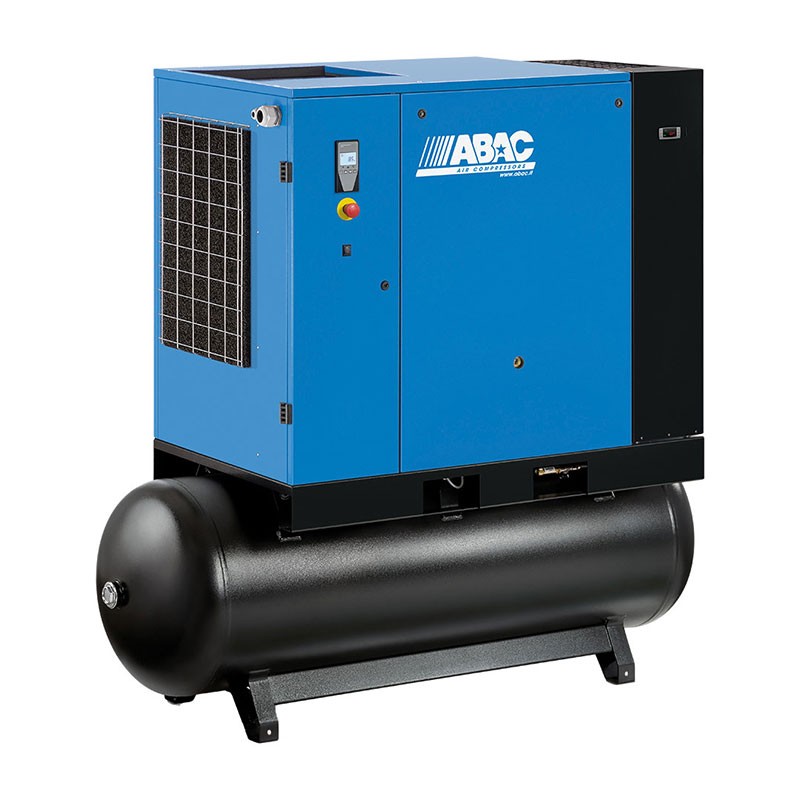

ABAC SPINN 15-22 kW
Screw Compressors with 500 L Tank

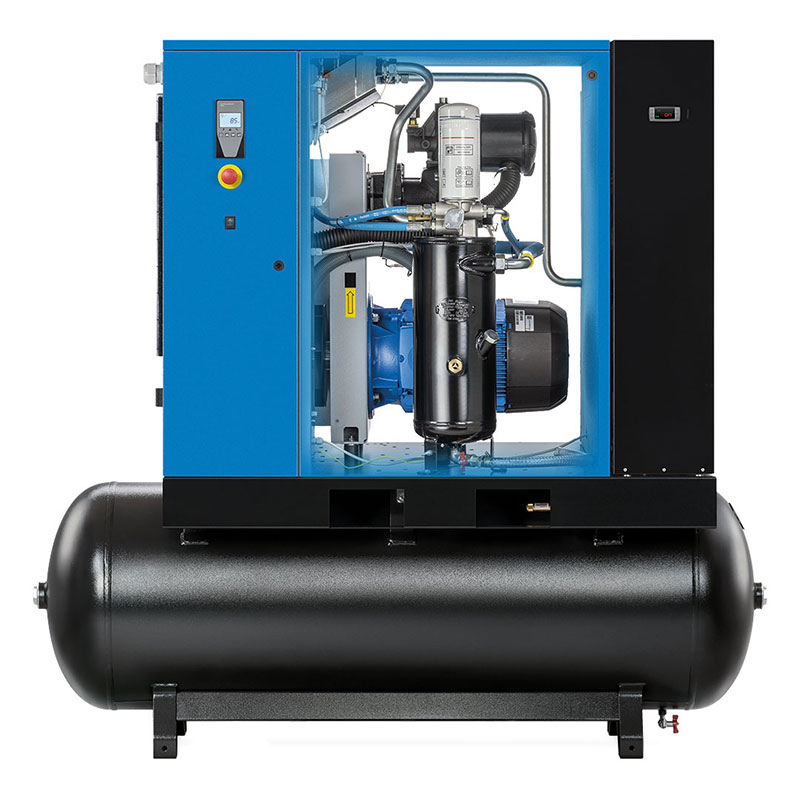

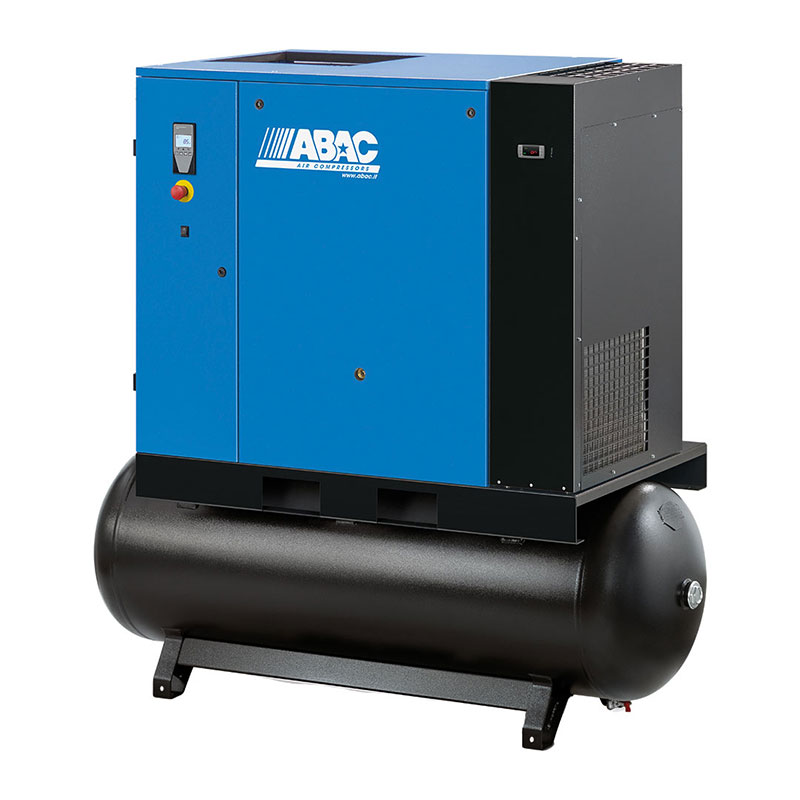

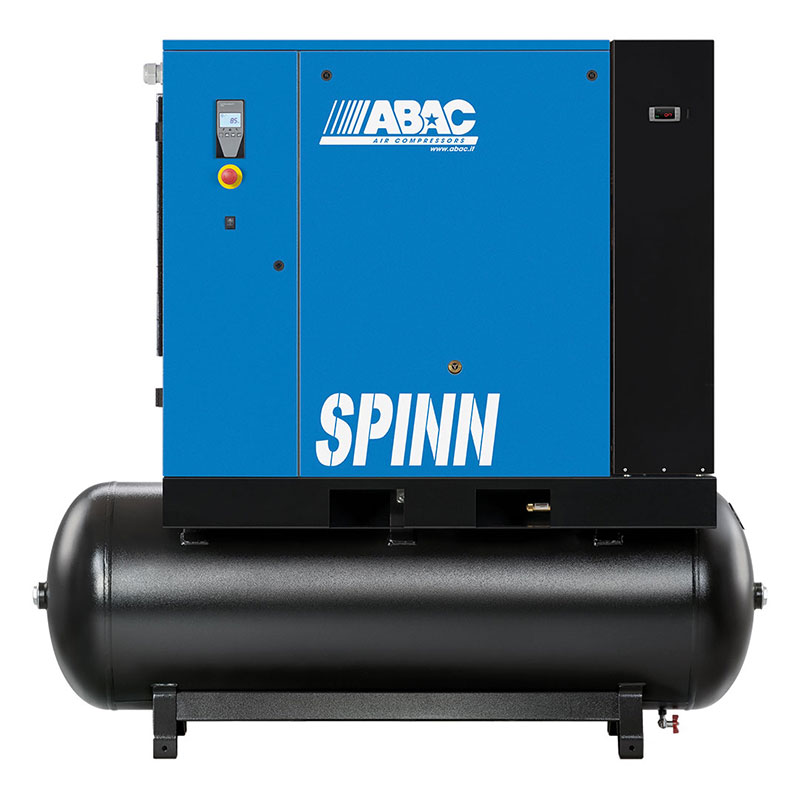

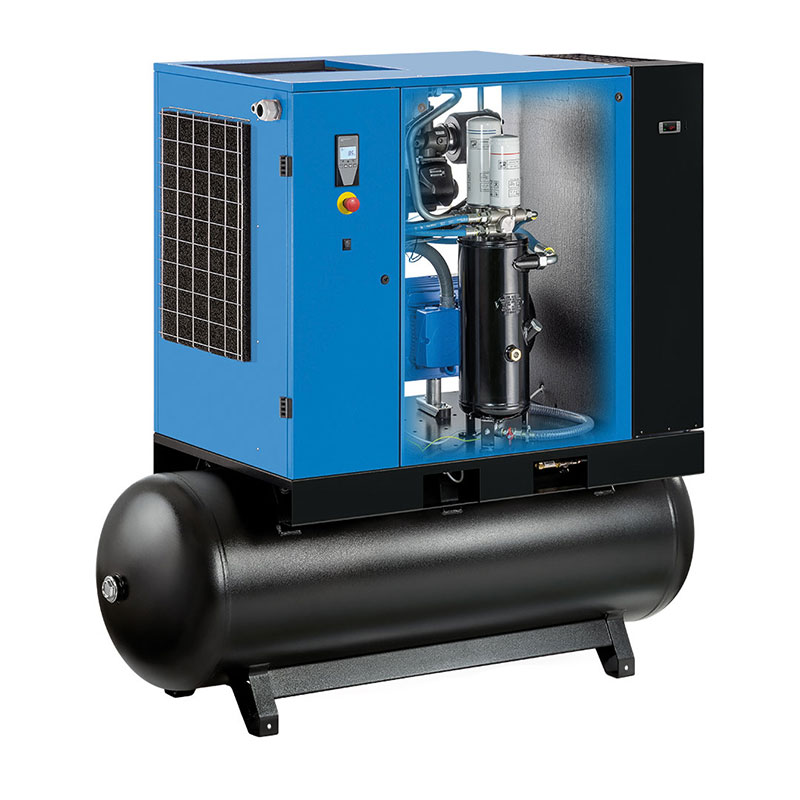

ABAC SPINN 15-22 kW - 400V Compressors with 500 L Tank

The ABAC SPINN 15-22 kW Professional Compressors are a series of Lubricated Screw Compressors equipped with an Integrated Dryer and 500L Tank capable of reaching up to 22 kW of power .

A great feature that makes these Screw Compressors incredible is their extraordinary silence at a noise level of only 67/69 db(A), comparable to the noise emitted by an air conditioning system.

Furthermore, ABAC Spinn compressors are very compact and easy to install, features that allow you to move the lubricated screw compressor wherever needed, saving on installation and piping costs, especially if you decide to equip your compressor with a dryer.

The Abac SPINN line of compressors, ranging from 15 to 22 kW, is available not only in the 10 bar version but also in the 8 bar version upon request. A tankless version is also available.

The ABAC Spinn 15-22 kW models with dryer and 500 L tank are available in the following models:

• 20 HP (15 kW) - 10 bar - model SPINN 15XE 10 400/50 TM500 CE
• 25 HP (18.5 kW) - 10 bar - model SPINN 18E 10 400/50 TM500 CE
• 30 HP (22 kW) - 10 bar - model SPINN 22E 10 400/50 TM500 CE

Also available in a tankless version.
You can also request the 8 bar version instead of the 10 bar one by contacting us directly by email or phone.

Technical Specifications

The 15-22kW Lubricated Screw Spinner models are characterized by a voltage of 400V.
Going into detail, the 20 HP Spinn 15X E models are characterised by a maximum of 2215 L/min of air output , 15 kW power and noise levels of just 67 db(A) .

The 25 HP Spinn 18 E model has a maximum flow rate of 2590 L/min , a power of 18.5 kW and a noise level of 69 db(A).

Finally, the 30 HP Spinn 22 E model features 3090 L/min of air output , a power of 22 kW and a noise level of 70 db(A).

Functional Specifications

Spinn 15-22kW Lubricated Screw Compressors feature an easy-to-use control panel that displays all the information needed to operate the compressor at a glance. Furthermore, ABAC professional compressors feature remote start and stop and an easy-to-read indicator that displays operating hours and alerts you to any faults or maintenance needs.

The compact dimensions make the ABAC Spinn 15-22 kW compressors the ideal solution for saving space and installation costs.
