KTC Compack 5
Screw Compressor
Industrial 650 L/min

KTC Compack 5 - Industrial Screw Compressor 650 L/min

The KTC Compack 5 industrial screw compressor is designed to ensure high performance in continuous professional applications. Equipped with a 7.5 HP three-phase motor and an air flow rate of 650 L/min , it is the ideal solution for workshops, production plants and laboratories that require reliable, powerful and continuous compressed air. Thanks to its compact structure and K-tronic 5 technology for advanced electronic control, it offers maximum efficiency in a small space. Its low noise level of only 69 dB(A) also makes it perfect for indoor installations.

All KTC compressors are entirely designed and built in Italy , with high quality components and Made in Italy workmanship.

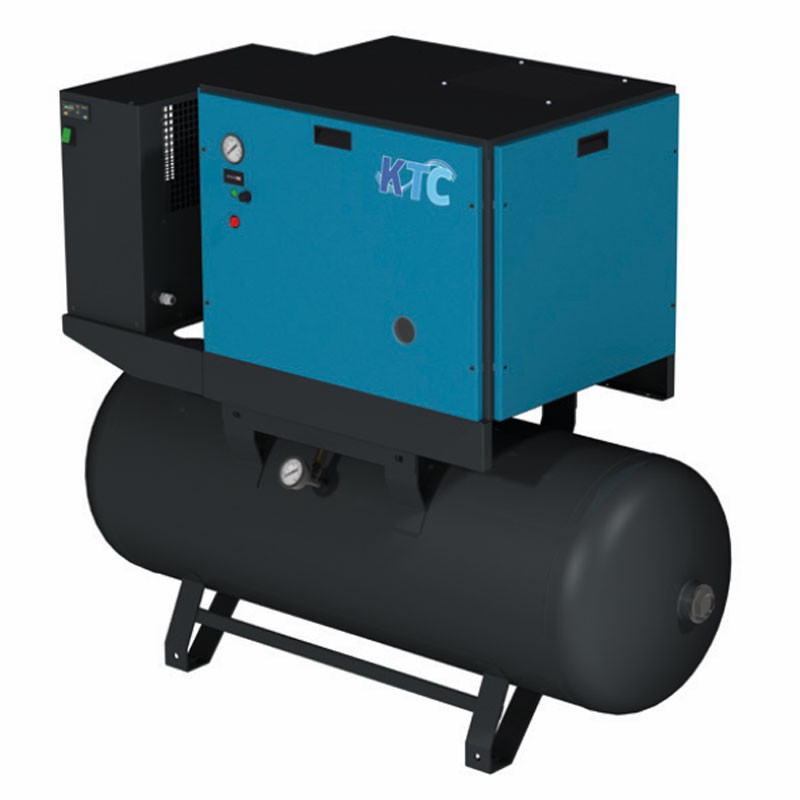

Catalog image. Product appearance may differ, but specifications are accurate and up to date.

Available models

• Compack Easy 5 / 270 cod. 1840423303 - 270 L tank, without dryer
• Compack Easy 5 / 270 E cod. 1840423304 - 270 L tank, with dryer
• Compack Easy 5 cod. 1840423301 - without tank, without dryer
• Compack Easy 5 E cod. 1840423302 - without tank, with dryer

Technical specifications

KTC Compack 5 is equipped with a 400V three-phase electric motor, develops a power of 5 kW (7.5 HP) and delivers an operating pressure of 10 bar , with an effective flow rate of 650 L/min . The pumping unit is of the Adam 60 V60 L type, with a high-performance steel and aluminum rotary screw .

The compressor is available in a tankless configuration or with a 270 L tank , with the option of integrating a refrigeration dryer , to ensure superior quality compressed air. The connection system is standardized with a 1/2'' Gas connection . With a noise level of only 69 dB(A) , it is one of the quietest industrial compressors in its category .

Functional specifications

K-Tronic electronic control

The integrated K-Tronic system allows automatic control of the compressor loading and unloading cycles, adapting operation to the actual air demand. This reduces energy consumption , optimizes performance and protects the airend from unnecessary stress, ensuring greater durability and lower operating costs.

Screw compressor with oil temperature monitoring

Thanks to the K-tronic 5 system, Compack 5 precisely manages the oil temperature , avoiding overheating and ensuring optimal working conditions even in intensive environments. Automatic thermal monitoring is essential to preserve the efficiency of the rotary screw unit and to extend the life of the internal components.

Automatic work time management

The integrated system counts the total working hours of the machine, facilitating the planning of preventive maintenance interventions. This allows the user to avoid unscheduled stops and to maintain constant compressor performance.

Integrated alarm system

In case of malfunctions or parameters outside the limits, the compressor activates visual and audible alarms via the electronic control panel. The automatic diagnostic system helps to quickly identify any anomalies, reducing downtime and improving the safety of the system.

Compact structure for small spaces

The Compack series design is designed to offer industrial performance in compact dimensions . All the main components are integrated into a single module, reducing the footprint and making the compressor perfect for installations in workshops and production environments with limited space .

Easy access and quick maintenance

This KTC compressor is equipped with an opening front door that allows immediate access to internal components for inspection or replacement. This makes maintenance easier, faster and safer , drastically reducing machine downtime.

Silent screw compressor

With a noise level of just 69 dB(A) , KTC Compack 5 is one of the quietest industrial compressors in its class. It can be installed directly in the workshop, near operating stations, without disturbing the working environment, improving the comfort and productivity of the staff.

Why choose a screw compressor

High performance

Screw compressors, such as the Compack 5 from KTC, offer continuous air production without the interruptions typical of piston models. The volumetric efficiency of the airend reduces idle cycles and increases productivity.

Excellent air quality

The screw system ensures a stable, pulsation-free airflow , ideal for tools that require constant pressure . This improves precision and reduces the risk of malfunctions.

Great Reliability

The reduction of mechanical stress, the quality of the Vanguard engine and the construction simplicity of the airend ensure long operating life , reduced maintenance and maximum machine availability even in critical conditions.

Characteristics

• Professional screw compressor
• 400V three-phase power supply
• Power 7.5 HP - 5 kW
• Working pressure 10 bar
• Optional 270 L air tank
• Flow rate 650 L/min
• Optional dryer
• Adam 60/E V60 L screw group
• High technical quality Made in Italy
