Abac Genesis IE
Inverter Compressor
with Dryer

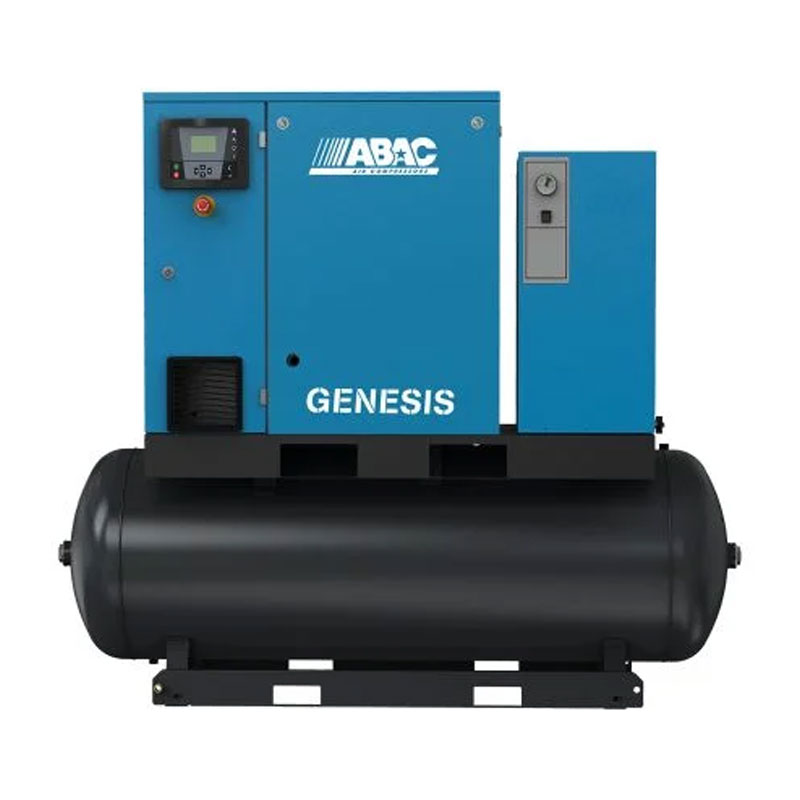

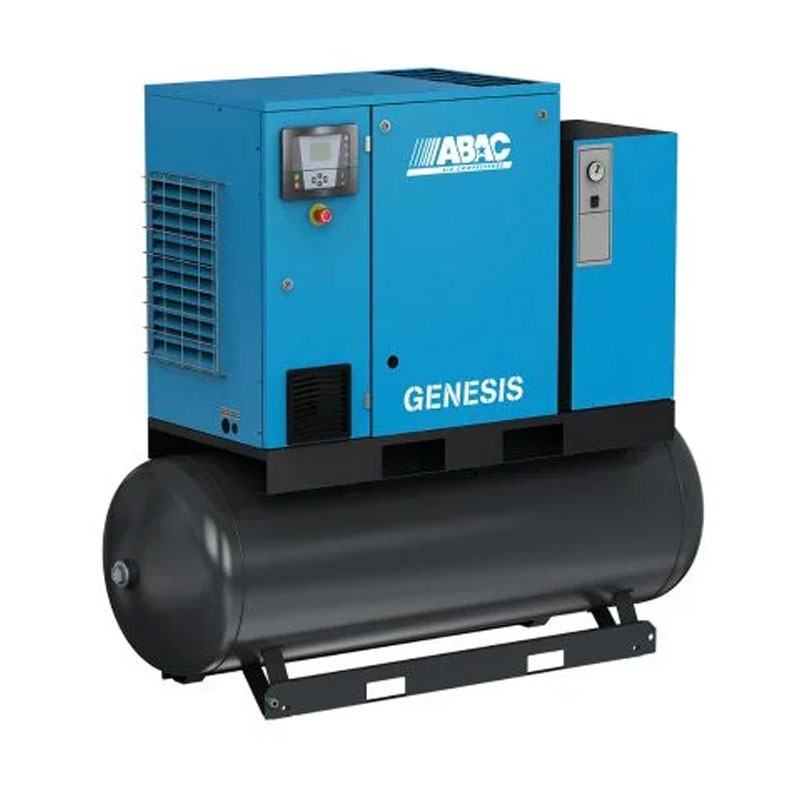

Abac Genesis IE - Variable Speed Inverter Screw Compressor with Dryer

ABAC 's Genesis IE range represents the evolution of inverter screw compressors for industrial use , offering an extremely compact, efficient and ready-to-use all-in-one solution . These compressors are designed to optimize space within systems , allowing for a significant reduction in overall dimensions and easier installation. This innovative approach not only saves space, but also optimizes management and maintenance costs . This line is also equipped with a dryer which allows for perfectly dehumidified air.

Equipped with a highly efficient vector frequency converter , ABAC Genesis I Inverter Compressors are able to offer the following advantages :

• Maintaining constant operating pressure ;
• Programming of the pressure desired by the user, variable from 4 to 13 bar;
• Energy savings thanks to the constant adjustment of the flow rate delivered based on actual air consumption;
• Smooth and progressive machine start-up phases that guarantee low electrical absorption ;
• Variable flow rate range from 25% to 100% of maximum capacity;

ABAC GENESIS IE compressors are designed to provide clean, dry, top-quality compressed air that meets the most demanding industrial standards. The reliability of ABAC components and screw technology ensure consistent performance , reduced noise , and increased energy efficiency .
The Genesis line is ideal for companies looking for a compact and professional industrial compressor , capable of offering the maximum in terms of quality, productivity and savings.

Genesis Compressor: A Complete Machine

The Abac Genesis IE compressor is a complete machine designed for continuous industrial use . Abac Genesis is composed of:

• Compressor
• Reservoir
• Cyclone separator
• Refrigeration dryer
• Condensate drain
• Post filter

For a complete workstation .

How an Inverter Compressor Works

A variable-speed compressor like the Abac Genesis I has lower peaks and a more consistent air production profile. The variable-speed compressor's curve is different because it adjusts the airend's speed based on air demand, thus producing only the amount needed at that specific moment . This is achieved by a pressure sensor that reports the pressure value to the controller , which in turn sends a signal to the inverter with information on the situation. The inverter serves to adjust the motor speed based on the pressure settings.

Functional specifications

Engine speed reduced according to consumption

The Abac Genesis I is an inverter compressor that reduces motor speed based on compressed air consumption . Since air consumption within the network is not constant over time, significant energy savings are possible compared to other Abac compressors that do not use this function.

Constant air pressure

The absence of pressure fluctuations between loaded and idle operation eliminates energy waste. Genesis compressors have constant pressure for any value between 4 and 13 bar .

High efficiency engine

The use of IE3 motors means that the Abac Genesis I have greater energy efficiency .

No electromagnetic interference

The use of the Abac Genesis compressor does not produce any type of interference towards or of the electrical network .

Gradual start-up

The peak current absorption required for starting is reduced , protecting the motor and reducing the energy consumption of the Abac compressor.

Plug & play maintenance

All the elements requiring maintenance ( belts , oil filters and air filters ) and the external oil level indicator have been designed to allow for quick and easy maintenance.
A traditional compressed air system typically requires at least eight different components, with a total footprint that isn't always available. Today, with the new GENESIS, the space required is only about 1 m² . It's easy to handle and install; simply connect it to the electrical and pneumatic networks for immediate access to top-quality compressed air.

Control Panel

Abac Genesis features intuitive control panels with easy-to-read indicators to guide operations. It features a remote control interface ( up to 6 compressors ), scheduled routine maintenance , a fault log , and other functions.

Silence

With a reduced noise level, GENESIS compressors can be positioned directly on the workplace, close to the point of use, without creating problems for personnel and thus allowing for reductions in installation costs.

High Air Quality

The new GENESIS was created to provide clean compressed air in full compliance with the latest environmental regulations . This means that GENESIS operates at a lower operating temperature and in a cleaner way than other compressors. The new GENESIS is in fact equipped with a highly efficient air treatment system that integrates a refrigerant dryer with eco-friendly R134a gas , a ceramic pre-filter , an oil separator filter and finally a timer-controlled electronic charger for condensate evacuation. All this makes the compressed air obtained with GENESIS exceptionally clean and dry, suitable for hundreds of sophisticated applications in the industrial field.

Characteristics

• Variable speed industrial compressor
• For intensive and continuous use
• Reduced noise level
• Ease of use and maintenance
• Ready for installation immediately
• High efficiency
• Constant air pressure
• Energy saving
• Complete workstation
