Fiorentini ICM 60
Professional Floor Cleaner 15000 m²/h
15000 m²/h
Diesel/Petrol/Gas/Battery
Hydraulic Traction

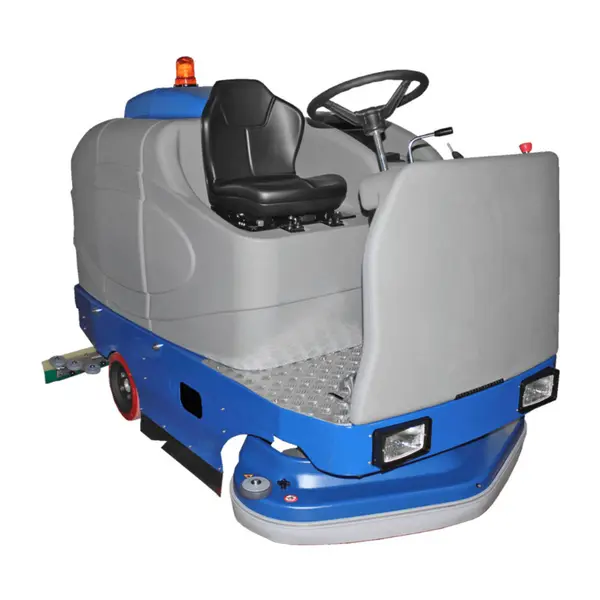

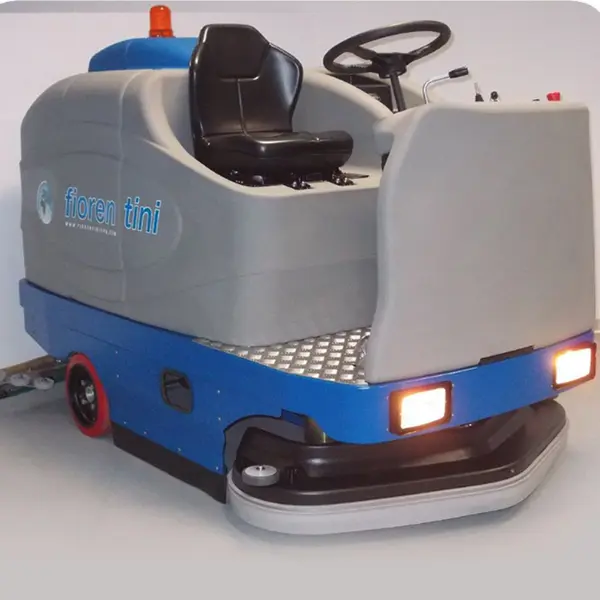

Fiorentini ICM 60 - Professional Floor Cleaner for Professional and Industrial Environments
Fiorentini ICM 60 is a professional ride-on floor cleaner designed to offer excellent performance in large and complex environments. With a maximum speed of 8 km/h and a solution and recovery tank capacity of 260 L each , this machine guarantees prolonged operations without frequent interruptions for refueling or emptying. The noise level, up to 85 dB , allows you to work in environments where noise control is essential.
Available Models
- I 60 TDB - diesel floor cleaner
- The 60 TPB - petrol floor cleaner
- I 60 TP/GB - gas/petrol floor cleaner
- I 60 TEB - 36V battery-powered floor cleaner
Built with robust materials and designed for long life, the ICM 60 stands out for its great maneuverability and agility , making it ideal for cleaning very large surfaces such as shopping centers , companies , airports and industrial warehouses .
It is particularly effective in removing stubborn dirt thanks to its power and operational precision. The machine is available in different configurations to meet specific needs: diesel, petrol, gas/petrol or completely battery-powered versions, thus ensuring versatility and adaptability based on the context of use.
Characteristics
- Diesel/petrol/LPG/battery floor cleaner 36V
- Battery life up to 8 hours (battery version)
- Working width 150 cm
- Hourly output 15000 m²/h
- Detergent tank 260 L
- Recovery tank 260 L
- Waste tank 15 L (Optional)
- Noise level up to 85 dB
- For professional and industrial environments
- The battery powered version includes battery and charger
Technical Data
Models | The 60 TDB | The 60 TPB | The 60 TP/GB | The 60 TEB |
Power Supply | Diesel | Gas | Gas/Petrol | 36V battery |
Working Width | 150 cm | 150 cm | 150 cm | 150 cm |
Hourly Yield | 15000 m²/h | 15000 m²/h | 15000 m²/h | 18000 m²/h |
Advance Speed | 0÷6 km/h | 0÷8 km/h | 0÷8 km/h | 0÷8 km/h |
Solution Tank | 260 L | 260 L | 260 L | 260 L |
Recovery Tank | 260 L | 260 L | 260 L | 260 L |
Waste Container | 15 L | 15 L | 15 L | 15 L |
Brush Pressure | 0÷150 kg | 0÷150 kg | 0÷150 kg | 0÷150 kg |
Brush Motor | 3 x OR 80 C Hydraulic | 3 x OR 80 C Hydraulic | 3 x OR 80 C Hydraulic | 3 x 750W |
Depression Aspiration | 166 mbar | 166 mbar | 166 mbar | 166 mbar |

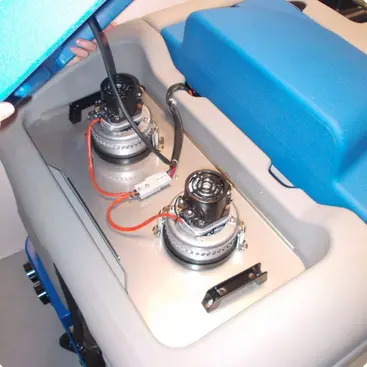

Aspiration Engine | 2 x 850W | 2 x 850W | 2 x 850W | 2 x 850W |
Autonomy | - | - | - | 8 h |
Max slope | 13% | 13% | 13% | 13% |
Brush Diameter | 3 x Ø 460 mm | 3 x Ø 460 mm | 3 x Ø 460 mm | 3 x Ø 460 mm |
Floor Squeegee Width | 1470 mm | 1470 mm | 1470 mm | 1470 mm |
Dimensions | 210 x 130 x 140 cm | 210 x 130 x 140 cm | 210 x 130 x 140 cm | 210 x 130 x 140 cm |
Battery Weight | - | - | - | 650 kg |
Machine Weight with Batteries | 850 kg | 850 kg | 850 kg | 500 kg |
Technical Data
Models | The 60 TDB | The 60 TPB | The 60 TP/GB | The 60 TEB |
Power Supply | Diesel | Gas | Gas/Petrol | 36V battery |
Working Width | 150 cm | 150 cm | 150 cm | 150 cm |
Hourly Yield | 15000 m²/h | 15000 m²/h | 15000 m²/h | 18000 m²/h |
Advance Speed | 0÷6 km/h | 0÷8 km/h | 0÷8 km/h | 0÷8 km/h |
Solution Tank | 260 L | 260 L | 260 L | 260 L |
Recovery Tank | 260 L | 260 L | 260 L | 260 L |
Waste Container | 15 L | 15 L | 15 L | 15 L |
Brush Pressure | 0÷150 kg | 0÷150 kg | 0÷150 kg | 0÷150 kg |
Brush Motor | 3 x OR 80 C Hydraulic | 3 x OR 80 C Hydraulic | 3 x OR 80 C Hydraulic | 3 x 750W |
Depression Aspiration | 166 mbar | 166 mbar | 166 mbar | 166 mbar |
Aspiration Engine | 2 x 850W | 2 x 850W | 2 x 850W | 2 x 850W |
Autonomy | - | - | - | 8 h |
Max slope | 13% | 13% | 13% | 13% |
Brush Diameter | 3 x Ø 460 mm | 3 x Ø 460 mm | 3 x Ø 460 mm | 3 x Ø 460 mm |
Floor Squeegee Width | 1470 mm | 1470 mm | 1470 mm | 1470 mm |
Dimensions | 210 x 130 x 140 cm | 210 x 130 x 140 cm | 210 x 130 x 140 cm | 210 x 130 x 140 cm |
Battery Weight | - | - | - | 650 kg |
Machine Weight with Batteries | 850 kg | 850 kg | 850 kg | 500 kg |
On Request Accessories
