Speroni RV 3 RV 4 RV 5

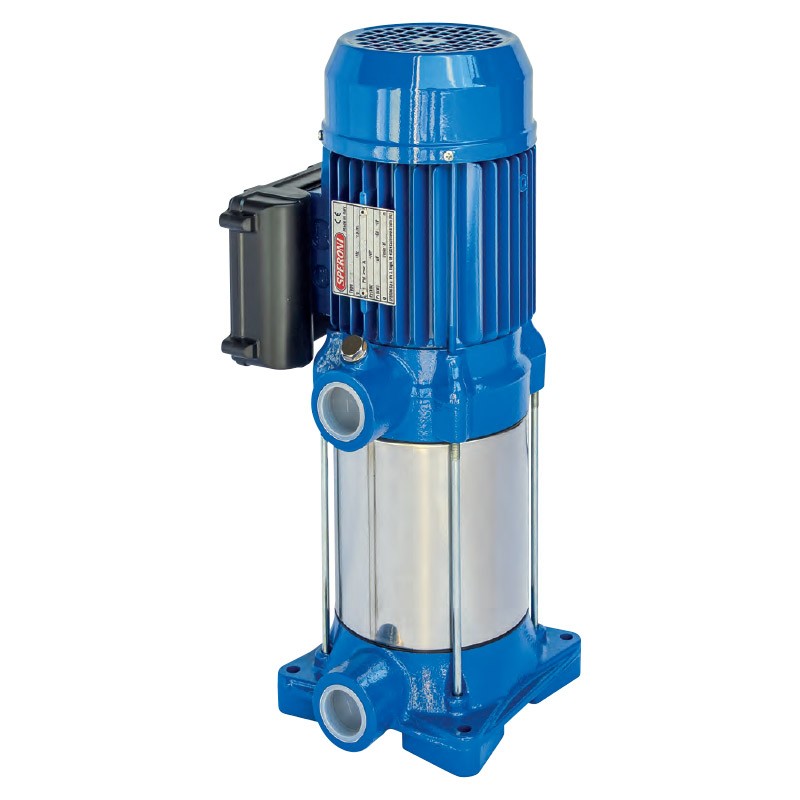

Vertical Three-Phase Electric Pump
€279.00
€228.69 tax excl.
Warranty 2 years
14 days to change your mind
Speroni RV - Three-phase Multistage Vertical Axis Electric Pump
Speroni RV Trifase vertical axis multistage centrifugal electric pumps are an excellent solution for various pumping needs, thanks to their ability to generate considerable pressure and, at the same time, a high water flow rate , all with reduced energy consumption. These Speroni electric pumps represent a versatile choice, suitable for both civil and industrial applications in a wide range of sectors.
Speroni RV multistage centrifugal electric pumps are versatile electric pumps , suitable for a variety of uses, including washing systems , irrigation , agriculture , sports facilities and domestic use . Their flexibility also makes them perfect for application in pressurization systems, where it is essential to ensure effective water distribution.
The Speroni RV 3, RV 4 and RV 5 pumps are three-phase vertical electric pumps , suitable for industrial use .
Usage limits
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41
- Max liquid temperature: 35°C (for other uses)
- Ambient temperature up to 40°C
- Manometric suction height up to 7 m
- Continuous service
- Minimum efficiency index (BEP) MEI ≥ 0.4
Motor
- Single phase 230V-50Hz
- Three-phase 230/400V-50Hz
- 2-pole induction electric motor (n = 2850 min-1)
- Insulation Class F
- IP 55 protection
Protection
- Pump body: Cast iron
- Engine mount: Cast iron
- Impeller: Noryl
- Diffuser: Noryl
- Pump jacket Stainless steel AISI 304
- Crankshaft Stainless Steel AISI 304
- Mechanical seals Ceramic/Graphite/NBR
Available models
Selectable from drop-down menu:
- RV 3 - code 102199050
- RV 4 - code 102199063
- RV 5 - code 102199073
Hydraulic Curve
Product Dimensions
Technical Data
| Model | RV 3 | RV 4 | RV 5 |
| Code | 102199050 | 102199063 | 102199073 |
| Power Supply | 400V | 400V | 400V |
| Amperes | 2 A | 2.2 A | 3.2 A |
| Nominal Power | 0.8 HP - 0.6 kW | 1 HP - 0.7 kW | 1.5 HP - 1.1 kW |
| Power Absorbed | 0.85 kW | 1kW | 1.4 kW |
| Suction Diameter | 1'' | 1'' | 1'' |
| Delivery Diameter | 1'' | 1'' | 1'' |
| Prevalence | from 13 to 35 m | from 18 to 46 m | from 24 to 61 m |
| Liquid Flow Rate | 0÷90 L/min | 0÷90 L/min | 0÷90 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F | IP 55 - F |
| Impellers | 3 | 4 | 5 |
| Dimensions | 37.5 x 17 x 15.4 cm | 39.7 x 20 x 15.4 cm | 42.1 x 21.8 x 15.4 cm |
| Weight | 12.7 kg | 14.2 kg | 15.1 kg |
Technical Data
| Model | RV 3 | RV 4 | RV 5 |
| Code | 102199050 | 102199063 | 102199073 |
| Power Supply | 400V | 400V | 400V |
| Amperes | 2 A | 2.2 A | 3.2 A |
| Nominal Power | 0.8 HP - 0.6 kW | 1 HP - 0.7 kW | 1.5 HP - 1.1 kW |
| Power Absorbed | 0.85 kW | 1kW | 1.4 kW |
| Suction Diameter | 1'' | 1'' | 1'' |
| Delivery Diameter | 1'' | 1'' | 1'' |
| Prevalence | from 13 to 35 m | from 18 to 46 m | from 24 to 61 m |
| Liquid Flow Rate | 0÷90 L/min | 0÷90 L/min | 0÷90 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F | IP 55 - F |
| Impellers | 3 | 4 | 5 |
| Dimensions | 37.5 x 17 x 15.4 cm | 39.7 x 20 x 15.4 cm | 42.1 x 21.8 x 15.4 cm |
| Weight | 12.7 kg | 14.2 kg | 15.1 kg |
