Speroni Domotech 1000
Pressurization System
Electronic with Inverter

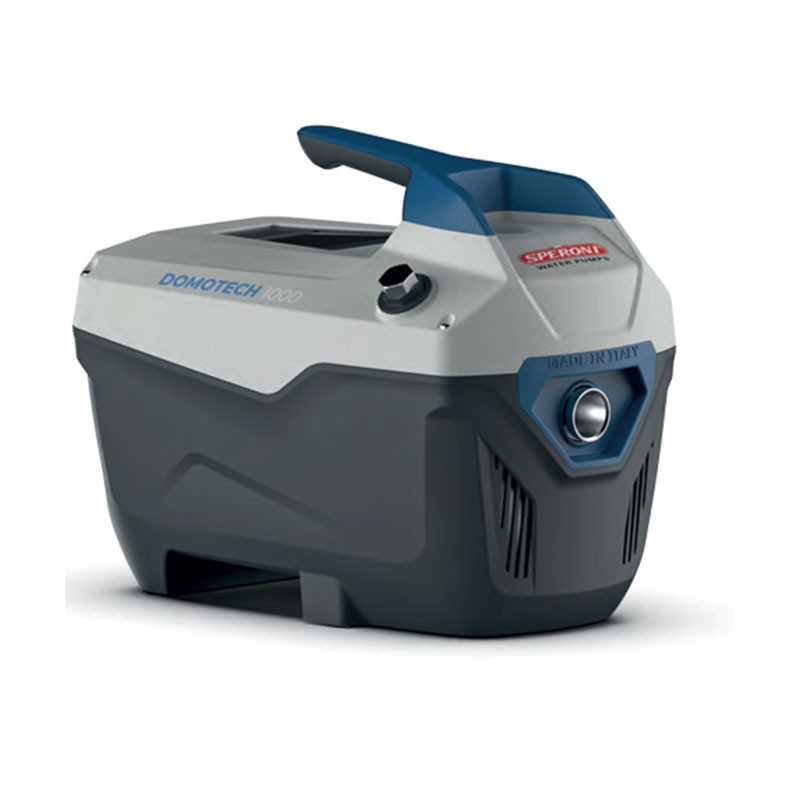

Speroni Domotech 1000 - Electronic Pressurization System with Inverter

Speroni Domotech 1000 is an Automatic Pressurization System with Inverter consisting of a high efficiency multi-impeller centrifugal pump , inverter, pressure sensors, expansion vessel and non-return valve and designed to maintain a constant pressure level in the system depending on the water demand.

Specially designed to meet the irrigation needs in domestic and civil applications, this electronic pressurization system has silent operation with high energy savings .

Limitations of use

• Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
• Max. temperature liquid: 35°C (for other uses)
• Ambient temperature up to 40°C
• Maximum working pressure 8 bar (800 kPa)
• Manometric suction height up to 6 m
• Continuous service

Motor

• Three-phase (with single-phase inverter power supply 230V-50Hz)
• 2-pole induction electric motor (n = 2850 min-1)
• Class F insulation
• IP 44 protection
• Protection against dry running

Materials

• Fairing: Polypropylene
• Pump body: AISI 304 stainless steel
• Engine support: Aluminium
• Impeller: Noryl
• Diffuser: Noryl
• Seal flange: AISI 304 stainless steel
• Crankshaft: AISI 304 stainless steel
• Mechanical seals: Ceramic/Graphite/NBR

Hydraulic curve

Product Dimensions
