Speroni CX 65
Electric Centrifugal Pumps
230/400V - 10÷25 HP
2400 L/min - Head 52 m
Ø 3" - 2" 1/2
€1,479.00
€1,212.30 tax excl.

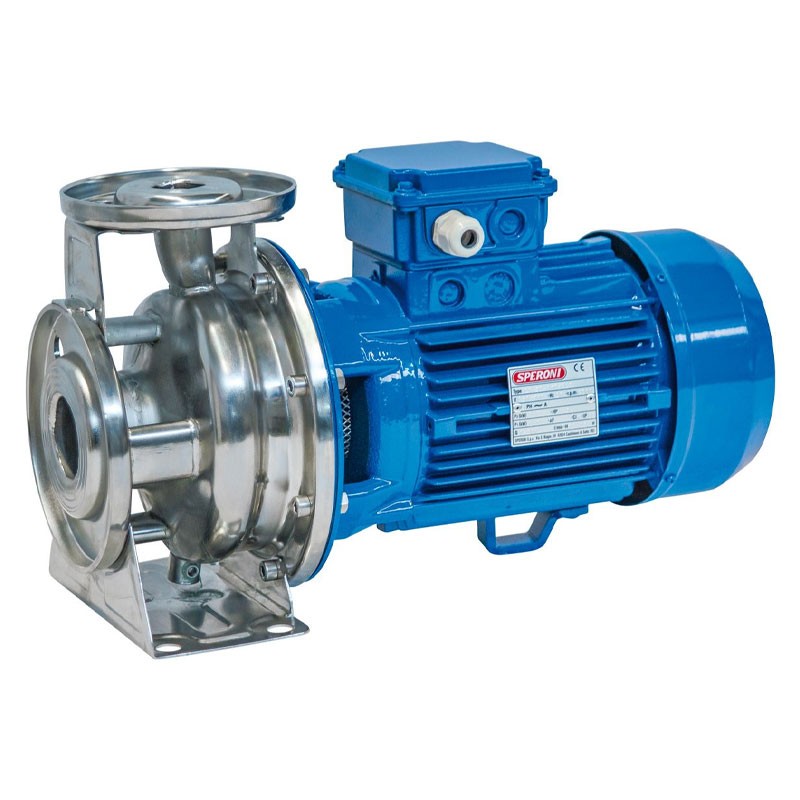

Speroni CX 65 - Monobloc Stainless Steel Centrifugal Electric Pumps
Speroni CX 65 electric pumps represent a high-quality professional solution for pumping clean water . These electric pumps are single-impeller, single-block centrifugal pumps , made entirely of stainless steel. Specifically designed for pumping clean water and non-chemically and mechanically aggressive liquids , these pumps are versatile and suitable for a wide range of applications, in the civil, agricultural, industrial and plant engineering sectors.
The Speroni CX electric pumps are equipped with a 2-pole three-phase induction electric motor and are available in different power ratings selectable from the drop-down menu. The Speroni CX 65 range has a delivery diameter of Ø 65 mm and a suction diameter of Ø 80 mm .
Maximum head 52 m with water flow rate 2400 L/min max with manometric suction height up to 7 m .
These Speroni CX 65 electric pumps have a three-phase power supply and a 230/400V-50 Hz connection in the model with a nominal power of 7.5 kW or a 400/690V-50Hz connection in models with a nominal power greater than 7.5 kW.
Functional specifications
Speroni CX 65 electric pumps can be installed in any position (except with the suction port facing upward), making them easy to use for a variety of applications. Furthermore, these monobloc centrifugal electric pumps have a design that allows the motor, complete with rotating pump parts, to be removed and subsequently reassembled without removing the pump body or the connected pipes.
Limits of use
- Liquid temperature up to 35°C
(for domestic use according to EN 60335-2-41)
Max. liquid temperature: 90°C (for other uses) - Ambient temperature up to 40°C
- Manometric suction height up to 7 m.
- Continuous service
Materials
- Pump course: AISI 304 stainless steel
- AISI 304 Stainless Steel Seal Flange
- Impeller: AISI 304 stainless steel
- Crankshaft: AISI 304 stainless steel
- Mechanical seals: Ceramic / Graphite / NBR
Motor
- Three-phase 230/400V-50Hz P2 ≤ 7.5 kW
- Three-phase 400/690V-50Hz P2 > 7.5 kW
- 2-pole induction electric motor (n = 2850 min-1)
- Class F insulation
- IP 55 protection
Areas of use
- Water supplies
- Sprinkler or flow irrigation
- Autoclave feeds and pressure increases
- Heating and air conditioning
- Any other use involving the transfer of clean liquids in general
- Civilian camp
- Agricultural field
- Industrial field
- Plant engineering field in general
Technical Data
| Model | CX 65-125/7.5 | CX 65-160/11 | CX 65-160/15 | CX 65-200/18.5 |
| Food | 230V / 400V | 400V / 690V | 400V / 690V | 400V / 690V |
| Horses | 10 HP | 15 HP | 20 HP | 25 HP |
| Nominal power | 7.5 kW | 11 kW | 15 kW | 18.5 kW |
| Engine | IE3 | IE2 | IE2 | IE2 |
| Absorbed power | 8.3 kW | 12.7 kW | 16.5 kW | 21 kW |
| Suction Diameter | 3'' | 3'' | 3'' | 3'' |
| Diameter Mandatory | 2'' 1/2 | 2'' 1/2 | 2'' 1/2 | 2'' 1/2 |
| Prevalence | 26.5 m | 35 m | 42.5 m | 52 m |
| Scope | 2400 L/min | 2400 L/min | 2400 L/min | 2400 L/min |
| Max. Liquid Temp. | 35 °C | 35 °C | 35 °C | 35 °C |
| Max. Ambient Temp. | 40 °C | 40 °C | 40 °C | 40 °C |
| Insulation class | F | F | F | F |
| Protection level | IP55 | IP55 | IP55 | IP55 |
| Pump Body Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Dimensions | 34 x 62 x 48.5 cm | 37.2 x 80.5 x 55 cm | 37.2 x 80.5 x 55 cm | 37.2 x 80.5 x 55 cm |
| Peso | 63.7 kg | 103.3 kg | 112.8 kg | 129.8 kg |
