Speroni CS 65 Three-Phase IE3
Clean Water Electric Pump
Single-Impulse Centrifugal

MPN: 101803420

Seleziona Modello
description Quotation Request
Private Negotiation
Private Negotiation
Personalised Quotations
Tested Product
Tested Product
Ready to Use
Need Help?
Need Help?
Ask The Expert
reso facile Warranty 2 years
reso facile 14 days to change your mind
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer

Made in Italy

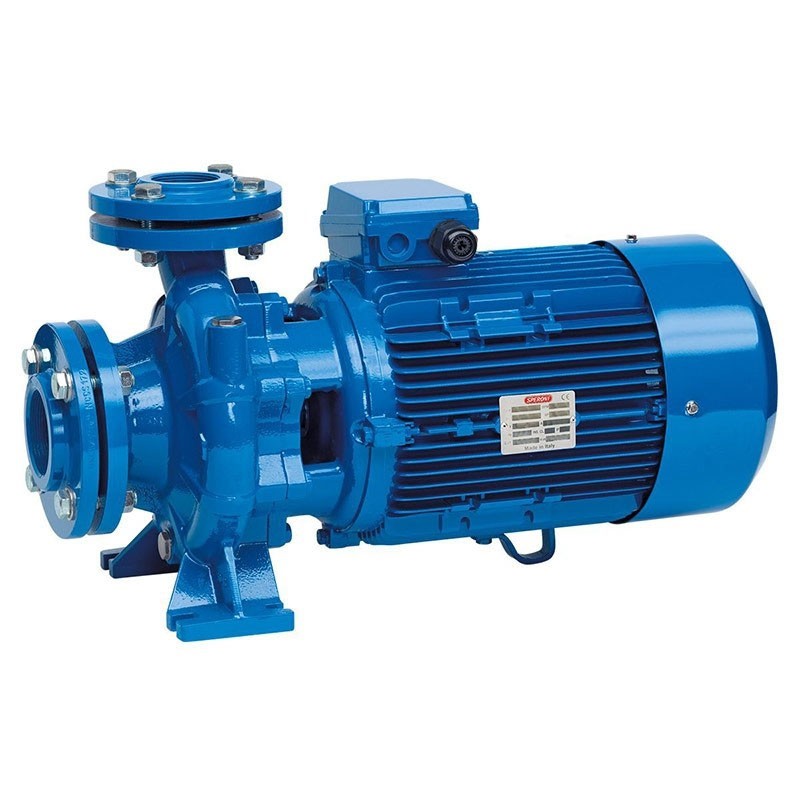

Speroni CS 65 Professional Centrifugal Electric Pumps

The Speroni CS 65 professional electric pumps are a series of high-quality, professional, monobloc, single-impeller centrifugal electric pumps. These high-performance electric pumps feature a pump body connected directly to the motor via a bracket and are equipped with flanged suction and delivery ports (PN 10) and threaded counterflanges.

These machines are ideal for domestic, industrial, agricultural, civil, and plant engineering use and are suitable for a variety of applications, including water supply, sprinkler and surface irrigation, powering pressure tanks and boosting pressure, heating, air conditioning, and various applications involving the transfer of clean liquids . The Speroni CS 65 range can be used for pumping clean water or other chemically and mechanically non-aggressive or corrosive liquids. These electric pumps can be installed in all positions except the one with the suction port facing upwards.

This range of Speroni CS 65 pumps is equipped with a three-phase IE3 motor , a highly efficient electric motor that complies with the IE3 energy efficiency class according to the international standard IEC 60034-30 . An IE3 motor consumes less energy than an IE2 or IE1 motor to produce the same power.

Available models selectable from the drop-down menu:

  • CS 65-160 E - 5.5 kW - 7.5 HP - Three-phase 230/400V IE3
  • CS 65-160 D - 7.5 kW - 10 HP - Three-phase 230/400V IE3
  • CS 65-160 C - 9.2 kW - 12.5 HP - Three-phase 400/690V IE3
  • CS 65-160 B - 11 kW - 15 HP - Three-phase 400/690V IE3
  • CS 65-160 A - 15 kW - 20 HP - Three-phase 400/690V IE3
  • CS 65-200 C - 15 kW - 20 HP - Three-phase 400/690V IE3
  • CS 65-200 B - 18.5 kW - 25 HP - Three-phase 400/690V IE3
  • CS 65-200 A - 22.5 kW - 30 HP - Three-phase 400/690V IE3
  • CS 65-250 B - 30 kW - 40 HP - Three-phase 400/690V IE3
  • CS 65-250 A - 37 kW - 50 HP - Three-phase 400/690V IE3

Limits of use

  • Liquid temperature limit up to 35°C for domestic use (EN 60335-2-41)
  • Liquid temperature limit up to 90°C for other uses
  • Ambient temperature up to 40°C
  • Monometric suction height up to 7 m
  • Continuous service

Materials

  • Pump Course: Cast Iron
  • Engine mount: Cast iron
  • Impellers: Cast iron
  • Crankshaft: AISI 304 stainless steel
  • Mechanical seals: Ceramic / Graphite / NBR

Engines

  • Class F insulation
  • IP 55 protection
  • IE3 Three-phase motor 230/400V-50Hz P2 ≤ 7.5 kW
  • IE3 Three-phase motor 400/690V-50Hz P2 > 7.5 kW
  • 2-pole induction electric motor (n=2850 min-1)

Hydraulic Curve

Hydraulic curve for Speroni CS 65 professional electric pump

Details of available models

Speroni CS 65 single-impeller electric pump data sheet

Product Dimensions

dimensions of Speroni CS 65 centrifugal electric pumps

Technical Data

Model CS 65-160 E CS 65-160 D CS 65-160 C CS 65-160 B CS 65-160 A CS 65-200 C CS 65-200 B CS 65-200 A CS 65-250 B CS 65-250 A
Phase 230/400V 230/400V 400/690V 400/690V 400/690V 400/690V 400/690V 400/690V 400/690V 400/690V
Nominal power HP 7.5 HP 10 HP 12.5 HP 15 HP 20 HP 20 HP 25 HP 30 HP 40 HP 50 HP
Nominal power 5.5 kW 7.5 kW 9.2 kW 11 kW 15 kW 15 kW 18.5 kW 22.5 kW 30 kW 37 kW
Absorbed power 8 kW 10 kW 11.5 kW 13.5 kW 16 kW 20 kW 23 kW 27 kW 37 kW 46 kW
Liquid Flow Rate 2000 L/min 2200 L/min 2400 L/min 2400 L/min 2400 L/min 2400 L/min 2400 L/min 2400 L/min 2400 L/min 2600 L/min
Prevalence (H) 24.5 m 28.5 m 32 m 35.5 m 40 m 48.5 m 52.5 m 60.5 m 79 m 89.5 m
Suction Diameter 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm
Diameter Mandatory 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm
Max. Liquid Temp. 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C
Max. Ambient Temp. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Classe Protezione - Isolamento IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F
Pump Body Material Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa

Technical Data

Model CS 65-160 E CS 65-160 D CS 65-160 C CS 65-160 B CS 65-160 A CS 65-200 C CS 65-200 B CS 65-200 A CS 65-250 B CS 65-250 A
Phase 230/400V 230/400V 400/690V 400/690V 400/690V 400/690V 400/690V 400/690V 400/690V 400/690V
Nominal power HP 7.5 HP 10 HP 12.5 HP 15 HP 20 HP 20 HP 25 HP 30 HP 40 HP 50 HP
Nominal power 5.5 kW 7.5 kW 9.2 kW 11 kW 15 kW 15 kW 18.5 kW 22.5 kW 30 kW 37 kW
Absorbed power 8 kW 10 kW 11.5 kW 13.5 kW 16 kW 20 kW 23 kW 27 kW 37 kW 46 kW
Liquid Flow Rate 2000 L/min 2200 L/min 2400 L/min 2400 L/min 2400 L/min 2400 L/min 2400 L/min 2400 L/min 2400 L/min 2600 L/min
Prevalence (H) 24.5 m 28.5 m 32 m 35.5 m 40 m 48.5 m 52.5 m 60.5 m 79 m 89.5 m
Suction Diameter 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm 3'' - 80mm
Diameter Mandatory 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm 2'' 1/2 - 65 mm
Max. Liquid Temp. 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C
Max. Ambient Temp. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Classe Protezione - Isolamento IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F IP 55 - Class F
Pump Body Material Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa
