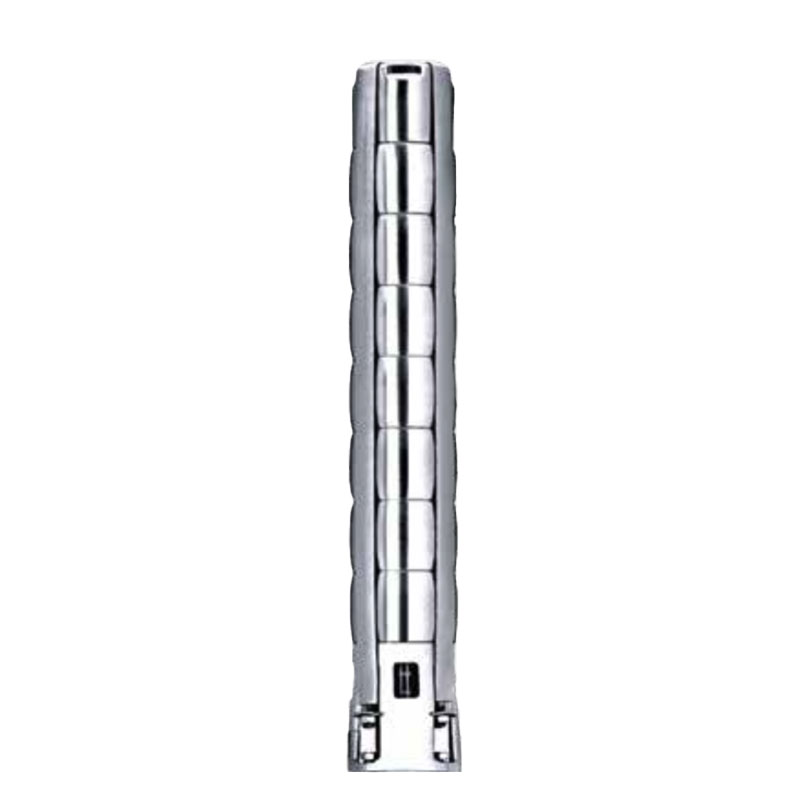

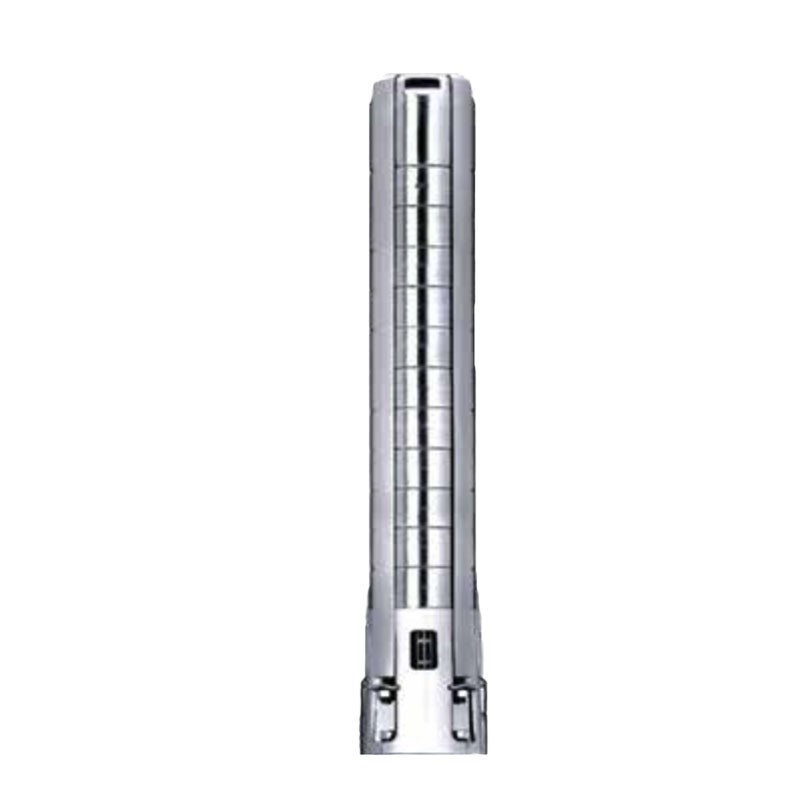

Leo 6XRS
Submersible Electric Pump
Three-phase from 10 to 25 HP

400V - 10÷25 HP
0÷400 L/min - Head 50÷352 m
Ø 2” 1/2

MPN: 1043209

Modello
description Quotation Request
Private Negotiation
Private Negotiation
Personalised Quotations
Tested Product
Tested Product
Ready to Use
Need Help?
Need Help?
Ask The Expert
reso facile Warranty 2 years
reso facile 14 days to change your mind
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer

Buying Guide

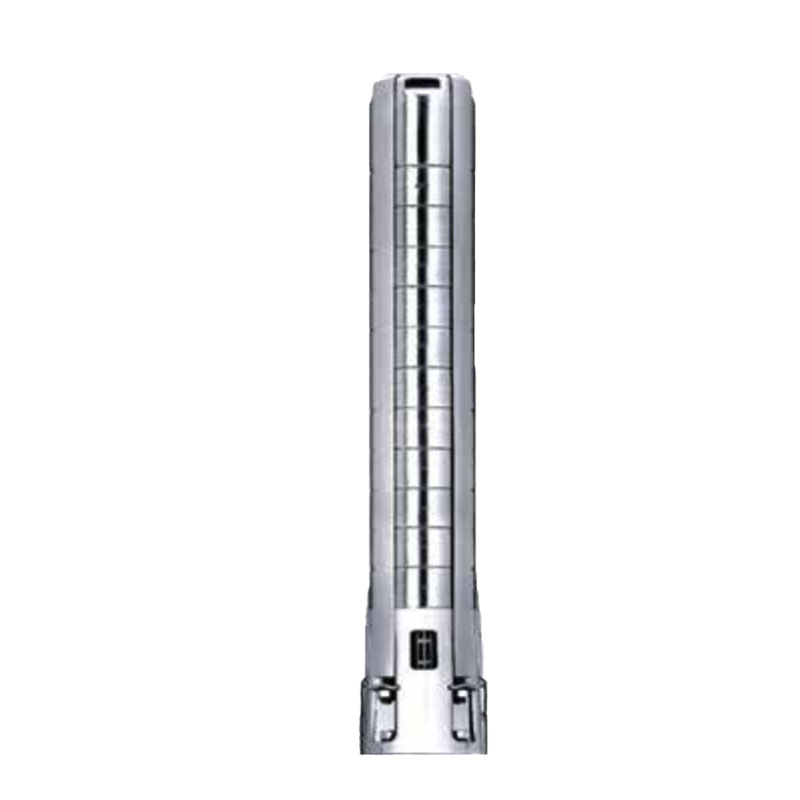

Leo 6XRS - Three-phase submersible electric pump

The 6XRS series submersible electric pumps represent an ideal solution for pumping clean water from deep wells , adapting perfectly to multiple contexts of use, including domestic, civil, agricultural and industrial applications. Designed to operate in demanding conditions, these pumps combine high efficiency with high and constant performance, ensuring maximum reliability even in permanent installations up to 100 meters deep.

Leo 6XRS features a three-phase rewindable motor , compliant with NEMA standards, and equipped with direct-on-line (DOL) starting, which ensures long operating life with reduced maintenance. Thanks to IP68 protection and class F insulation , these pumps are designed to withstand prolonged immersion and thermal stress. The maximum liquid temperature that can be handled is +50°C , with a maximum sand content of 0.25%, a sign of their robustness even in less than perfectly clear water.

Leo 6XRS - Three-phase submersible electric pumpLeo 6XRS

Available models

Selectable from drop-down menu:

  • 6XRS 17/13 of 10 HP - cod. 1043207
  • 6XRS 17/16 of 12.5 HP - cod. 1043209
  • 6XRS 17/20 of 15 HP - cod. 1043211
  • 6XRS 17/22 of 17.5 HP - cod. 1043213
  • 6XRS 17/26 of 20 HP - cod. 1043215
  • 6XRS 17/32 of 25 HP - cod. 1043218

Functional specifications

Submersible electric pump versatile use

The Leo 6XRS submersible pumps stand out for their extreme versatility of use. They are in fact ideal for both domestic water supply (artesian wells, irrigation systems) and for industrial and agricultural uses that require continuity of service and high flow rates.

Different power and flow configurations

Leo 6XRS, depending on the desired model, has a power of 10 to 25 HP , with a maximum flow rate of around 400 m3/h , while the variable head from pump to pump goes from a minimum of 50 m to a maximum of 352 m .

All Leo pumps in this range of submersible electric pumps have a 2" 1/2 outlet .

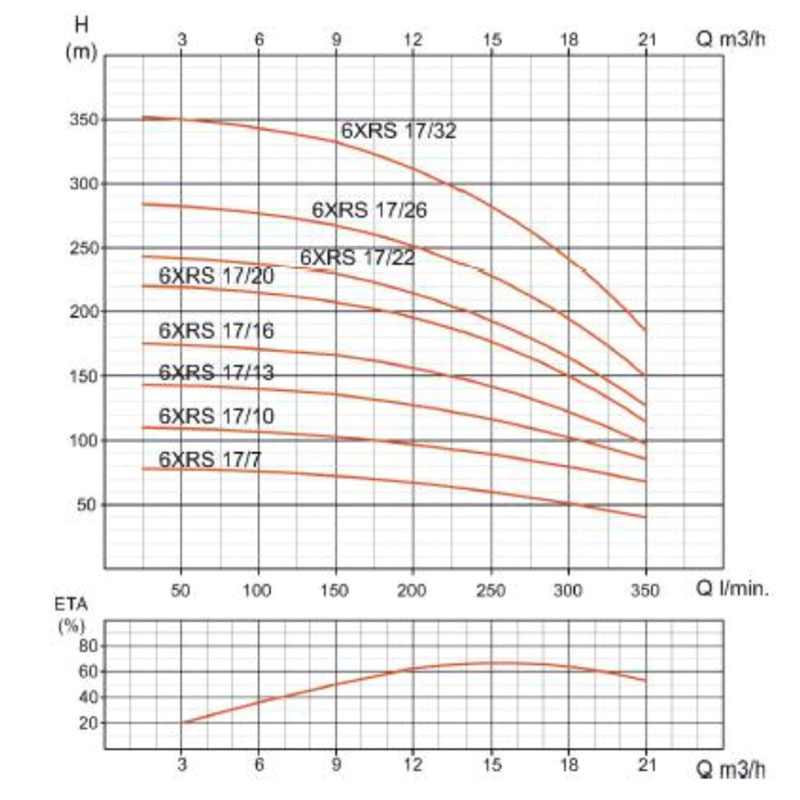

Operating curve

Operating curve of 6XRS series submersible electric pumps

Technical Data

Model 6XRS 17/13 6XRS 17/16 6XRS 17/20 6XRS 17/22 6XRS 17/26 6XRS 17/32
Code 1043207 1043209 1043211 1043213 1043215 1043218
Power Supply 400V 400V 400V 400V 400V 400V
Rated power 7.5 kW - 10 HP 9.2 kW - 12.5 HP 11 kW - 15 HP 13 kW - 17.5 HP 15 kW - 20 HP 18.5 kW - 25 HP
Max Liquid Temp. 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C
Max content Sand 0.25% 0.25% 0.25% 0.25% 0.25% 0.25%
Max Dive Depth 100 m 100 m 100 m 100 m 100 m 100 m
Protection Class - Insulation IP 68 - Class F IP 68 - Class F IP 68 - Class F IP 68 - Class F IP 68 - Class F IP 68 - Class F
Motor Rewindable Rewindable Rewindable Rewindable Rewindable Rewindable
Outlet Diameter 2'' 1/2 2'' 1/2 2'' 1/2 2'' 1/2 2'' 1/2 2'' 1/2
Height 105.8 cm 124 cm 148.2 cm 160.3 cm 184.5 cm 220.8 cm
Flow rate 0÷400 L/min 0÷400 L/min 0÷400 L/min 0÷400 L/min 0÷400 L/min 0÷400 L/min
Prevalence 50÷143 m 61÷176 m 77÷220 m c 100÷286 m 123÷352 m

Technical Data

Model 6XRS 17/13 6XRS 17/16 6XRS 17/20 6XRS 17/22 6XRS 17/26 6XRS 17/32
Code 1043207 1043209 1043211 1043213 1043215 1043218
Power Supply 400V 400V 400V 400V 400V 400V
Rated power 7.5 kW - 10 HP 9.2 kW - 12.5 HP 11 kW - 15 HP 13 kW - 17.5 HP 15 kW - 20 HP 18.5 kW - 25 HP
Max Liquid Temp. 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C
Max content Sand 0.25% 0.25% 0.25% 0.25% 0.25% 0.25%
Max Dive Depth 100 m 100 m 100 m 100 m 100 m 100 m
Protection Class - Insulation IP 68 - Class F IP 68 - Class F IP 68 - Class F IP 68 - Class F IP 68 - Class F IP 68 - Class F
Motor Rewindable Rewindable Rewindable Rewindable Rewindable Rewindable
Outlet Diameter 2'' 1/2 2'' 1/2 2'' 1/2 2'' 1/2 2'' 1/2 2'' 1/2
Height 105.8 cm 124 cm 148.2 cm 160.3 cm 184.5 cm 220.8 cm
Flow rate 0÷400 L/min 0÷400 L/min 0÷400 L/min 0÷400 L/min 0÷400 L/min 0÷400 L/min
Prevalence 50÷143 m 61÷176 m 77÷220 m c 100÷286 m 123÷352 m
