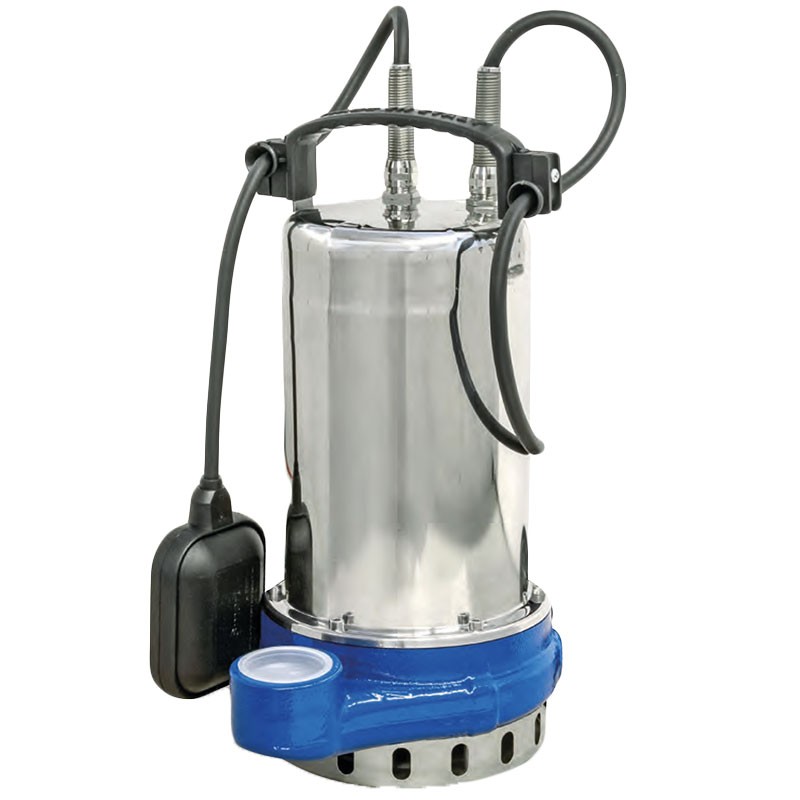

Speroni SNG-D 230V
Stainless Steel Submersible Electric Pumps
Single-Phase from 0.75 to 2 HP
230 V - 0.75÷2 HP
450 L/min - Prevalence 2÷20 m
DN 1'' 1/2
€306.00
€250.82 tax excl.
Speroni SNG-D Single-Phase 230V Models - Stainless Steel Submersible Electric Pumps from 0.75 to 2 HP
Speroni SNG-D portable, self-operating stainless steel submersible electric pumps for drainage used for draining seepage water, emptying flooded rooms or tanks, draining both clean and slightly dirty wastewater, and irrigating vegetable gardens and gardens.
The Speroni SNG-D models available here are single-phase 230V (50Hz) , with class F insulation and IP 68 protection in an oil bath for cooling and bearing lubrication. The water flow rate is a maximum of 450 L/min with a head of 16 to 20 m depending on the model selected.
Available models
- SNG 750-DS - 0.75 HP 0.55 kW 230 V
- SNG 1000-DS - 1.00 HP 0.75 kW 230 V
- SNG 1100A-DS - 1.10 HP 0.80 kW 230 V
- SNG 1100B-DS - 1.10 HP 0.80 kW 230 V
- SNG 1500-DS - 1.50 HP 1.10 kW 230 V
- SNG 2000-DS - 2.00 HP 1.50 kW 230 V
The 1.5 HP and 2 HP three-phase 400V models are also available on our website.
Limits of use
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max. liquid temperature: 35°C (for other uses)
- Maximum diving depth 10 m.
- Min. suction level 40 mm
- Continuous service
Motor
- Single-phase 230V-50Hz (with float)
- Three-phase 400V-50Hz
- Double chamber with oil bath motor for cooling and bearing lubrication
- Permanent capacitor inserted
- Class F insulation
- IP 68 protection
Materials
- Handle: AISI 304 stainless steel
- Motor case: AISI 304 stainless steel
- Pump body: Cast iron
- Impeller: Technopolymer
- Suction grille: AISI 304 stainless steel
- Crankshaft: AISI 304 stainless steel
- Mechanical seal: Silicon/Silicon/NBR
Hydraulic Curve
Product Dimensions
Dati Tecnici
| Modello | SNG 750-DS | SNG 1000-DS | SNG 1100A-DS | SNG 1100B-DS | SNG 1500-DS | SNG 2000-DS |
| Alimentazione | 230 V | 230 V | 230 V | 230 V | 230 V | 230 V |
| Potenza Nominale | 0,75 HP (0,55 kW) | 1 HP ( 0,75 kW) | 1,1 HP (0,8 kW) | 1,1 HP (0,8 kW) | 1,5 HP (1,1 kW) | 2 HP (1,5 kW) |
| Diametro Mandata | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 |
| Prevalenza min | 2 m | 2 m | 1 m | 1,5 m | 1 m | 2,5 m |
| Prevalenza max | 12 m | 14 m | 16 m | 13 m | 18 m | 20 m |
| Portata Liquido | 350 L/min | 350 L/min | 450 L/min | 450 L/min | 450 L/min | 450 L/min |
| Classe Protezione - Isolamento | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F |
| Dimensioni con imballo | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm |
| Peso | 12 kg | 12,5 kg | 13 kg | 13 kg | 14 kg | 14,5 kg |
Dati Tecnici
| Modello | SNG 750-DS | SNG 1000-DS | SNG 1100A-DS | SNG 1100B-DS | SNG 1500-DS | SNG 2000-DS |
| Alimentazione | 230 V | 230 V | 230 V | 230 V | 230 V | 230 V |
| Potenza Nominale | 0,75 HP (0,55 kW) | 1 HP ( 0,75 kW) | 1,1 HP (0,8 kW) | 1,1 HP (0,8 kW) | 1,5 HP (1,1 kW) | 2 HP (1,5 kW) |
| Diametro Mandata | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 |
| Prevalenza min | 2 m | 2 m | 1 m | 1,5 m | 1 m | 2,5 m |
| Prevalenza max | 12 m | 14 m | 16 m | 13 m | 18 m | 20 m |
| Portata Liquido | 350 L/min | 350 L/min | 450 L/min | 450 L/min | 450 L/min | 450 L/min |
| Classe Protezione - Isolamento | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F |
| Dimensioni con imballo | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm |
| Peso | 12 kg | 12,5 kg | 13 kg | 13 kg | 14 kg | 14,5 kg |
