Speroni SVX 550/1100
Stainless Steel Submersible Electric Pumps
Waste Water
230 V - 07÷1.5 HP
250 L/min - Prevalenza 7÷10 m
DNM 1'' 1/2 - 2

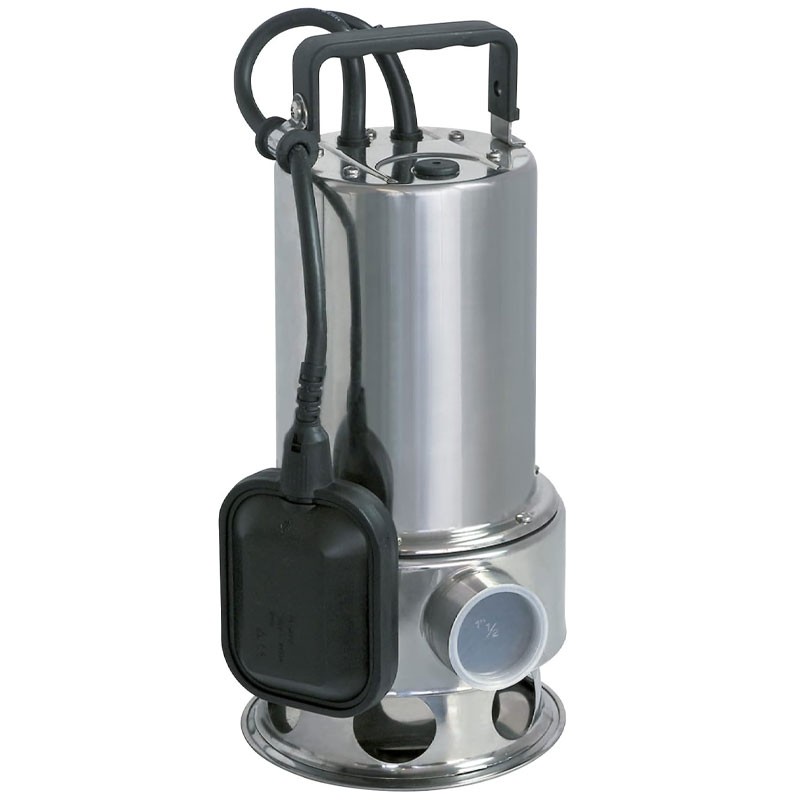

Speroni SVX 550/1100 - Stainless Steel Submersible Electric Pumps for Waste Water
Speroni SVX 550 and Speroni SVX 1100 stainless steel submersible electric pumps for drainage , suitable for emptying settling tanks and pumping wastewater for domestic and civil use.
Speroni SVX is equipped with a single-phase 230V (50Hz) motor , with class F insulation and IP 68 protection with built-in automatic reset amperometric protection. The water flow rate is max. 180 / 250 L/min with maximum head 7 / 10 m based on the selected model.
Limits of use
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max. liquid temperature: 35°C (for other uses)
- Diving depth 5 m.
- Solid passage Ø 35 mm
- Min. suction level 60 mm
Motor
- Built-in automatic reset amperometric protection
- Permanent capacitor inserted
- Class F insulation
- IP 68 protection
- 10 m power cable.
- Float as standard
Materials
- Handle: Polypropylene
- Pump body: AISI 304 stainless steel
- Impeller: Noryl
- Motor case: AISI 304 stainless steel
- Crankshaft: AISI 304 stainless steel

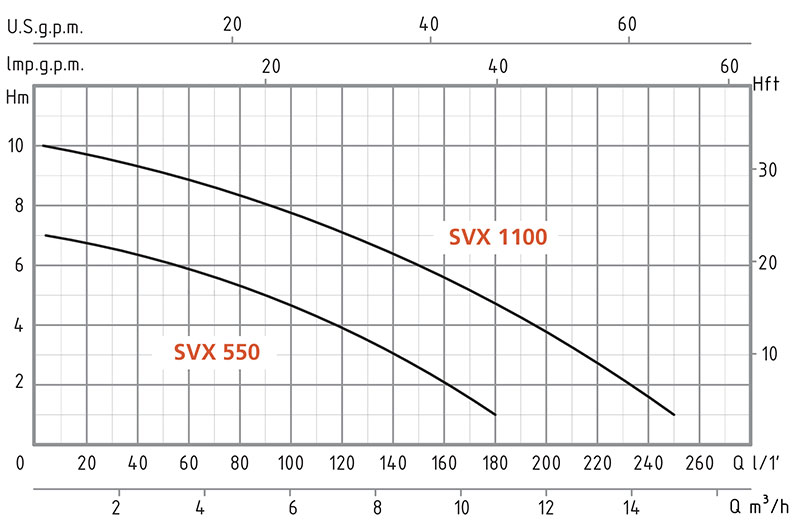

Hydraulic Curve
Technical Data
| Model | SVX 550 | SVX 1100 |
| Power Supply | 230 V | 230 V |
| Power | 0.7 HP - 550 W | 1.5 HP - 1100 W |
| Delivery Diameter | DNM 1'' 1/2 | DNM 2 |
| Prevalence | 7 m | 10 m |
| Liquid Flow Rate | 180 L/min | 250 L/min |
| Protection Class - Insulation | IP 68 - F | IP 68 - F |
| Dimensions with packaging | 20.6 x 23.1 x 40 cm | 20.6 x 23.1 x 40 cm |
| Weight | 6.2 kg | 7.7 kg |
Technical Data
| Model | SVX 550 | SVX 1100 |
| Power Supply | 230 V | 230 V |
| Power | 0.7 HP - 550 W | 1.5 HP - 1100 W |
| Delivery Diameter | DNM 1'' 1/2 | DNM 2 |
| Prevalence | 7 m | 10 m |
| Liquid Flow Rate | 180 L/min | 250 L/min |
| Protection Class - Insulation | IP 68 - F | IP 68 - F |
| Dimensions with packaging | 20.6 x 23.1 x 40 cm | 20.6 x 23.1 x 40 cm |
| Weight | 6.2 kg | 7.7 kg |
