Annovi Reverberi 7850
Three-Phase Hot Water Pressure Washer

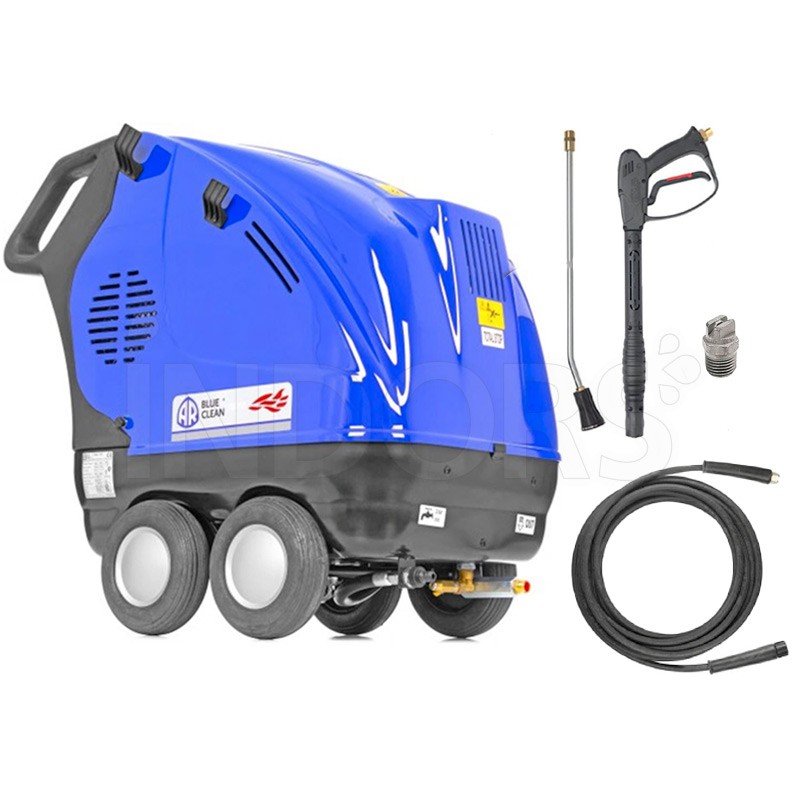

Annovi Reverberi 7850 - Three-Phase Hot Water Pressure Washer

Annovi Reverberi 7850 is a three-phase motor hot water pressure washer with a very robust structure, a modern design, 4 solid wheels with rubber tread, an ergonomic handle and a steel boiler.

The pressure washer is high-performance and suitable for different fields, such as construction, crafts, automotive, etc. Thanks to the hot water it is able to clean the most stubborn dirt .

Technical specifications

The Annovi Reverberi 7850 pressure washer produces hot water at a pressure of 150 bar , for a flow rate of 900 L/h , a power of 5 kW and 1450 RPM , the motor is powered at 400 V with IPX5-S1 thermal protection and a 5 m long power cable.

This pressure washer features an HRC pump , a 3-piston ceramic pump with a connecting rod and crank system and an automatic bypass valve with zero pressure relief in the pump head. The Annovi Reverberi 7850's safety systems include a remote total shutdown of the pressure washer, a safety pressure switch that shuts down the boiler in the event of a water shortage, and a delay card for boiler shutdown.

The pressure washer's boiler is vertical and made of stainless steel, with a spiral burner cooling system driven by an independent electric motor, double coil and a refractory concrete bottom. The Annovi Reverberi 7850 features a micro-leak board with an acoustic alarm and a boiler shutdown delay. Further features of this machine include a pressure regulator, a 15 L diesel tank with drain plug, and a thermostat .

The 4 L detergent tank is built-in , there is a water filter and a diesel suction filter, the detergent suction is built-in and the water filter can be inspected .

The AR 7870 control panel makes it easy to operate this pressure washer. It has three positions : OFF, which indicates the machine is off; an intermediate position indicates the pump is on; and ON, which indicates the burner is on. The knob on the right controls the thermostat , with a range from 0° to 150°C . It has handles for easy movement.

Self-priming function

A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.

• Hot water
• Induction motor
• Connecting rod pump
• IPX5-S1 water resistance
• Brass head
• Total Stop System Timed

HRC_EM pump

Fields of application

• Building
• Livestock farming
• Craftsmanship
• Car wash
• Automotive

Characteristics

• Three-phase motor
• Stainless steel boiler
• Hot water
• HRC pump
• Robust structure
• Inspectable water inlet filter

Standard equipment

• Pistol
• 57 cm spear
• Nozzle
• 10m tube
