IPC PW H90
Three-phase pressure washer

IPC PW-H90 Three-Phase Hot Water Pressure Washer

IPC PW-H90 professional pressure washer built specifically to last over time . For over 50 years IPC has been designing and building professional pressure washers and therefore knows how important it is to have a machine capable of working without interruptions . IPC created PW-H90 to achieve reliability first and foremost , using high quality components.

PW-H90, consumes 7.6 Kg/h and is extremely easy to maintain in every part thanks to the innovative layout of the machine which allows easy access to the internal components .

Watch the IPC PW-90 Video

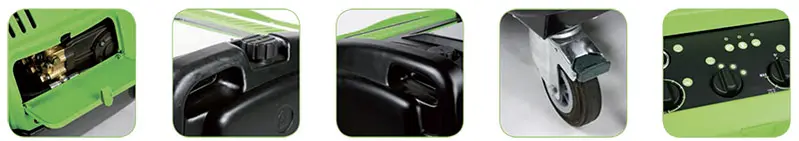

Easy to Use Controls

Pressure and temperature regulation is extremely easy and intuitive thanks to direct access to the internal components and the simplicity of use of the control panel .

• Continuous pressure regulation
  Direct access to the pressure regulator makes cleaning operations comfortable
• Temperature Regulation
  Temperature regulation easy to reach and operate via knob on the control panel

Main Features

• Asynchronous electric motor 1400 RPM , guarantees a long life of the mechanical components and does not require maintenance. Equipped with thermal protection
• Low voltage controls ensure maximum safety for the user
• AP pump with connecting rod and crank system with brass head and ceramic pistons
• High efficiency stainless steel boiler : no rust formation. Double spiral steel coil
• Boiler ventilation with independent motor
• Electrical panel protected from splashes of water and dirt thanks to a transparent material cover
• Anti-limescale tray with a capacity of 3.5 L
• Pump-motor coupling with elastic joint that guarantees less vibration, greater reliability and durability of all mechanical components
• Outlet water temperature 30÷140°C
• Diesel tank capacity 30 L
• Detergent tank capacity 16 L
• Tanks integrated into the trolley equipped with caps for draining and cleaning
• Externally adjustable pressure
• Ergonomic handles for easy and comfortable transport
• 2 swivel wheels on the back and 2 front wheels make the machine stable and easy to transport
• Control panel complete with motor and burner ignition switch, adjustable thermostat, detergent tap, pressure gauge
• Warning lights: micro leaks, diesel level and limescale remover
• Practical Hose Reel

Safety Devices

The operator can work in any environment and condition always in maximum safety.

Intelligent Total Stop ITS
Temporarily turns off the machine after 30 seconds of inactivity and automatically restarts it when the gun is activated again or turns it off permanently after a period of inactivity

Accessories Supplied

• Pistol
• High Pressure Hose 10m
• Lance
• High Pressure Nozzle
