CGM 230P
Fixed Industrial Generator 253 kW
400 V - 253 kW
7010 cc - 261 HP
DIESEL
Warranty 2 years
Shipped on Pallet
CGM 230 P - Industrial Power Generator 253 kW (kVA)
The CGM 230P is a professional 400V fixed generator in open and closed versions. The 253 kW (kVA) generator is a professional CGM generator suitable for continuous industrial use .
Equipped with a powerful Perkins engine with Eu Stage 0 emissions, this 1500 rpm generator has a power output of 261 HP with 195 kW output.
The CGM 230 P generator has an electronic speed regulator .
Supplied with Manual Panel.
ATS and Automatic Panel on Request
Functional specifications
Professional generator 253 kW
CGM 230P is a fixed industrial generator with continuous net power of 202 kW (253 kVA) . With PERKINS 1206A-E70TTAG2 engine with mechanical speed governor , 261 HP and 7010 cc at 1500 RPM . CGM 230 P has 6 cylinders , with aspiration and water cooling .
AVR voltage regulator
CGM 230P is equipped with a 4-pole AVR voltage regulator with voltage accuracy of +-1%. Brushless alternator .
Manual electrical panel
Equipped with a control unit with a Comap InteliLite 9 multimeter , this electrical panel has IP44 protection. With a standard emergency button and a circuit breaker .
Standard control unit
The standard control unit features automatic/manual start , remote start , periodic testing , a multimeter , a counter , a battery, and a backlit LCD display . A USB port is available. Communication accessories are available.
Soundproof cabin for outdoors
The soundproof version is equipped with a soundproof and weatherproof cabin, made of structural steel sheet , thickness between 1.5 and 4.5 mm. RAL5015 textured epoxy powder coating. Internal lining in sound-absorbing material with high noise reduction , finished with water-repellent and anti-oil material.
CGM 230P has maximum accessibility for ordinary and extraordinary maintenance by means of two large doors with key lock and padlocks.
Fresh air intake from below and on the short side, hot air expulsion from above and below the cabin.
Functional specifications
Manual Electrical Panel (standard)
Equipped with a control unit with COMAP InetliLite 9 multimeter , the manual electrical panel of the CGM 200 P generator has an IP44 metal case , a control key with ON/OFF switch , a standard emergency button , a 4P ABB Tmax-T 320A magnetothermal protection switch and electrical distribution with a full power terminal block .
This manual control panel features main protection alarms for min-max V and Hz, LOP. HWT , alternator charger failure and low fuel level .
Automatic Electrical Panel (optional - on request)
The automatic start electrical panel with COMAP InteliLite 9 control unit is an optional feature of the CGM 200P generator. It features IP44 protection , a keyless ON-OFF switch and a standard emergency button . The 12V 5A battery charger maintainer , electrical distribution with full power terminal blocks and a 4P ABB Tmax-T 320A circuit breaker .
This automatic control panel features main protection alarms for min-max V and Hz, LOP. HWT , alternator charger failure and low fuel level .
Control Unit
COMAP InteliLite 9 : equipped with automatic or manual start, remote start, periodic test; multimeter V (L1, L2, L3, N), A (L1, L2, L3), Hz, kVA, battery V, hour meter; backlit LCD display and USB port; Ethernet, GSM-GPRS, 4G, GPS
Details
Lifting hooks
Feet for stable support
Available models
Two versions can be selected from the drop-down menu:

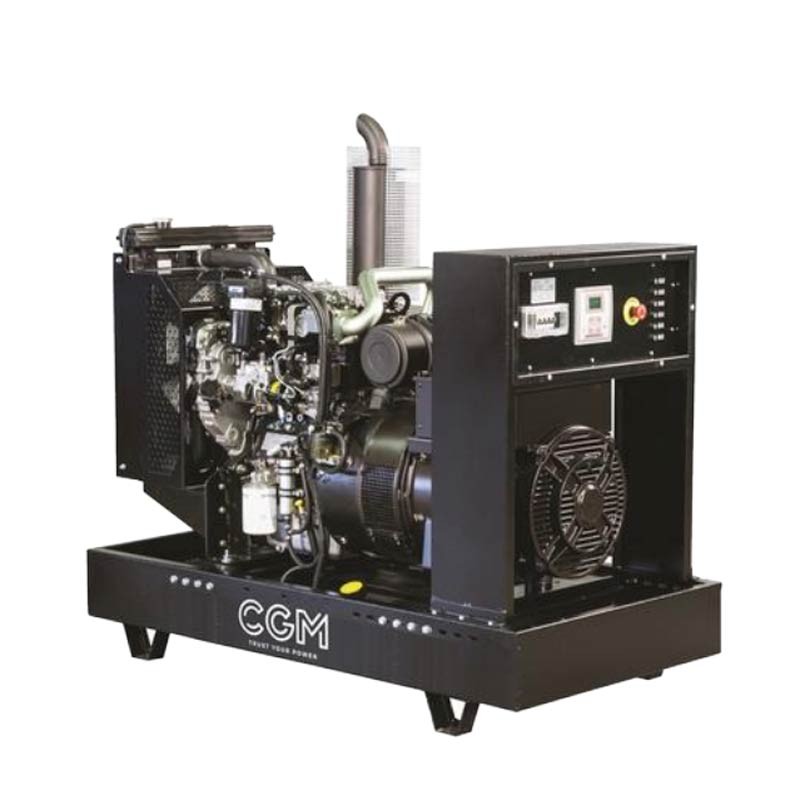

- CGM 230P open
- CGM 230P soundproof (silenced)
Characteristics
- Fixed generator 253 kVA (202 kW)
- Open and closed version
- Powerful 7010cc engine at 261 HP / 202 kW
- Diesel generator
- Stamford - Marelli Alternator
- Quiet 69 dB(A)
- Manual electrical panel
- Automatic electrical panel (on request)
- ATS panel for mains failure (optional on request)
Main Options (on request)
- 400 A automatic mains-to-generator transfer switch (ATS)
- 400 L enlarged tank with containment basin
- 1000W engine preheater
- Electronic RPM regulator
- Automatic fuel transfer kit with manual bypass system
- Differential protection relay with adjustable sensitivity and intervention time
Technical Data
| Power Supply | Three-phase |
| Motor | PERKINS 1106A-70TAG3 |
| Speed governor | Mechanical |
| Engine revolution | 1500 RPM |
| Maximum Power | 253 KVA - 202 KW cos φ 0.8 |
| Continuous power | 230 KVA - 184 KW cos φ 0.8 |
| No. of Cylinders | 6 |
| Aspiration | Natural |
| Cooling | Waterfall |
| Displacement | 7010 cc |
| Bore x stroke | 105 x 135 mm |
| Fuel | Diesel |
| Consumption | 6.6 h - 25.5÷51 L/h |
| Standard Tank Capacity | 250 L |
| Continuous Power | 261 HP - 195 kW |
| Alternator | Stamford - Marelli |
| Voltage Regulation | AVR |
| Voltage Precision | 1% |
| No. of Poles | 4 |
| Noise level at 7 m | 69 dB (A) |
| Exhaust Diameter | 114 mm |
| Electrical System Voltage | 12V |
| Insulation Class | H |
| Overtemperature Class | H |
| Open Generator Size | 280 x 1310 x 180 cm |
| Open Generator Weight | 2115 kg |
| Soundproof Generator Size | 370 x 140 x 225 cm |
| Soundproof Generator Weight | 2780 kg |
Technical Data
| Power Supply | Three-phase |
| Motor | PERKINS 1106A-70TAG3 |
| Speed governor | Mechanical |
| Engine revolution | 1500 RPM |
| Maximum Power | 253 KVA - 202 KW cos φ 0.8 |
| Continuous power | 230 KVA - 184 KW cos φ 0.8 |
| No. of Cylinders | 6 |
| Aspiration | Natural |
| Cooling | Waterfall |
| Displacement | 7010 cc |
| Bore x stroke | 105 x 135 mm |
| Fuel | Diesel |
| Consumption | 6.6 h - 25.5÷51 L/h |
| Standard Tank Capacity | 250 L |
| Continuous Power | 261 HP - 195 kW |
| Alternator | Stamford - Marelli |
| Voltage Regulation | AVR |
| Voltage Precision | 1% |
| No. of Poles | 4 |
| Noise level at 7 m | 69 dB (A) |
| Exhaust Diameter | 114 mm |
| Electrical System Voltage | 12V |
| Insulation Class | H |
| Overtemperature Class | H |
| Open Generator Size | 280 x 1310 x 180 cm |
| Open Generator Weight | 2115 kg |
| Soundproof Generator Size | 370 x 140 x 225 cm |
| Soundproof Generator Weight | 2780 kg |
