CGM 180 P
Industrial Power Generator
400 V - 198 kW
7010 cc - 210.4 HP
DIESEL
Warranty 2 years
Shipped on Pallet

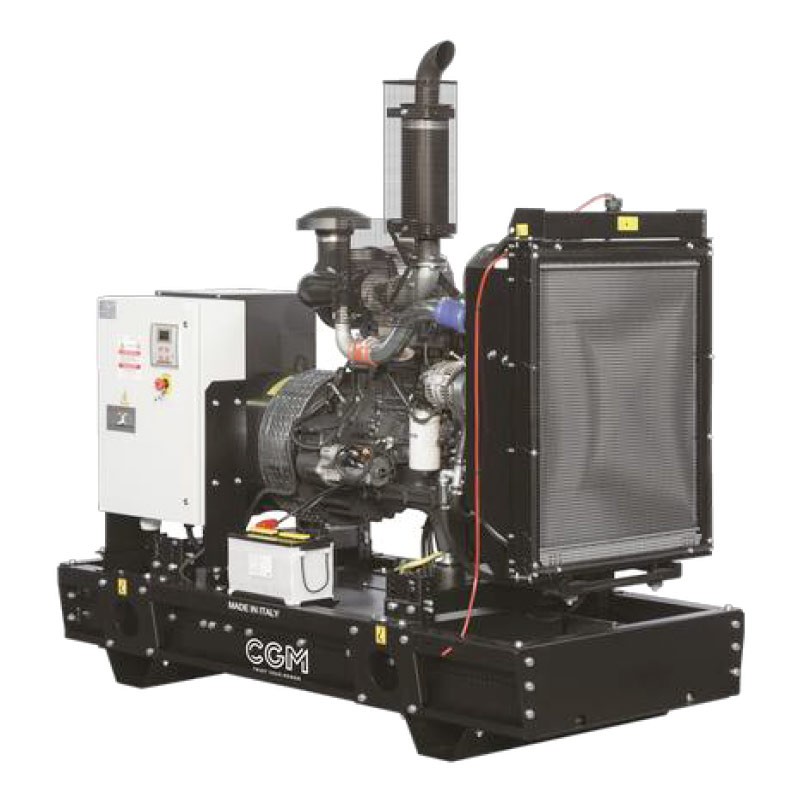

CGM 180 P - Industrial Power Generator 198 kW (kVA)
The CGM 180P is a professional 400V fixed generator in open and closed versions. The 198 kW (kVA) generator is a professional CGM generator suitable for continuous industrial use .
Supplied with Manual Panel.
ATS and Automatic Panel on Request
Functional specifications
Professional generator 198 kW
CGM 180P is a fixed industrial generator with continuous net power of 144 kW (180 kVA) . With PERKINS 1106A-70TAG3 engine with mechanical speed governor , 210.4 HP and 7010 cc at 1500 RPM . CGM 180 P has 6 cylinders , with aspiration and water cooling .
AVR voltage regulator
CGM 180 P is equipped with a 4-pole AVR voltage regulator with voltage accuracy of +-1%. Brushless alternator .
Manual electrical panel
Equipped with a control unit with a Comap InteliLite 9 multimeter , this electrical panel has IP44 protection. With a standard emergency button and a circuit breaker .
Standard control unit
The standard control unit features automatic/manual start , remote start , periodic testing , a multimeter , a counter , a battery, and a backlit LCD display . A USB port is available. Communication accessories are available.
Soundproof cabin for outdoors
The soundproof version is equipped with a soundproof and weatherproof cabin, made of structural steel sheet , thickness between 1.5 and 4.5 mm. RAL5015 textured epoxy powder coating. Internal lining in sound-absorbing material with high noise reduction , finished with water-repellent and anti-oil material.
CGM 180P has maximum accessibility for ordinary and extraordinary maintenance by means of two large doors with key lock and padlocks.
Fresh air intake from below and on the short side, hot air expulsion from above and below the cabin.
Details
Lifting hooks
Feet for stable support
Available models
Two versions can be selected from the drop-down menu:
- CGM 180P open
- CGM 180P soundproof (silenced)
Characteristics
- Fixed generator 198 kVA (158.4 kW)
- Open and closed version
- Powerful 7010 cc engine at 210.4 HP / 157 kW
- Diesel generator
- Stamford - Marelli Alternator
- Quiet 69 dB(A)
- Manual electrical panel
- ATS panel for mains failure (optional)
Main Options (on request)
- 400 A automatic mains-to-generator transfer switch (ATS)
- 120 L enlarged tank with containment basin
- 1000W engine preheater
- Electronic RPM regulator
- Automatic fuel transfer kit with manual bypass system
- Differential switch
- Electric tank float for fuel level monitoring from the electronic control unit
- Oil pressure and engine cooling water temperature measuring instruments
Technical Data
| Power Supply | Three-phase |
| Motor | PERKINS 1106A-70TAG3 |
| Speed governor | Mechanical |
| Engine revolution | 1500 RPM |
| Maximum Power | 198 KVA - 158.4 KW cos φ 1 |
| Continuous power | 180 KVA - 144 KW cos φ 1 |
| No. of Cylinders | 6 |
| Aspiration | Natural |
| Cooling | Waterfall |
| Displacement | 7010 cc |
| Bore x stroke | 105 x 135 mm |
| Fuel | Diesel |
| Consumption | 8.1 h - 18.8÷39.6 L/h |
| Standard Tank Capacity | 250 L |
| Continuous Power | 210 HP - 157 kW |
| Alternator | Stamford - Marelli |
| Voltage Regulation | AVR |
| Voltage Precision | 1% |
| No. of Poles | 4 |
| Noise level at 7 m | 69 dB (A) |
| Exhaust Diameter | 114 mm |
| Electrical System Voltage | 12V |
| Insulation Class | H |
| Overtemperature Class | H |
| Open Generator Size | 240 x 110 x 200 cm |
| Open Generator Weight | 1740 kg |
| Soundproof Generator Size | 320 x 110 x 209 cm |
| Soundproof Generator Weight | 2070 kg |
Technical Data
| Power Supply | Three-phase |
| Motor | PERKINS 1106A-70TAG3 |
| Speed governor | Mechanical |
| Engine revolution | 1500 RPM |
| Maximum Power | 198 KVA - 158.4 KW cos φ 1 |
| Continuous power | 180 KVA - 144 KW cos φ 1 |
| No. of Cylinders | 6 |
| Aspiration | Natural |
| Cooling | Waterfall |
| Displacement | 7010 cc |
| Bore x stroke | 105 x 135 mm |
| Fuel | Diesel |
| Consumption | 8.1 h - 18.8÷39.6 L/h |
| Standard Tank Capacity | 250 L |
| Continuous Power | 210 HP - 157 kW |
| Alternator | Stamford - Marelli |
| Voltage Regulation | AVR |
| Voltage Precision | 1% |
| No. of Poles | 4 |
| Noise level at 7 m | 69 dB (A) |
| Exhaust Diameter | 114 mm |
| Electrical System Voltage | 12V |
| Insulation Class | H |
| Overtemperature Class | H |
| Open Generator Size | 240 x 110 x 200 cm |
| Open Generator Weight | 1740 kg |
| Soundproof Generator Size | 320 x 110 x 209 cm |
| Soundproof Generator Weight | 2070 kg |
