CGM 150 P Professional Generator
Soundproof 165 kW

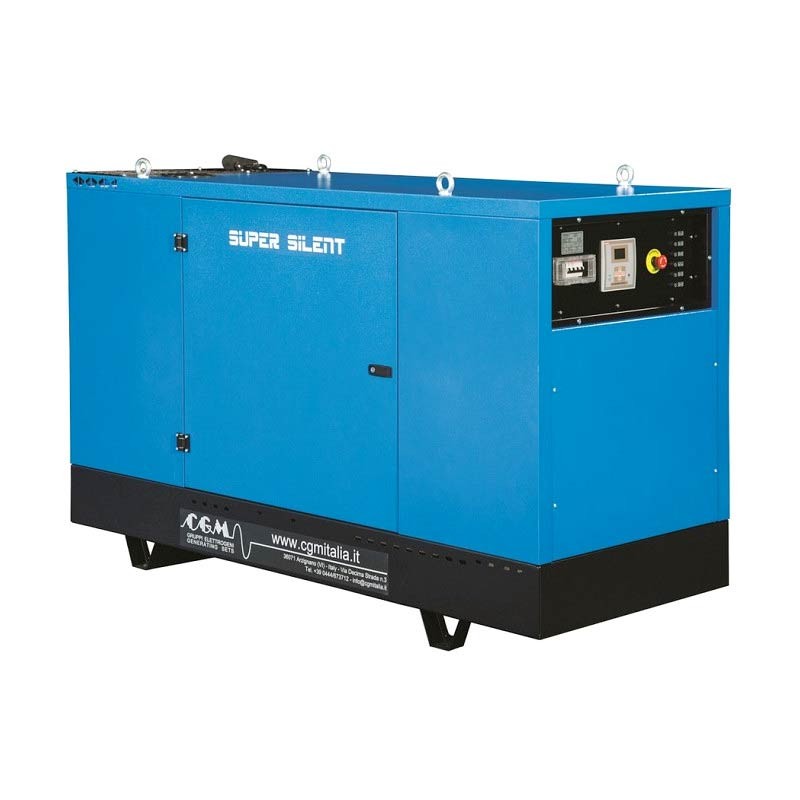

CGM 150P - Professional Soundproof Generator 165 kW

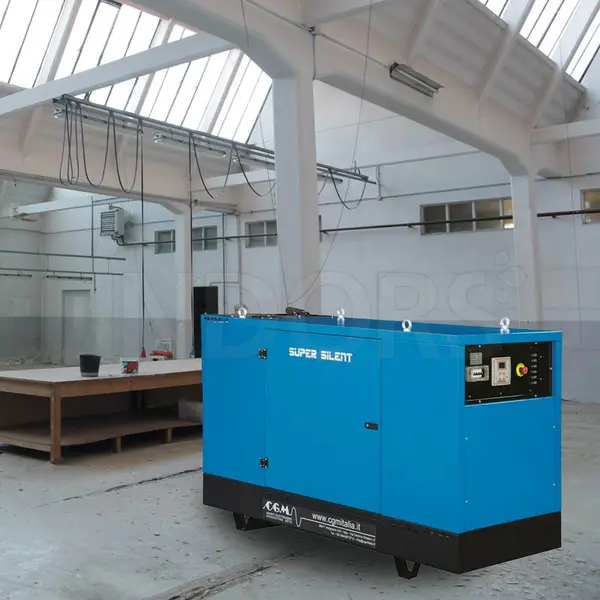

The CGM 150P, in its open B200 and closed C200 versions, is a fixed generator designed for continuous use in a professional setting . This Made in Italy generator guarantees excellent performance thanks to its superior features.

Supplied with Manual Panel.
ATS and Automatic Panel on Request

Available models

Two versions can be selected from the drop-down menu:

• CGM 150P Open
• CGM 150P SounProof (silenced)

Technical Specifications

CGM 150P 400V 131 kW 175.6 Hp is the professional solution for those looking for a powerful generator with high-quality performance . Equipped with a Perkins 1106A-70TAG1 Diesel engine with 4 poles, mechanical regulation and 1500 RPM , 6 cylinders and 7010 cc with supercharged aspiration and water cooling , this fixed generator set has a tank with a capacity of 250 L , a consumption of 16.5 - 24.5 - 32.3 L/h and an autonomy of 10.2 hours .

With Stamford brushless self-excited alternator , voltage and frequency as a function of load are automatically adjusted by the AVR .

Functional Specifications

SoundProof Version

The silenced version of the CGM 150P generator is equipped with a self-supporting frame in electro-welded carbon steel with a minimum thickness of 2.5 mm , soundproofed casing in electro-welded carbon steel sheet with a thickness between 1.5 and 4.5 mm and external epoxy powder coating in RAL5015 textured finish .

This soundproofed generator is protected by sound-absorbing polyurethane coating material finished with water-repellent and oil-resistant fabric . Closed by two doors that can be opened with a key lock . Fire resistant with EN13501-1 class B classification and with a residential-type muffler inside the hood with 35 dB(A) noise reduction .

Characteristics

• Fixed generator 165 kW
• Open and closed version
• Powerful Perkins 1106A-70TAG1 Diesel engine
• Low noise 69 dB(A)
• Manual or automatic electrical panel (optional on request)
• ATS panel for mains failure (optional on request)

Main Optional Equipment

• 250A Automatic Transfer Switchgear (ATS)
• 400 L enlarged tank with containment basin
• 750W engine preheater
• Electronic engine speed governor
• Automatic fuel transfer kit with manual bypass system
• Differential protection relay adjustable in sensitivity and intervention time

Additional Optional Equipment

• Distribution socket kit
• Parallel framework
• Battery switch
• Remote control systems
• Alternator of another brand
• Quick couplings for connection to an external tank with three-way valve
• Outdoor, underground and transportable tanks
• Slow or fast towing trolleys
• Cabin with front air expulsion
• Other colors
