CGM 100 P Professional Generator 110 kW
400V - 110 kW
4410 cc - 120,6 HP
DIESEL
Warranty 2 years
Shipped on Pallet
CGM 100P - Professional Three-Phase Generator 110 kW
The CGM 100P, in its open B100 and closed C100 versions, is a fixed generator designed for continuous use in a professional setting . This Made in Italy generator guarantees excellent performance thanks to its superior features.
Supplied with Manual Panel.
ATS and Automatic Panel on Request
Available models
Two versions can be selected from the drop-down menu:
- CGM 100P Open
- CGM 100P SoundProof (silenced)
Technical Specifications
CGM 100P 400V 90 kW 120.6 Hp is the professional solution for those looking for a powerful generator with high-quality performance . Equipped with a Perkins 1104A-44TAG2 Diesel engine with 4 poles, mechanical regulation and 1500 RPM , 4 cylinders and 4410 cc with supercharged aspiration and water cooling , this fixed generator set has a tank with a capacity of 120 L , a consumption of 12 - 17 - 23 L/h and an autonomy of 7 hours .
With Stamford brushless self-excited alternator , voltage and frequency as a function of load are automatically adjusted by the AVR .
Functional Specifications
Manual Electrical Panel (standard)
Equipped with a LOVATO ELECTRIC RGK420 SA control unit with multimeter , the manual electrical panel of the CGM 100 P generator has a backlit LCD display , IP44 metal case , protection fuses , emergency button , ON-OFF key selector . Electrical distribution with CEE IP76 sockets: 1 x 3P 16A + 1 x 5P 32A and 1P + N 16A and 4P 40A magnetothermal protection switch .
This manual control panel features main protection alarms for min-max V and Hz, LOP. HWT , alternator charger failure and low fuel level .
Automatic Electrical Panel (optional on request)
The automatic start electrical panel with COMAP InteliLite 9 control unit is an optional feature of the CGM 100P generator. It features IP44 protection , a keyless ON-OFF switch and a standard emergency button . The 12V 3A battery charger maintainer , electrical distribution with full power terminal blocks and a 4P 40A circuit breaker .
This automatic control panel features main protection alarms for min-max V and Hz, LOP. HWT , alternator charger failure and low fuel level .
Control Unit
- LOVATO ELECTRIC RGK420 SA : equipped with manual start, remote start, periodic test; multimeter V (L1, L2, L3, N), A (L1), Hz, kVA, battery V, hour meter; backlit LCD display and optical and NFC port
- COMAP InteliLite 9 : equipped with automatic or manual start, remote start, periodic test; multimeter V (L1, L2, L3, N), A (L1, L2, L3), Hz, kVA, battery V, hour meter; backlit LCD display and USB port; Ethernet, GSM-GPRS, 4G, GPS

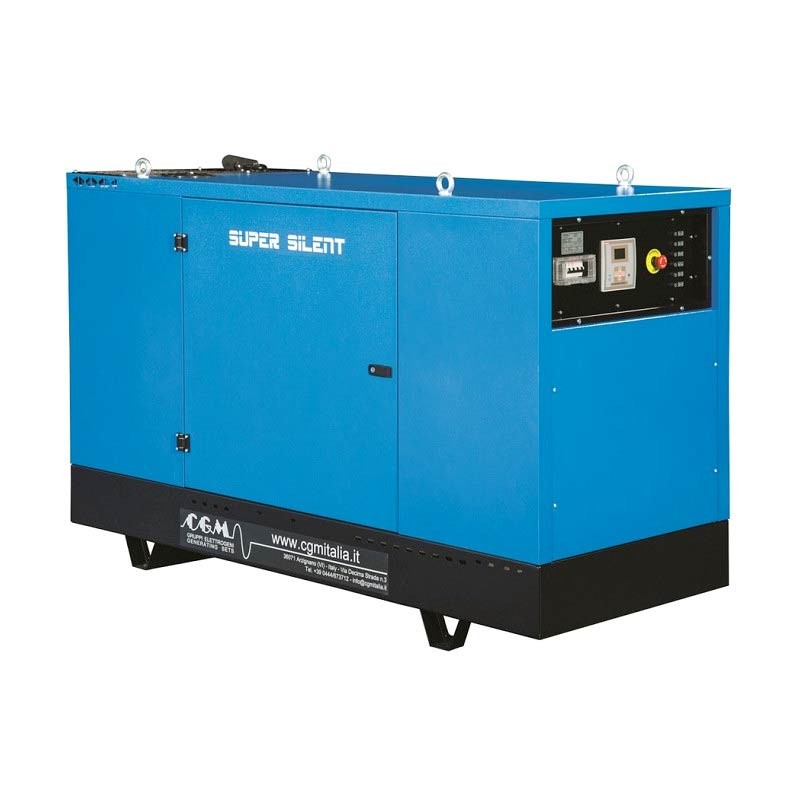

SoundProof Version
The silenced version of the CGM 100P generator is equipped with a self-supporting frame in electro-welded carbon steel with a minimum thickness of 2.5 mm , soundproofed casing in electro-welded carbon steel sheet with a thickness between 1.5 and 4.5 mm and external epoxy powder coating RAL5015 textured finish .
This soundproofed generator is protected by sound-absorbing polyurethane coating material finished with water-repellent and oil-resistant fabric . Closed by two doors that can be opened with a key lock . Fire resistant with EN13501-1 class B classification and with a residential-type muffler inside the hood with 35 dB(A) noise reduction .
Characteristics
- 110 kW fixed generator
- Open and closed version
- Powerful Perkins 1104A-44TAG2 Diesel engine
- Low noise 69 dB(A)
- Manual or automatic electrical panel (optional on request)
- ATS panel for mains failure (optional on request)
Main Optional Equipment
- 140A Automatic Transfer Switchgear (ATS)
- 250 L larger tank
- 750W engine preheater
- Electronic engine speed governor
- Automatic fuel transfer kit with manual bypass system
- Differential protection relay adjustable in sensitivity and intervention time
- Oil pressure and engine cooling water temperature measuring instruments
Additional Optional Equipment
- Distribution socket kit
- Parallel framework
- Battery switch
- Remote control systems
- Alternator of another brand
- Quick couplings for connection to an external tank with three-way valve
- Outdoor, underground and transportable tanks
- Slow or fast towing trolleys
- Cabin with front air expulsion
- Other colors
Technical Data
| Voltage | 400V |
| Continuous Power | 100 KVA - 80 KW cos φ 0.8 |
| Maximum Power | 110 KVA - 88 KW cos φ 0.8 |
| System Type | 3F+N |
| Nominal Amperage | 144.3 A |
| Motor | PERKINS 1104A-44TAG2 |
| Speed governor | Electronic |
| Engine Power | 120.6 HP - 90 kW |
| Engine revolution | 1500 RPM |
| No. of Cylinders | 4 |
| Aspiration | Supercharged |
| Cooling | Waterfall |
| Displacement | 4410 cc |
| Bore x stroke | 105 x 127 mm |
| Fuel | Diesel |
| Consumption @ 50-75-100% load | 12 - 17 - 23 L/h |
| Standard Tank Capacity | 120 L |
| Voltage Regulation | AVR |
| Voltage Precision | +- 1% |
| No. of Poles | 4 |
| Alternator | STAMFORD |
| Noise level at 7 m | 69 dB(A) |
| Exhaust Diameter | 90 mm |
| Electrical System Voltage | 12V |
| Open Generator Size | 210 x 100 x 180 cm |
| Open Generator Weight | 1135 kg |
| Soundproof Generator Size | 230 x 105 x 159 cm |
| Soundproof Generator Weight | 1390 kg |
Technical Data
| Voltage | 400V |
| Continuous Power | 100 KVA - 80 KW cos φ 0.8 |
| Maximum Power | 110 KVA - 88 KW cos φ 0.8 |
| System Type | 3F+N |
| Nominal Amperage | 144.3 A |
| Motor | PERKINS 1104A-44TAG2 |
| Speed governor | Electronic |
| Engine Power | 120.6 HP - 90 kW |
| Engine revolution | 1500 RPM |
| No. of Cylinders | 4 |
| Aspiration | Supercharged |
| Cooling | Waterfall |
| Displacement | 4410 cc |
| Bore x stroke | 105 x 127 mm |
| Fuel | Diesel |
| Consumption @ 50-75-100% load | 12 - 17 - 23 L/h |
| Standard Tank Capacity | 120 L |
| Voltage Regulation | AVR |
| Voltage Precision | +- 1% |
| No. of Poles | 4 |
| Alternator | STAMFORD |
| Noise level at 7 m | 69 dB(A) |
| Exhaust Diameter | 90 mm |
| Electrical System Voltage | 12V |
| Open Generator Size | 210 x 100 x 180 cm |
| Open Generator Weight | 1135 kg |
| Soundproof Generator Size | 230 x 105 x 159 cm |
| Soundproof Generator Weight | 1390 kg |
