Tecnogen H5000E
4.5 kW Generator
Electric Start with ATS

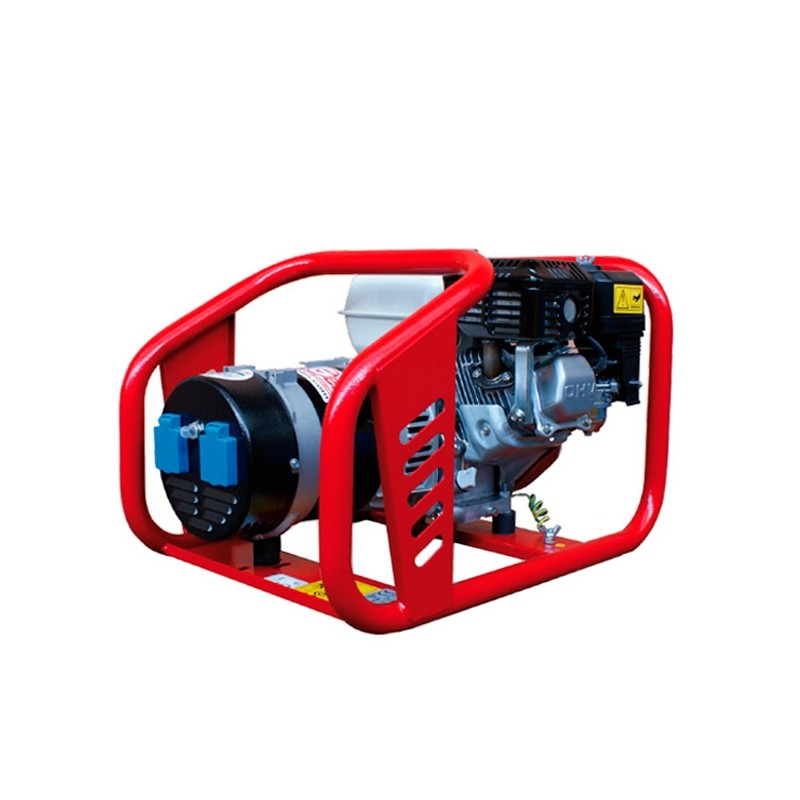

Tecnogen Compact H5000E - Electric Start Generator with ATS

The Tecnogen H5000E is a professional petrol generator from the Compact series , designed for industrial, construction and maintenance applications. Equipped with a Honda GX270 engine and operating at 3000 RPM , it delivers up to 4.5 kVA / 3.6 kW in 230V single-phase , ensuring operational continuity and energy reliability. The electric start configuration and optional AVR predisposition make it a stable technical solution for intensive professional use.

Available models

• H5000E with standard panel
• H5000E with ATS panel only

TECHNICAL SPECIFICATIONS

Tecnogen H5000E integrates a 270 cm³ Honda GX270 single-cylinder OHV petrol engine, with a 3000 RPM speed for stable delivery in single-phase 230V . The maximum power is 4.5 kVA / 3.6 kW , with average consumption of approximately 1.5 L/h at 75% load and a 6 L tank for operating autonomy. The system includes a 12V electric start and provision for AVR voltage regulation on request .

FUNCTIONAL SPECIFICATIONS

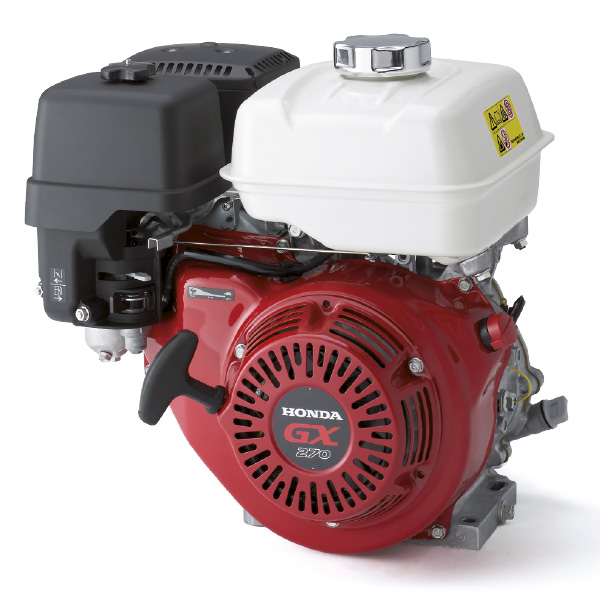

Honda GX270 professional engine

The Honda GX270 engine guarantees high combustion efficiency thanks to OHV technology , ensuring constant performance, reduced consumption and reliability in professional generators.

12V electric start

The electric start system allows for quick and repeatable starting, optimising the use of the Tecnogen H5000E petrol generator in professional contexts.

Integrated engine and system protections

The generator is equipped with low oil level protection , thermal protection on the outputs and exhaust gas silencer , to safeguard operational continuity and safety.

Reinforced anti-vibration structure

The tubular frame with anti-vibration mounts reduces mechanical stress, improving the stability and durability of the 4.5 kVA generator in continuous use.

Characteristics

• Professional petrol generator
• 230V single-phase generator set
• Maximum power 4.5 kVA / 3.6 kW
• Honda GX270 single-cylinder OHV 270 cm³ engine
• Engine speed 3000 RPM
• Manual recoil start
• Fuel consumption 1.5 L/h at 75% load
• 6 L fuel tank
• Low engine oil level protection system
• Thermal and magnetothermal protection on sockets
• Tubular frame with anti-vibration supports
• Integrated exhaust silencer
• AVR regulator provision on request
• ATS framework selectable from drop-down menu
• Industrial assembly made in Italy
