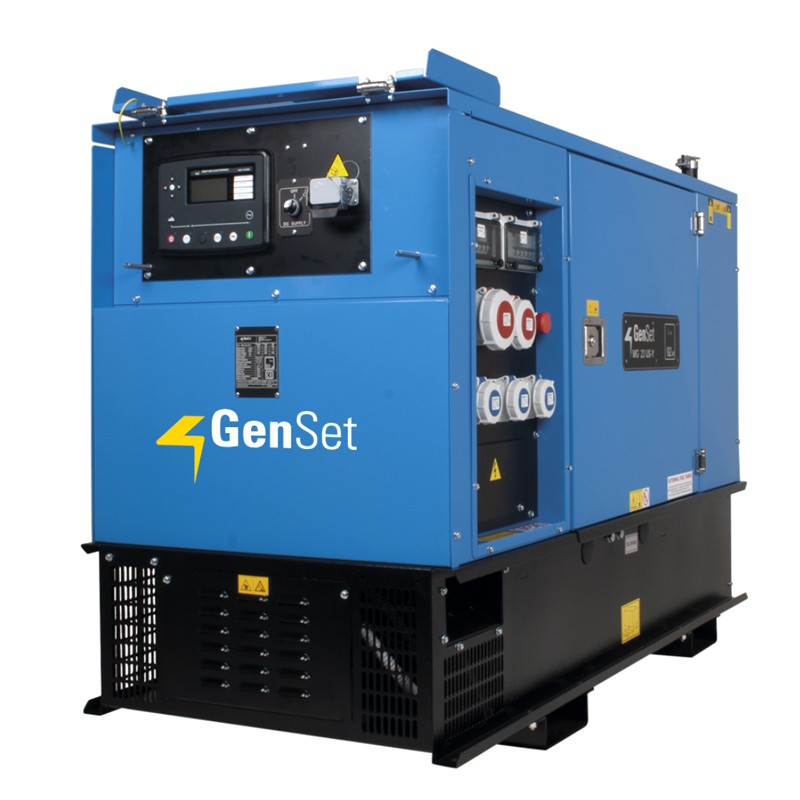

GenSet MG 16/23/35/55 US-Y and SS-Y Stage 0
Super-silenced Industrial Generator

GenSet MG 16/23 US-Y and 35/55 SS-Y Stage 0 - Yanmar Supersilent Generator from 16 to 44 kVA Dual Power

The GenSet MG 16, 23, 35 and 50 generator series represents the perfect synthesis of industrial power and precision engineering. Designed to offer consistent performance in all conditions, these generators are powered by 1500 rpm Yanmar liquid-cooled diesel engines , synonymous with longevity and extreme reliability. Versatility is at the heart of the range: the MG US-Y and SS-Y versions are configured to meet rigorous standards, including Stage V compliance for European emissions regulations. Thanks to super-silenced technology , these generators operate with minimal acoustic impact, making them ideal for noise-sensitive environments. Equipped with automatic voltage regulators ( AVRs ) and digital control systems, the MG models ensure clean and safe power delivery, protecting even the most delicate equipment during prolonged work sessions.

Available Models

You can choose between the following models:

• MG 16 US-Y - Yanmar 3TNV88 engine - max power 400 V 16 kVA and 230 V 5.3 kVA
• MG 23 US-Y - Yanmar 4TNV88 engine - max power 400 V 22 kVA and 230 V 7.3 kVA
• MG 35 SS-Y Stage 0 - Yanmar 4TNV98 engine - max power 400 V 33 kVA and 230 V 11 kVA
• MG 50 SS-Y Stage 0 - Yanmar 4TNV98T engine - max power 400 V 44 kVA and 230 V 14.7 kVA

The super-silenced MG 35-SS-Y and MG 50 SS-Y models are available on request.

Dimensions

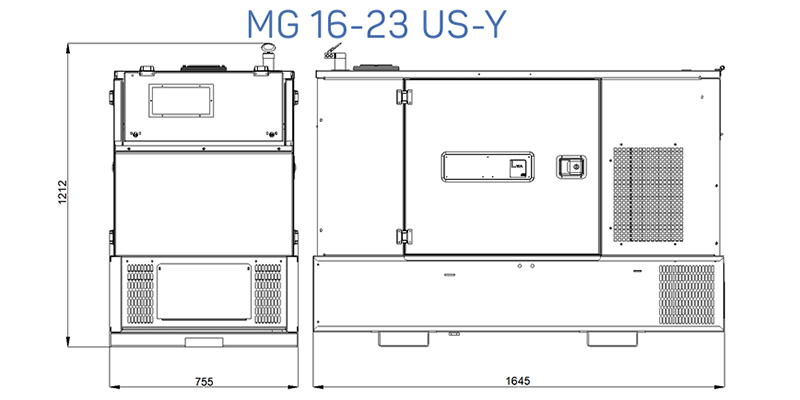

MG 16 I-SY and MG 23 I-SY models

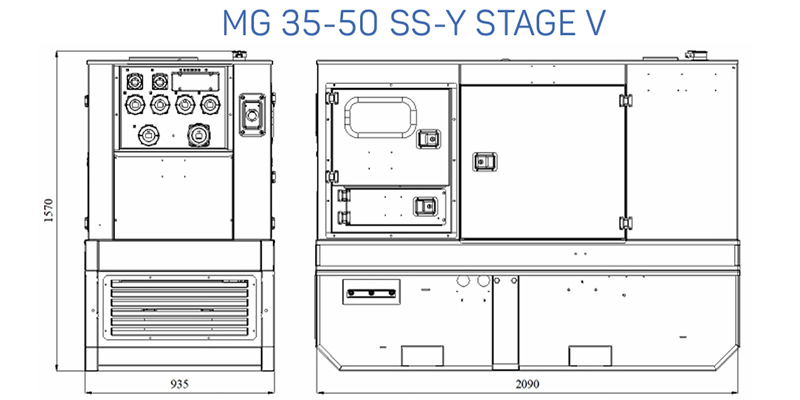

MG 33 I-SY and MG 50 I-SY models

Functional specifications

Yanmar diesel engine

The GenSet MG range is powered by 1500 rpm Yanmar diesel engines , designed for intensive use. Models range from the compact MG 16 US-Y (16 kVA three-phase) to the robust MG 50 SS-Y (44 kVA three-phase). Liquid cooling ensures the engine maintains optimal operating temperatures even under heavy loads, while the electric start ensures quick and effortless start-up.

Reduced environmental impact Stage V and silent operation

In compliance with European Regulation 2016/1628 , Stage V MG Series products drastically reduce environmental impact. The "super-silenced" feature is a cornerstone of this series: with sound power levels ranging between 92 Lwa and 93 Lwa , these generators allow you to work in urban areas or on construction sites at night without causing excessive disturbance.

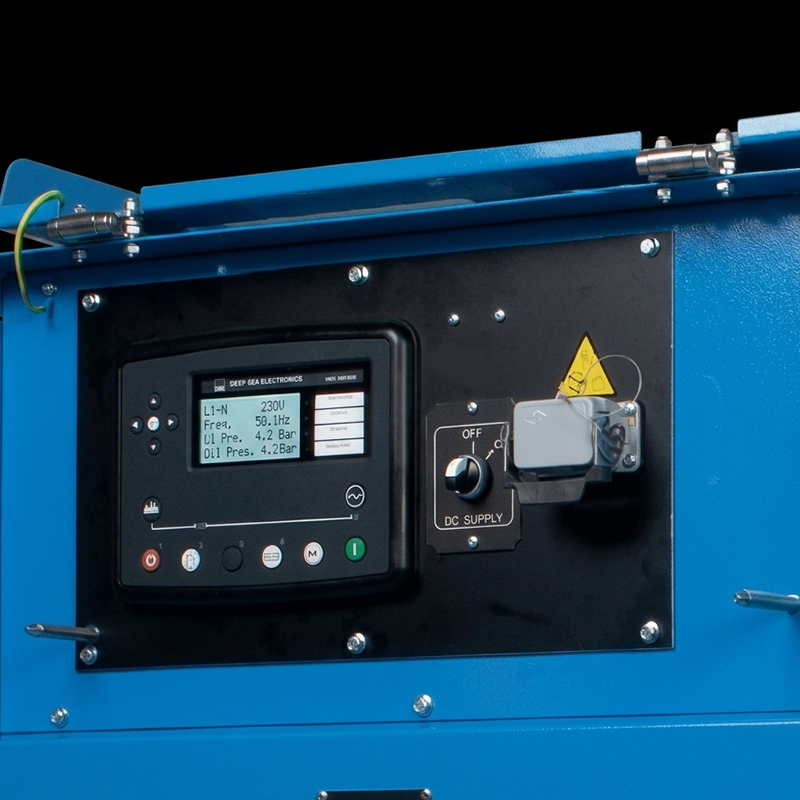

Digital control and AVR

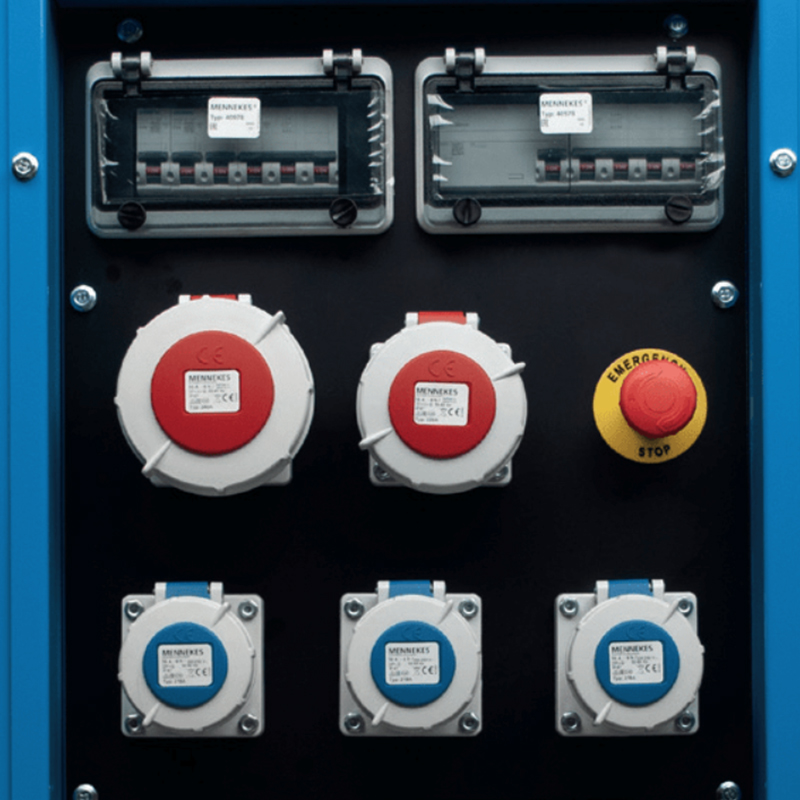

Each unit is equipped with a digital display logic that allows for constant monitoring of operating parameters. To ensure maximum safety of the connected loads, the system integrates an Automatic Voltage Regulator (AVR) , essential for preventing power surges that could damage electronic components. The socket panel is complete and versatile, including 16A/32A single-phase CEE outlets and 400V three-phase sockets to meet every construction site need.

Safety and Robust Design

The MG Series is built to last. Standard equipment includes:

• CEE single-phase socket 16 A, 230 V - 50 Hz 16 A, 230 V - 50 Hz EEC single-phase socket
• EEC three-phase socket 32 A, 400 V - 50 Hz 32 A, 400 V - 50 Hz EEC three-phase socket
• Relay or differential module
• Provision for automatic operation and/or remote control
• Power output protections
• Emergency stop button
• Fork passage
• Central lifting hook
• First fill liquids
• Central lifting hook
• Liquid collection tank
• Starter Battery

Scope of use

• Shipbuilding and Infrastructure : For powering heavy machinery and light towers in remote sites.
• Events and shows : where silent operation is essential to avoid interfering with the audio
• Emergency and Backup : thanks to the predisposition for the ATS panel, the GenSet MG 16/23/35/55 US-Y generators intervene promptly in the event of a blackout.
• Agriculture and Industry : for operational support for systems requiring constant and reliable three-phase power.

Characteristics

• Fixed silenced generator
• Dual Power single-phase and three-phase outputs
• Yanmar Diesel Engine
• Stage V
• Super-quiet, low-noise operation
• Stable current with AVR regulator
• Quick and easy electric start
• ATS predisposition with automatic remote control
• Robust construction for heavy-duty use
