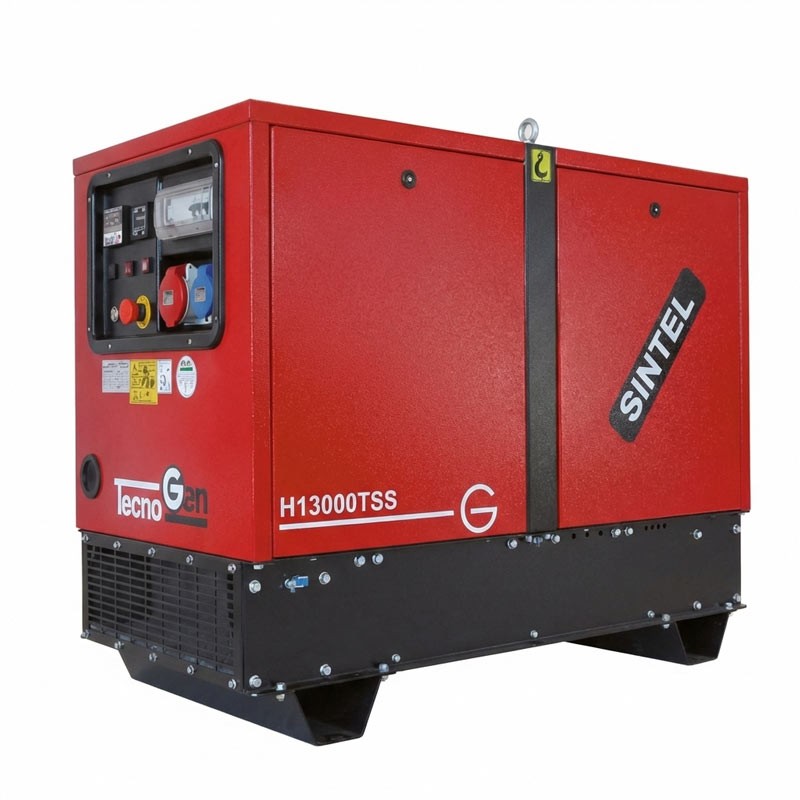

Tecnogen H8000TSS H15000TSS
Silenced Three-Phase Generator

Tecnogen H8000SS H15000TSS - Sintel Series Three-Phase Power Generators

The Tecnogen Sintel series offers the professional silenced three-phase generators H8000TSS and H15000TSS , Made in Italy , ideal for construction sites, industrial applications and continuous use . These air-cooled petrol generators with Honda engines ensure long-lasting reliability , stable output and resistance even in harsh operating conditions.

The H8000TSS and H15000TSS models operate at 3000 RPM at 50 Hz , providing three-phase voltage of 400V and cos φ 0.8 . Equipped with a soundproof cover , exhaust silencer and electric key start , they guarantee a compact, silent and immediately operational solution, perfect for professionals and industrial construction sites requiring reliable and continuous three-phase power .

AVAILABLE MODELS

The Sintel three-phase range from Tecnogen includes the following generator models, both with the option of standard or with ATS Auto Start :

• H8000TSS - Honda GX390 engine, 389 cc, 7.5 kVa
• H15000TSS - Honda GX690 engine, 688 cc, 13 kVa

TECHNICAL SPECIFICATIONS

The Tecnogen H8000TSS and H15000TSS generators are powered by petrol , air-cooled and have a 12V battery for electric start . Each model has an integrated tank , high-efficiency air filter and dedicated exhaust silencer , ensuring operational continuity and noise reduction. Power distribution is via a distribution box with socket and protection switch , with the option of adding optional differential protection .

In terms of performance, the Tecnogen H8000TSS delivers up to 7.5 kVA maximum at 50 Hz , with a 389 cc single-cylinder Honda GX390 engine , consumption of 1.9 L/h and a 15 L tank. The Tecnogen H15000TSS , top of the range of the three-phase series, reaches 13 kVA maximum at 50 Hz , with a 688 cc twin-cylinder Honda GX690 engine , consumption of 4.2 L/h and a 20 L tank. All models maintain a low noise level of 88 LWA , ensuring high performance in professional environments and industrial construction sites.

FUNCTIONAL SPECIFICATIONS

Integrated professional soundproofing

The soundproofing cover on Tecnogen Sintel generators is designed to reduce noise without compromising engine cooling. This solution allows the silent generator to be used even in noise-sensitive environments such as urban areas, events, or regulated construction sites.

High-performance Honda engine

Each model is equipped with a proven Honda GX engine , configured for continuous operation at 3600 rpm . The use of professional Honda engines ensures quick starts, optimized fuel consumption and a stable power curve, essential requirements for powering professional loads.

Electric start and simplified management

The 12V battery-powered electric key start allows for immediate start-up of the single-phase generator, reducing downtime. The QM330 and QM307 control panels , with the ACP0411 automatic panel option, ensure clear and safe management of operating functions.

Protected electrical distribution

The distribution box with circuit breaker ensures reliable power delivery that complies with professional standards. The option to integrate differential protection makes the Tecnogen H8000TSS and H15000TSS generators suitable for temporary installations and applications where electrical safety is a must.

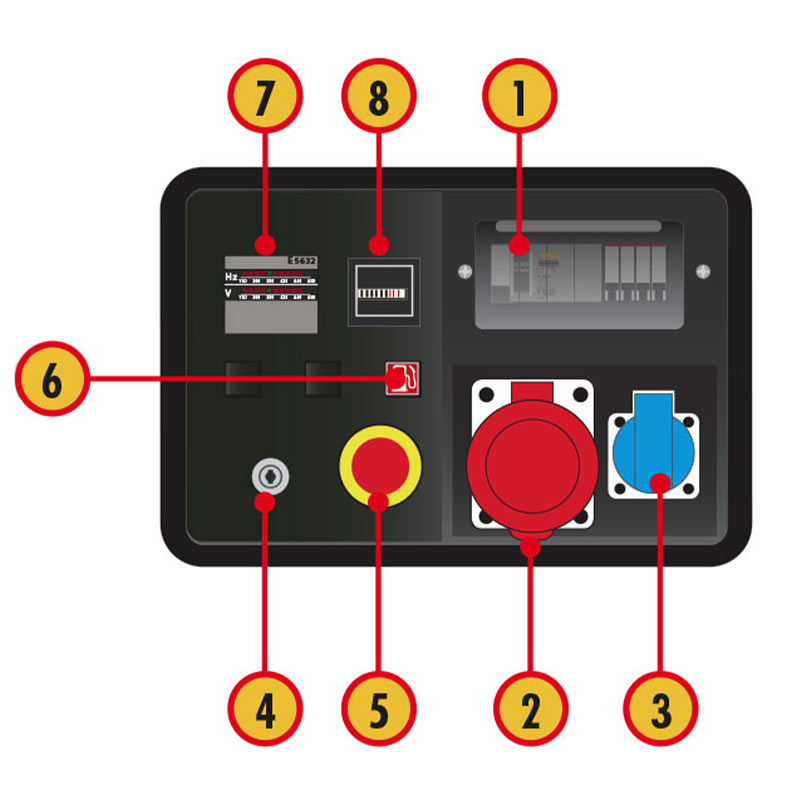

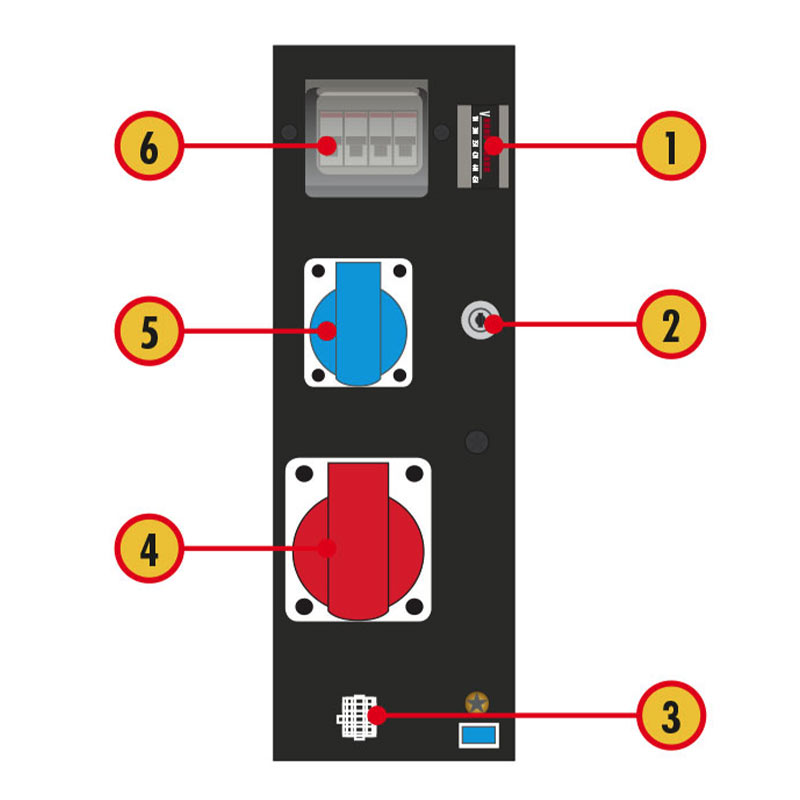

CONTROL PANELS

Characteristics

• Professional silent three-phase generators
• Honda GX air-cooled gasoline engine
• Electric start with 12V battery
• 400V - 60 Hz - cos φ 0.8
• Soundproof cover and exhaust silencer
• Made in Italy

Optional Equipment

• F11 - Start-up and shutdown kit with 15 m cable
• A064 - Manual trolley with pneumatic wheels and foldable handles
• A071 - Slow-towing trailer for construction site use
• ACP0411 - ATS electrical panel (for automatic generator start-up in the event of a blackout)
  • Electronic control unit
  • Voltmeter
  • Frequency meter
  • Network/group switching
  • Circuit breaker
  • Automatic battery charger
