Hyundai 65558
Silent Generator
1500 RPM Three-Phase
Warranty 2 years
14 days to change your mind
Shipped on Pallet

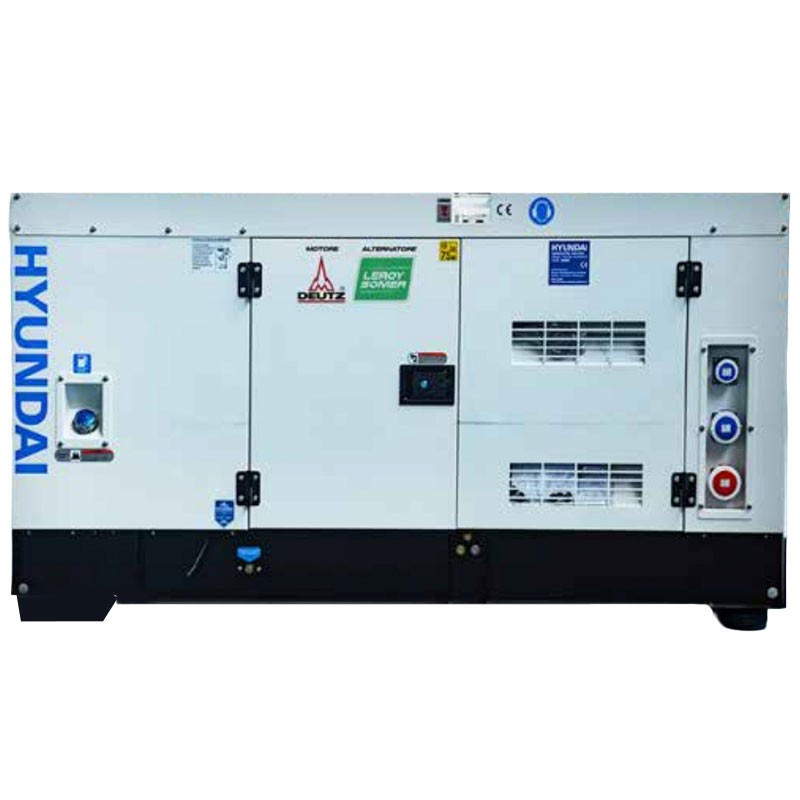

Hyundai 65558 - 1500 RPM Silent Diesel Generator 66 kW
The Hyundai 65558 is a diesel-powered industrial generator designed to ensure maximum reliability in professional and industrial settings. Thanks to its three-phase power supply and 4040 cc Deutz engine , this generator offers high performance with a nominal power of 48 kW/60 kVA and a maximum power of 53 kW/66 kVA , making it ideal for construction sites, production plants, and applications requiring power continuity.
The soundproofed hood and waterproof control panel allow for safe and silent use even in exposed or noisy environments, while liquid cooling ensures optimal engine temperature management during prolonged operations.
Technical Specifications
The Hyundai 65558 Generator is diesel-powered and equipped with a 120-litre tank , ensuring extended autonomy. The Deutz BF4M2012 4-cylinder direct-injection engine is lubricated by a 7.8-litre oil tank and cooled by a 15.9-litre liquid system , thus optimising performance even under high load conditions. The machine is designed to operate at engine speeds of 1500 rpm , complying with Stage II emission regulations, and guarantees reliable and stable operation thanks to the precision of its components.
The Leroy Somer TAL-A42-H alternator with SHUNT exciter ensures a stable current and a 400V - 50Hz connection with an amperage of 86.6 A. The generator has an IP23 protection rating and an H/H insulation rating , while the noise level is limited to 74 dB(A) at 7 metres , allowing use in professional environments without excessive interference.
Functional specifications
Waterproof control unit check
The waterproof control panel allows you to monitor and manage the entire generator even in harsh environmental conditions. All main controls are easily accessible and protected from humidity, ensuring safe and reliable management of professional operations.
Safety and emergency stop
The Hyundai 65558 control unit integrates an emergency button and automatic protection functions against low oil pressure, high engine temperature and excessive speed, ensuring immediate intervention and reducing the risk of damage or malfunctions.
Soundproofing casing
The soundproofed enclosure allows for quiet operation without compromising performance. The noise reduction of 74 dB(A) at 7 m makes the generator suitable for installations where acoustic comfort is essential.
Miniature circuit breaker
The miniature, waterproof circuit breaker offers advanced electrical protection and simple load management. This feature is essential for ensuring operational continuity and the safety of connected systems.
High quality engine and alternator
The Deutz engine and Leroy Somer alternator ensure energy efficiency and stable three-phase power generation. The combination of premium components makes the Hyundai 65558 a reliable professional choice for industrial and construction applications .
Characteristics
- Diesel Engine
- Liquid cooled
- Silenced
- Electric start
- Three-phase
- Waterproof roofing system
- Safety emergency button
- Multifunction display
Dimensions
Fields of application
- Industry
- Garage
- Commercial buildings
Technical Data
| Model | DPK-DDE-66 |
| Power Supply | 400V |
| Nominal Power | 60 kVA - 48 kW cos φ 0.8 |
| Max Power | 66 kVA - 53 kW cos φ 0.8 |
| Engine RPM | 1500 RPM |
| Amperage | 86.6 A |
| Protection | IP23 |
| Engine Brand | DEUTZ |
| Engine Model | BF4M2012 |
| Displacement | 4040 cc |
| Injection | Live |
| Cylinders | 4 |
| Start-up | Electric |
| Consumption at 100% load | 13.4 L/h |
| Fuel | Diesel |
| Tank Capacity | 120 L |
| Lubrication | 7.8 L |
| Cooling | Coolant |
| Refrigeration System | 15.9 L |
| Alternator | LEROY SOMER TAL-A42-H |
| Exciter | SHUNT |
| Control unit | DeepSea DSE6120MKIII |
| ATS | Optional |
| Dimensions | 290 x 120 x 125 cm |
| Weight | 1250 kg |
Technical Data
| Model | DPK-DDE-66 |
| Power Supply | 400V |
| Nominal Power | 60 kVA - 48 kW cos φ 0.8 |
| Max Power | 66 kVA - 53 kW cos φ 0.8 |
| Engine RPM | 1500 RPM |
| Amperage | 86.6 A |
| Protection | IP23 |
| Engine Brand | DEUTZ |
| Engine Model | BF4M2012 |
| Displacement | 4040 cc |
| Injection | Live |
| Cylinders | 4 |
| Start-up | Electric |
| Consumption at 100% load | 13.4 L/h |
| Fuel | Diesel |
| Tank Capacity | 120 L |
| Lubrication | 7.8 L |
| Cooling | Coolant |
| Refrigeration System | 15.9 L |
| Alternator | LEROY SOMER TAL-A42-H |
| Exciter | SHUNT |
| Control unit | DeepSea DSE6120MKIII |
| ATS | Optional |
| Dimensions | 290 x 120 x 125 cm |
| Weight | 1250 kg |
