Hyundai 65552
1500 RPM Silent Diesel Generator

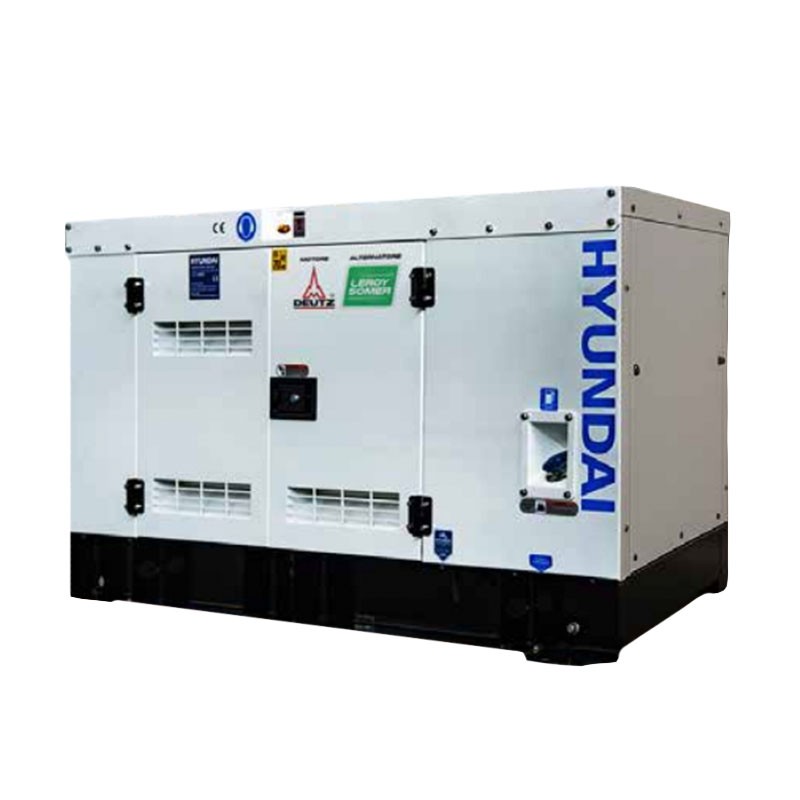

Hyundai 65552 - 1500 RPM Silent Diesel Generator 33 kW

The Hyundai 65552 is a 1500 RPM silent three-phase diesel generator designed for industrial and professional applications requiring operational continuity, energy efficiency and quiet operation. This industrial generator guarantees constant performance even under prolonged load conditions , offering a three-phase nominal power of 24kW/30kVA and a maximum power of 26kW/33kVA .

Equipped with a soundproof enclosure , liquid cooling , and a waterproof control panel , it is ideal for construction sites, industrial plants, fixed installations, and situations where reliability is a top priority. This Hyundai generator stands out for its integration of high-performance components, ensuring low fuel consumption, low noise , and simplified maintenance.

Technical Specifications

The Hyundai 65552 is powered by a 4-cylinder DEUTZ BFM3 G2 diesel engine with a displacement of 3168 cc and direct injection, capable of maintaining a constant speed of 1500 RPM . The diesel power supply is supported by a 53 L fuel tank , which allows for excellent operating autonomy in relation to consumption and power output. The engine has an advanced lubrication system with a 7.8 L tank to minimize wear and ensure continuous operation even under load. Liquid cooling is managed by a dedicated 15.8 L tank, ensuring stable operating temperatures even in hot environments or with prolonged use.

The LEROY SOMER TAL-A42-E alternator with SHUNT exciter offers high efficiency and reliability in power generation. Its performance is calibrated to provide an output voltage of 400V at 50Hz with a current rating of 43.3A , ensuring optimal voltage stability for three-phase industrial equipment. The system features H/H insulation class , which increases its operating life and thermal resistance. With an IP23 degree of protection , the unit is suitable for harsh environmental conditions, maintaining safe operation against dust and water splashes. All electrical components, including the waterproof miniature circuit breaker, are protected to ensure maximum safety in industrial settings.

Functional specifications

Liquid cooling

The liquid cooling system ensures constant and precise thermal control, essential for operating a diesel generator at 1500 RPM. The coolant, managed by a 15.8-liter tank, ensures that the engine maintains the ideal temperature even during long periods of continuous operation, preventing overheating and optimizing the life of the unit . This technology allows the Hyundai 65552 to offer stable and reliable performance, reducing the risk of downtime.

Waterproof control panel

The waterproof control panel allows for safe operation even in harsh environmental conditions, protecting the electronic components from humidity and dust. The supervision system integrates automatic monitoring functions for key parameters , including low oil pressure, high engine temperature, overspeed, and malfunction reporting. The interface allows for intuitive and immediate control , reducing intervention times and ensuring constant generator supervision.

Safety system with emergency button

The emergency safety button allows the unit to be stopped immediately in the event of critical situations, ensuring a high level of protection for the operator and the system. This function, along with the automatic shutdown in the event of faults detected by the control unit, is a fundamental safety feature in industrial settings, where service continuity must coexist with risk prevention.

Silent Operation

The soundproofed enclosure of the Hyundai 65552 silent diesel generator reduces noise to just 70 dB(A) at 7 m , allowing it to be used in noise-sensitive environments or near operational areas. The enclosure is designed to limit sound leakage without compromising ventilation and heat dissipation, ensuring comfort and productivity on the job site.

Industrial reliability from DEUTZ and LEROY SOMER

The combination of a DEUTZ engine and a LEROY SOMER alternator guarantees build quality and professional performance. The former ensures mechanical efficiency and low consumption, while the latter guarantees voltage stability and long operating life. This synergy makes the Hyundai 65552 three-phase generator a device designed for continuous applications, capable of supporting variable loads with certified reliability.

Characteristics

• Diesel Engine
• Liquid cooled
• Silenced
• Electric start
• Three-phase
• Waterproof roofing system
• Safety emergency button
• Multifunction display

Dimensions

Fields of application

• Industry
• Garage
• Commercial buildings
