Genset MG 6/4 ID/AE-Y
Triphase Generator 6.5 kW - Yanamar L100 V Engine
MPN: MG-6/4-I-D/AE-Y
€3,595.00
€2,946.72 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet

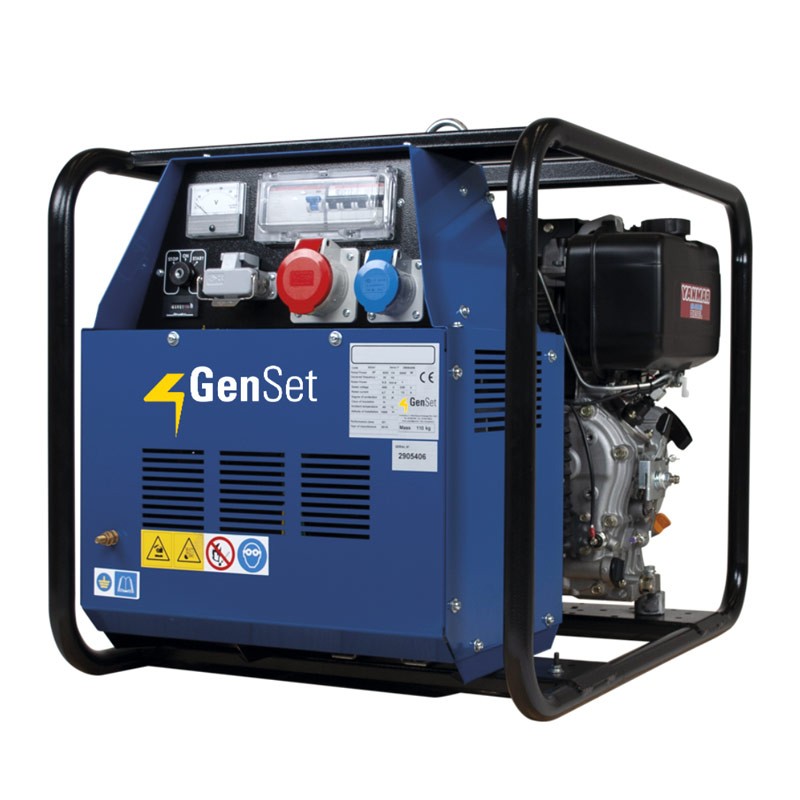

Genset MG 6/4 ID/AE-Y - Professional Three-Phase Generator
The Genset MG 6/4 ID/AE-Y three-phase generator is a reliable and compact professional generator designed for industrial, agricultural, and emergency applications. Equipped with a Yanmar L100N diesel engine running at 3000 rpm, it guarantees efficiency and durability. The Genset MG 6/4 ID/AE-Y has a maximum power of 6.8 kVA (5.44 kW) with a power factor of 0.8 and a voltage of 400/230 V. The 5.4 L fuel tank guarantees over 5 hours of autonomy at 75% load.
The generator is mounted on a steel frame with anti-vibration mounts and a soundproof casing , for quiet and safe operation. It includes a manual control panel with thermal protection and electric start option. Its compact design and easy maintenance make it ideal for heavy-duty applications where reliability and practicality are essential.
Functional specifications
Starter Battery
This diesel generator features an electric starter and is ready for automatic starting via a convenient AMF-ATS connector, easily accessible from the instrument panel. Integration is simple even in more complex systems, ensuring maximum operating efficiency.
Sturdy structure and lifting hook
The lifting hook integrated into the frame allows for quick and safe handling, ideal for situations where mobility is essential. The compact structure weighs 110 kg .
Stage V engine
It has a Yanmar L100 V stage engine with 8.8 HP of power (6.5 kW), 435 cc with a tank capacity of 5.5 L and fuel consumption of 1.5 L/h.
Drawing with measurements indicated in mm
Instrumentation
Present:
- Low oil pressure and battery charger failure warning light
- 1 x 16 A 400 V three-phase socket
- 1 x single-phase socket 16 A 230 V
- Starter Battery
- Hour meter
- Voltmeter
- Power output protections
- Differential thermal switch
- Connector for AMF-ATS panel and/or remote control
- Lifting hook
Scope of use
- Construction: power supply for power tools and construction sites
- Events: Temporary power support for sound systems, lighting, and stands
- Emergencies: perfect in case of blackouts
- Workshop and industry
Characteristics
- Yanmar Diesel Generator
- Three-phase 6.5 kW - Single-phase 2.1 kW
- Stage V Diesel Engine
- Yanmar L 100 engine
- Power 8.8 HP 435 cc
- 5.5 L tank, consumption 1.5 L/h
- Sturdy and Compact Frame
- Starter Battery
Technical Data
| Code | MG 6/4 ID/AE-Y |
| Output Voltage | 400V |
| Power | 8.8 HP - 6.5 kW |
| Motor | Yanmar L100 Stage V |
| Phase | Single-phase |
| Max Three-Phase Power | 6.5 KVA - 5.2 KW cos φ 0.8 |
| Max Single Phase Power | 2.1 KVA - 1.68 KW cos φ 0.8 |
| 400V socket | 1 x 16 A |
| 230 V sockets | 1 x 16 A |
| Fuel | Diesel |
| Reservoir | 5.5 L |
| Start-up | Electric |
| Cooling | Air |
| Insulation | H |
| Protection | IP 23 |
| Room temperature | 40°C |
| Dimensions | 82 x 58 x 61 cm |
| Weight | 110 kg |
Technical Data
| Code | MG 6/4 ID/AE-Y |
| Output Voltage | 400V |
| Power | 8.8 HP - 6.5 kW |
| Motor | Yanmar L100 Stage V |
| Phase | Single-phase |
| Max Three-Phase Power | 6.5 KVA - 5.2 KW cos φ 0.8 |
| Max Single Phase Power | 2.1 KVA - 1.68 KW cos φ 0.8 |
| 400V socket | 1 x 16 A |
| 230 V sockets | 1 x 16 A |
| Fuel | Diesel |
| Reservoir | 5.5 L |
| Start-up | Electric |
| Cooling | Air |
| Insulation | H |
| Protection | IP 23 |
| Room temperature | 40°C |
| Dimensions | 82 x 58 x 61 cm |
| Weight | 110 kg |
