Genset MG 6000 iD/AE-Y
Diesel Generator 6.8 kW - Yanmar L100 Engine
MPN: MG-6000-I-D/AE-Y
€3,399.00
€2,786.07 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet
Genset MG 6000 ID/AE-Y - Yanmar Diesel Generator 6.5 kW
The MG 6000 ID/AE-Y generator is a compact, efficient, and versatile solution, ideal for construction, events, emergencies, and rental applications. Equipped with a 3000 rpm Yanmar diesel engine and electric start, it offers reliable single-phase power thanks to two 16 A and 32 A – 230 V sockets. The generator is equipped with low oil pressure and battery warning lights, an hour meter, and a voltmeter for constant performance monitoring.
The robust structure includes a frame with lifting hook , anti-vibration mounts and air intake grilles . The Stage V engine guarantees low emissions and the AMF-ATS connector allows integration with automatic systems or remote controls. It is a generator designed to guarantee reliability, autonomy and ease of use even in harsh conditions.
Functional specifications
Starter Battery
This diesel generator features an electric starter and is ready for automatic starting via a convenient AMF-ATS connector, easily accessible from the instrument panel. Integration is simple even in more complex systems, ensuring maximum operating efficiency.
Sturdy structure and lifting hook
The lifting hook integrated into the frame allows for quick and safe handling, ideal for situations where mobility is essential. The compact structure weighs 110 kg .

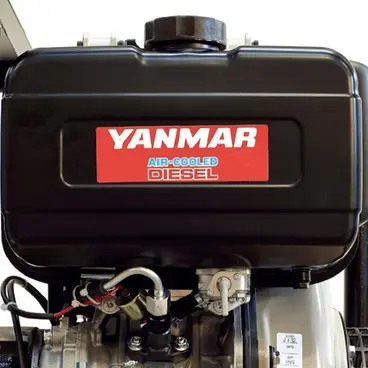

Stage V engine
It has a Yanmar L100 V stage engine with 8.8 HP of power (6.5 kW), 435 cc with a tank capacity of 5.5 L and fuel consumption of 1.5 L/h.
Drawing with measurements indicated in mm
Instrumentation
Present:
- Low oil pressure and battery charger failure warning light
- 1 x single-phase socket 16 A 230 V
- 1 x single-phase socket 32 A 230 V
- Starter Battery
- Hour meter
- Voltmeter
- Power output protections
- Differential thermal switch
- Connector for AMF-ATS panel and/or remote control
- Lifting hook
Scope of use
- Construction: power supply for power tools and construction sites
- Events: Temporary power support for sound systems, lighting, and stands
- Emergencies: perfect in case of blackouts
Characteristics
- Yanmar Diesel Generator
- Diesel engine 6.5 kW
- Yanmarn L 100 V engine
- Power 8.8 HP 435 cc
- 5.5 L tank, consumption 1.5 L/h
- Sturdy and Compact Frame
- Starter Battery
Technical Data
| Code | MG 6000 ID /AE - Y |
| Output Voltage | 230V |
| Power | 8.8 HP - 6.5 kW |
| Motor | Yanmar L100 Stage V |
| Phase | Single-phase |
| Max Output Power | 6.8 KVA - 5.44 KW cos φ 0.8 |
| 230 V sockets | 1 x 16 A - 1 x 32 A |
| Fuel | Diesel |
| Reservoir | 5.5 L |
| Start-up | Electric |
| Cooling | Air |
| Insulation | H |
| Protection | IP 23 |
| Room temperature | 40°C |
| Dimensions | 82 x 58 x 61 cm |
| Weight | 110 kg |
Technical Data
| Code | MG 6000 ID /AE - Y |
| Output Voltage | 230V |
| Power | 8.8 HP - 6.5 kW |
| Motor | Yanmar L100 Stage V |
| Phase | Single-phase |
| Max Output Power | 6.8 KVA - 5.44 KW cos φ 0.8 |
| 230 V sockets | 1 x 16 A - 1 x 32 A |
| Fuel | Diesel |
| Reservoir | 5.5 L |
| Start-up | Electric |
| Cooling | Air |
| Insulation | H |
| Protection | IP 23 |
| Room temperature | 40°C |
| Dimensions | 82 x 58 x 61 cm |
| Weight | 110 kg |
