Genset MG 5000 ID/AE-Y
Diesel Generator 4.3 kW - Yanmar L70 Engine
MPN: MG-5000-I-D/AE-Y
€3,125.00
€2,561.48 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet

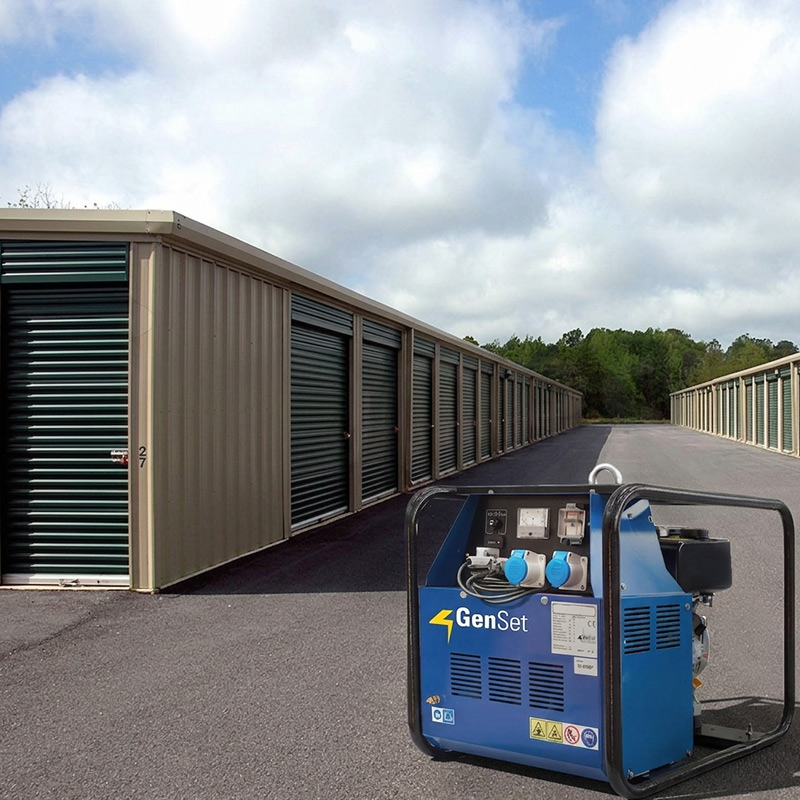

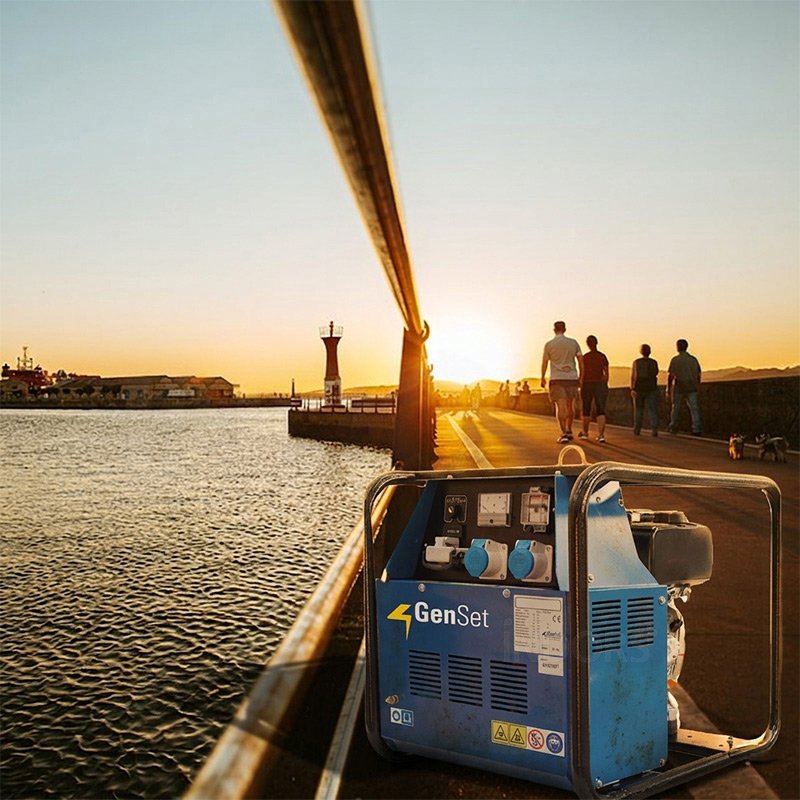

Genset MG 5000 ID/AE-Y - Yanmar Diesel Generator 4.3 kW
The MG 5000 ID/AE-Y diesel generator is the ideal solution for those seeking reliability, compactness, and energy efficiency in a single product. Equipped with a 3000 rpm Yanmar diesel engine , this 4.3 kW (kVA) single-phase generator is perfect for professional, emergency, and rental applications. High performance in a compact size.
The Genmac MG 5000 ID/AE-Y offers excellent portability without compromising power. Low fuel consumption at 75% load ( 1 L/h ) makes it ideal for extended use, optimizing operating costs.
Functional specifications
Starter Battery
This diesel generator features an electric starter and is ready for automatic starting via a convenient AMF-ATS connector, easily accessible from the instrument panel. Integration is simple even in more complex systems, ensuring maximum operating efficiency.
Sturdy structure and lifting hook
The lifting hook integrated into the frame allows for quick and safe handling, ideal for environments where mobility is essential. The structure is compact, weighing 87 kg .
Drawing with measurements indicated in mm
Stage V engine
It has a stage V engine with 6 HP of power (4.5 kW), 320 cc with a 3.5 L tank capacity and fuel consumption of 1 L/h.
Instrumentation
Present:
- Low oil pressure and battery charger failure warning light
- 2 x single-phase sockets 16 A 230 V
- Hour meter
- Voltmeter
- Power output protections
- Differential thermal switch
- Connector for AMF-ATS panel and/or remote control
- Lifting hook
Scope of use
- Construction: power supply for power tools and construction sites
- Events: Temporary power support for sound systems, lighting, and stands
- Emergencies: perfect in case of blackouts
Characteristics
- Yanmar Diesel Generator
- Diesel engine 4.3 kW
- Yanmar L 70 V engine
- Power 6 HP 320 cc
- 3.5 L tank, consumption 1 L/h
- Sturdy and Compact Frame
- Starter Battery
Technical Data
| Code | MG 5000 ID /AE - Y |
| Output Voltage | 230V |
| Power | 6 HP - 4.5 kW |
| Motor | Yanmar L70 Stage V |
| Phase | Single-phase |
| Max Output Power | 4.3KVA - 3.44KW cos φ 8 |
| 16 A 230 V sockets | 2 |
| Consumption | 1 L/h at 75% load |
| Fuel | Diesel |
| Reservoir | 3.5 L |
| Start-up | Electric |
| Cooling | Air |
| Insulation | H |
| Protection | IP 23 |
| Room temperature | 40°C |
| Dimensions | 72.5 x 51.5 x 58.5 cm |
| Weight | 87 kg |
Technical Data
| Code | MG 5000 ID /AE - Y |
| Output Voltage | 230V |
| Power | 6 HP - 4.5 kW |
| Motor | Yanmar L70 Stage V |
| Phase | Single-phase |
| Max Output Power | 4.3KVA - 3.44KW cos φ 8 |
| 16 A 230 V sockets | 2 |
| Consumption | 1 L/h at 75% load |
| Fuel | Diesel |
| Reservoir | 3.5 L |
| Start-up | Electric |
| Cooling | Air |
| Insulation | H |
| Protection | IP 23 |
| Room temperature | 40°C |
| Dimensions | 72.5 x 51.5 x 58.5 cm |
| Weight | 87 kg |
