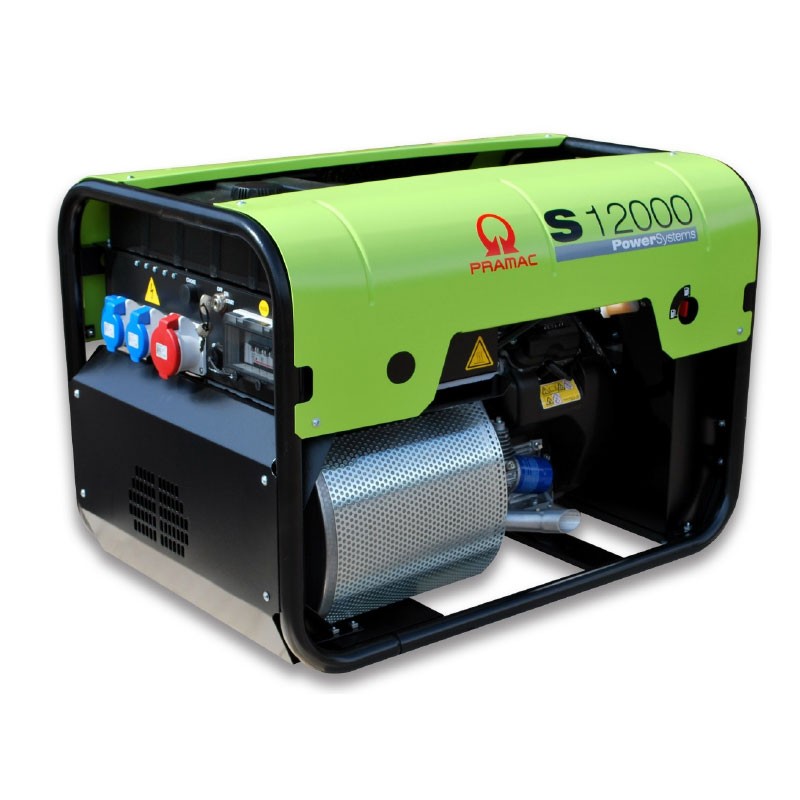

Pramac S12000 Three-Phase
13.9 kW Petrol Generator - Honda GX630 Engine

Pramac S12000 Three-Phase code PD123TH200H - 13.9 kW Petrol Generator

The S12000 three-phase 400V generator represents the pinnacle of portable generators, combining power, reliability, and above-average battery life. Designed to ensure high performance in both emergency and continuous use, the Pramac S12000 stands out for its build quality and standard features. Equipped with a 20.8 HP , 688 cc , air-cooled Honda GX630 petrol engine , compliant with Stage V emissions standards, it ensures stable power delivery with optimized fuel consumption.

The electric start system, comprehensive control panel, and 24L fuel tank offer convenience and long battery life. The Mecc Alte alternator, combined with capacitor-based voltage regulation, ensures a constant and safe flow of power. Ideal for professional applications, construction, events, or emergency situations, the three-phase S12000 is a safe choice for those seeking a powerful, efficient, and easy-to-use power source.

Electric start

• S12000 cod. PD123TH200H with manual control panel CONN predisposed automatic AMF)+AVR + DPP

AMF Ready - PLEASE NOTE: AMF to be purchased separately

The Pramac AMF automatic control panel is an accessory for S Series generators equipped with a CONN manual control panel . It automatically starts the generator in the event of a blackout and stops it when the mains power returns. Compatible with single-phase and three-phase power supplies, it is installed in a metal wall or floor box . Connection is quick thanks to the plug-in connector, allowing for practical and immediate use. Also included is an RSS radio control with a max. range of 90 m in open field.

AVR voltage regulator - included

An AVR (Automatic Voltage Regulator) is an electronic device that automatically regulates the output voltage of a generator. It maintains stable voltage by compensating for load variations, preventing overvoltages or sags. It is essential for protecting sensitive equipment and ensuring reliable, consistent generator operation.

Differential protection DPP - included

The DPP (Digital Protection Panel) differential protection is an advanced electronic safety system integrated into Pramac generators that detects any earth leakage currents (typical in the event of accidental contacts or faults in electrical devices).

Functional specifications

High performance generator

The Pramac S12000 three-phase generator guarantees high performance thanks to its emergency power (ESP) of 11.1 kW (13.9 kVA) and continuous nominal power (COP) of 9.5 kW (11.8 kVA) . These values make it ideal for both temporary applications and continuous use, maintaining efficiency even under demanding loads.

Honda GX630 engine

The heart of the Pramac S12000 three-phase is the Honda GX630 engine , one of the most reliable on the market. With a displacement of 688 cc, 20.8 HP and air cooling , it offers constant performance at 3600 rpm . The electric starting system and mechanical speed regulator allow for simple and safe control, while compatibility with petrol guarantees ease of use and refueling anywhere.

24 L fuel tank

Equipped with a 24 L tank , the generator ensures a runtime of 5.77 hours at 75% load and 4.26 hours at 100% . Consumption stands at 4.16 L/h at 75% and 5.64 L/h at 100% load , allowing for the perfect balance between power and economy. This makes it ideal for construction sites, events or prolonged use without interruptions.

Robust and functional casing

The Pramac S12000 single-phase petrol generator features a robust and functional canopy with large-capacity tanks to ensure above-average autonomy. This Pramac's tank has a capacity of 24 L.

Mecc Alte alternator and IP23 protection

The Mecc Alte brushless alternator with IP23 protection ensures reliability even in demanding working conditions.

Commands

Present:

• OFF-ON-START switch
• Air Control Button
• Connector (preparation for remote control via AMF accessories automatic panel; RSS radio remote control)

Protections

• Magnetothermal Protection
• Differential Protection
• Oil Guard

Sockets

The following sockets are present:

• 1x SCHUKO 230V 16A IP54
• 2x 2P+T CEE 230V 16A IP44
• 1 x 3P+N+T CEE 400V 16A IP44

Scope of use

• Emergency and blackout applications
• Construction sites and industrial plants
• Agricultural pumps and irrigation systems
• Events and fairs
• Technical Services and Mobile Workshops

Characteristics

• Three-phase current generator
• Honda GX630 engine
• Power 13.9 kWA
• Integrated electric start
• AVR
• Oversized frame tubes
• Oversized tanks
• Control panels
• Handling kit not included
• Ideal for professional applications

How to choose a portable generator

Below are some helpful tips for choosing the product that's best for you:

• Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
• Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Amount of power : the need for energy support must be assessed

Don't hesitate to contact us with any questions or if you need further information!
