Pramac GA 20000
Generator - Gas and LPG Powerknight

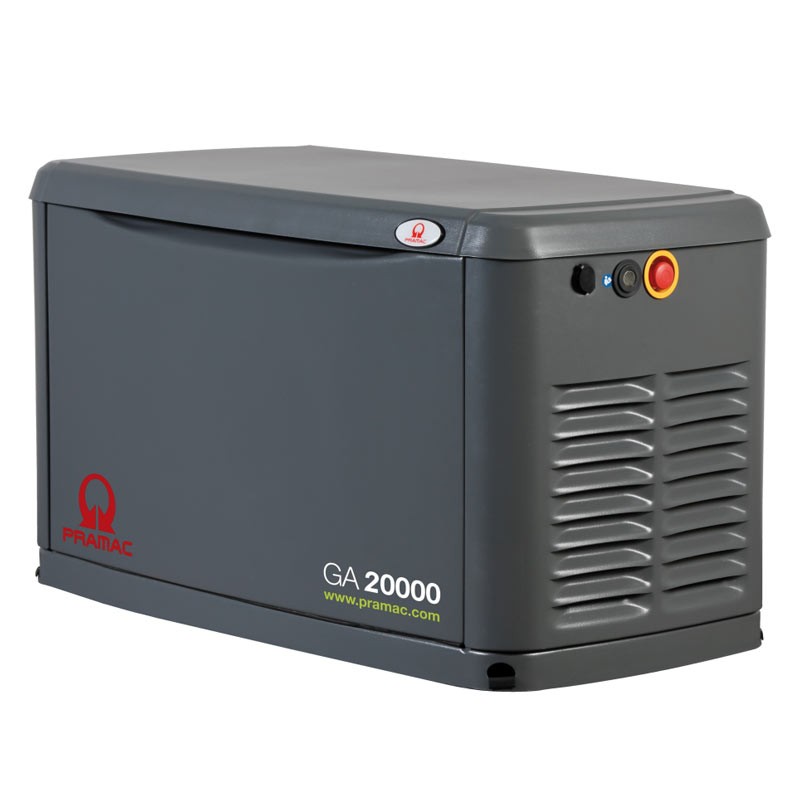

Pramac GA20000 - Powerknight Generator with Methane or LPG Power Supply

The Pramac GA 20000 generator is a reliable and high-performance solution for power continuity in domestic and business environments. It runs on natural gas or LPG , with direct connection to the gas network , eliminating the need for manual refueling and reducing CO₂ emissions .

Provision for 45 Amp LTS automatic switching.
Switch panel NOT INCLUDED.

Equipped with a Generac G-Force 1000 Series OHV 20 kW engine, it guarantees stable power delivery , low consumption and simplified maintenance . The automatic starting system, Quiet-Test technology for reduced noise and remote management via the Mobile Link app make it ideal for those who need continuous emergency power without manual intervention.

TECHNICAL SPECIFICATIONS

Pramac GA 20000 is powered in three-phase 400V , equipped with electric start and predisposition for automatic switching LTS 45A . It is possible to purchase the LTS switching panel separately. Powered by LPG or natural gas , it guarantees energy continuity thanks to the possibility of direct connection to the gas network, eliminating the need for manual refueling.

With a consumption of 7.02 m³/h for methane and 10.86 L/h for LPG at 100% load, this generator ensures an optimal balance between performance and costs. The air-cooled G-Force engine , running at 3000 RPM , integrates a pressurized oil lubrication system with 1.8 L crankcase, extending the service life and reducing maintenance interventions. The noise level is contained at 67 dB(A) in standard operation and drops to 59 dB(A) in Quiet-Test mode, for comfortable use even in the home.

• L: 123.3 cm
• W: 64.8 cm
• H: 73.3 cm

FUNCTIONAL SPECIFICATIONS

Eco-friendly gas generator

Natural gas or LPG fueling significantly reduces CO₂ and particulate emissions , improving energy efficiency and simplifying fuel management. Direct connection to the gas grid ensures operational continuity regardless of the availability of electricity.

G-Force motor designed for long life

The heart of the Pramac GA 20000 is the Generac G-Force engine , designed to ensure reliability and long life in continuous applications. The advanced design with smooth cylinder walls and molybdenum rings reduces oil consumption and improves fuel efficiency . The " Spinky-Iok " cast iron walls ensure strength and durability , while the electronic ignition guarantees quick starts. The full pressure lubrication system extends service intervals up to 2 years, and safety devices protect the engine from low oil pressure damage and overheating.

Advanced silence with Quiet-Test

The Quiet-Test function lowers the rpm during automatic test cycles, minimizing noise and consumption. This mode makes the generator ideal for installations in residential areas , where acoustic comfort is a priority.

Evolution control unit

The Evolution control unit offers an advanced interface with illuminated and sealed buttons for simple and weatherproof control. It monitors the mains voltage and manages customizable delays to avoid unnecessary starts . It supports programmed heating , cooling and engine exercise cycles to ensure efficiency and durability . The intelligent charger adapts charging based on temperature and battery type (lead or AGM), while the automatic switch protects against overloads . The electronic regulator ensures stable power management.

Remote monitoring via Mobile Link app

Remote management via the Mobile Link app allows you to check the generator status in real time, schedule maintenance and receive automatic notifications, keeping the device always efficient and ready for use, even in the owner's absence.

Flexible installation and compact design

This Pramac generator can be installed just 50 cm from the wall thanks to its compact design , comparable to an external air conditioning unit . The Rhino Coat aluminium case , resistant to atmospheric agents and winds up to 240 km/h, guarantees protection and durability . The lockable roof and the lifting front panel facilitate maintenance . The closed silencer reduces noise, improving safety . The installation system includes a 305 mm flexible connector to absorb vibrations , a composite mounting plate against settlement and an integrated sediment trap to protect the engine and fuel regulator .

Automatic operation in case of blackout

In the event of a power failure, the automatic start-up system activates the generator in a few seconds, ensuring immediate energy continuity for household appliances or professional equipment, without the need for manual intervention.

LTS Switchboard

The Load Transfer Switch (LTS) is an optional accessory , not included with the generator, designed to automatically manage the switching between the mains and the generator in backup applications. It consists of an independent cabinet that can be installed separately and does not require internal logic, as the automatic control is entirely managed by the generator control unit . It ensures rapid restoration of power in the event of a blackout, improving system reliability .

Watch the video

Characteristics

• Three-phase generator 400V
• For residential and professional use
• Generac G-Force 1000 OHV engine
• Power 20 kVA
• Electronic speed regulator
• RhinoCoat aluminum casing
• True Power Technology
• Multilingual LCD display
• LED indicators
• Fuel hose flexible connector
• Wi-Fi communication standards
• Wi-Fi Remote Monitoring with Mobile Link via App
• Compatibility with LTS switchboard
