Pramac S8000 Three-Phase
8.3 kW Robust Generator
Honda GX390 Engine

Pramac S8000 Three-Phase - 8.3 kW Gasoline Generator for Industry and Construction Sites

The Pramac S8000 three-phase 400V generator is the ideal choice for those looking for a reliable, powerful power source suitable for intensive use. Powered by a Honda GX390 petrol engine and featuring an electric start , this Pramac S series generator is designed to ensure maximum efficiency even in emergency conditions or continuous use. With a robust steel structure, protective side covers and a generous 27 L tank , the Pramac S8000 offers superior performance and great autonomy. The three-phase generator also integrates a transport kit and advanced protections such as the Oil Guard system and muffler with spark arrester .

Certified according to the ISO8528 standard, it provides power up to 8.3 kW (kVA) in emergency mode (ESP) and 6.6 kW (kVA) in continuous mode (COP), making it perfect for professional and industrial applications . A safe and high-performance alternative for those who need power where and when it is needed, without compromise.

Electric start

Available models

Selectable from the drop-down menu:

• S8000 cod. PD652TH2Z01 with manual control panel CONN (automatic AMF ready)
• S8000 cod. PD652TH2Z05 with control panel (automatic AMF ready) + AVR + DPP

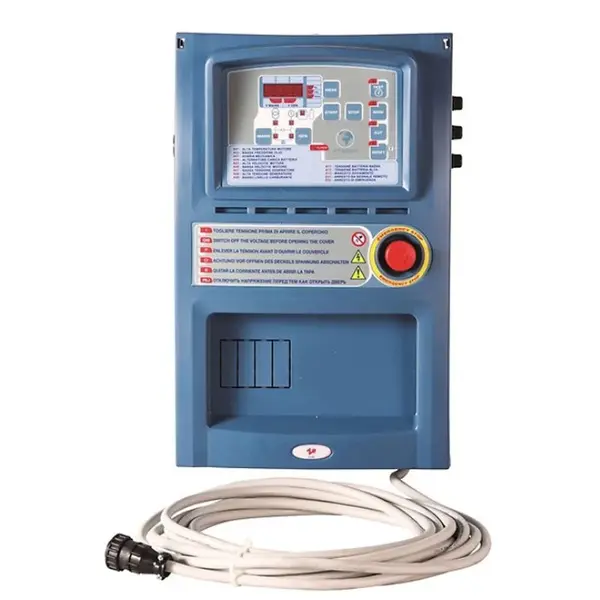

AMF Ready - PLEASE NOTE: AMF to be purchased separately

The Pramac AMF automatic control panel is an accessory for S Series generators equipped with a CONN manual control panel . It automatically starts the generator in the event of a blackout and stops it when the mains power returns. Compatible with single-phase and three-phase power supplies, it is installed in a metal wall or floor box . Connection is quick thanks to the plug-in connector, allowing for practical and immediate use. Also included is an RSS radio control with a max. range of 90 m in open field.

AVR Voltage Regulator - including part numbers PD652TH2Z01 and PD652TH2Z05

An AVR (Automatic Voltage Regulator) is an electronic device that automatically regulates the output voltage of a generator. It maintains stable voltage by compensating for load variations, preventing overvoltages or sags. It is essential for protecting sensitive equipment and ensuring reliable, consistent generator operation.

Differential protection DPP - included code PD652TH2Z05

The DPP (Digital Protection Panel) differential protection is an advanced electronic safety system integrated into Pramac generators that detects any earth leakage currents (typical in the event of accidental contacts or faults in electrical devices).

Handling Kit - included cod. PD652TH2Z01 and PD652TH2Z05

The transport kit, supplied pre-installed and integrated into the frame, consists of two solid rubber wheels and a retractable handle complete with non-slip rubber. There are also two lifting points on the upper part of the frame.

Functional specifications

Honda GX390 Engine

The Honda GX390 engine is the beating heart of the Pramac S8000 three-phase generator. With OHV configuration and Digital CDI variable valve timing system, it guarantees greater power, reduced fuel consumption and low emissions. A 4-stroke petrol engine with a cast iron cylinder, 389 cc , this Honda engine has a net power of 11.7 HP at 3600 rpm.

27 L fuel tank

Equipped with a 27 L petrol fuel tank , the three-phase Pramac S8000 guarantees a range of 9.41 h at 100% load, with a fuel consumption of 2.86 L/h .

It has:

• Increased tank capacity
• Fuel level indicator
• Bayonet fuel filler cap
• Cup fuel pre-filter
• Fuel tap (located on the front of the control panel)
• In-line fuel filter

Steel frame with load-bearing tubular

The Pramac S8000 three-phase petrol generator has a load-bearing and protective tubular steel frame (roll bar) with protective side casings in sheet steel (removable and with adequate openings to facilitate routine maintenance operations).

Mecc Alte alternator and IP23 protection

The Pramac S8000 is easy to transport and install. The sturdy casing protects the internal components from external agents, extending their life even in dusty or humid environments. The Mecc Alte brushless alternator with IP23 protection ensures reliability even in demanding working conditions.

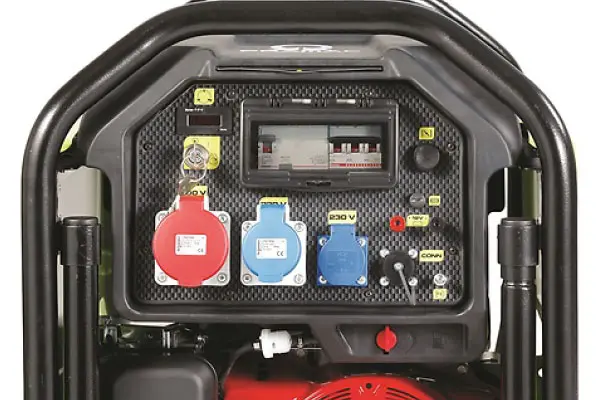

Commands

Present:

• OFF-ON switch
• Air Control Button
• Connector (preparation for remote control via AMF accessories automatic panel; RSS radio remote control)

Instrumentation

• Voltmeter
• Frequency meter
• Hour counter
• Fuel level indicator

Protections

• Thermal Protection
• Differential Protection
• Waterproof Fuse Cover
• Fuse 10 A (12 V DC)
• Oil Guard

Exits

• 1 x 12V DC Battery Charger

Sockets

The following sockets are present:

• 1x SCHUKO 230V 16A IP54
• 1x 2P+T CEE 230V 16A IP44
• 1 x 3P+N+T CEE 400V 16A IP44

Scope of use

• Emergency and blackout applications
• Construction sites and industrial plants
• Agricultural pumps and irrigation systems
• Events and fairs
• Technical Services and Mobile Workshops

Characteristics

• Three-phase current generator
• Honda GX390 Engine
• Power 8.3 kWA
• Integrated electric start
• AVR
• Oversized frame tubes
• Oversized tanks
• Control panels
• Ideal for professional applications

How to choose a portable generator

Below are some helpful tips for choosing the product that's best for you:

• Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
• Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Amount of power : the need for energy support must be assessed

Don't hesitate to contact us with any questions or if you need further information!
