Pramac GA 13000
Power Generator
Gas and LPG Powerknight

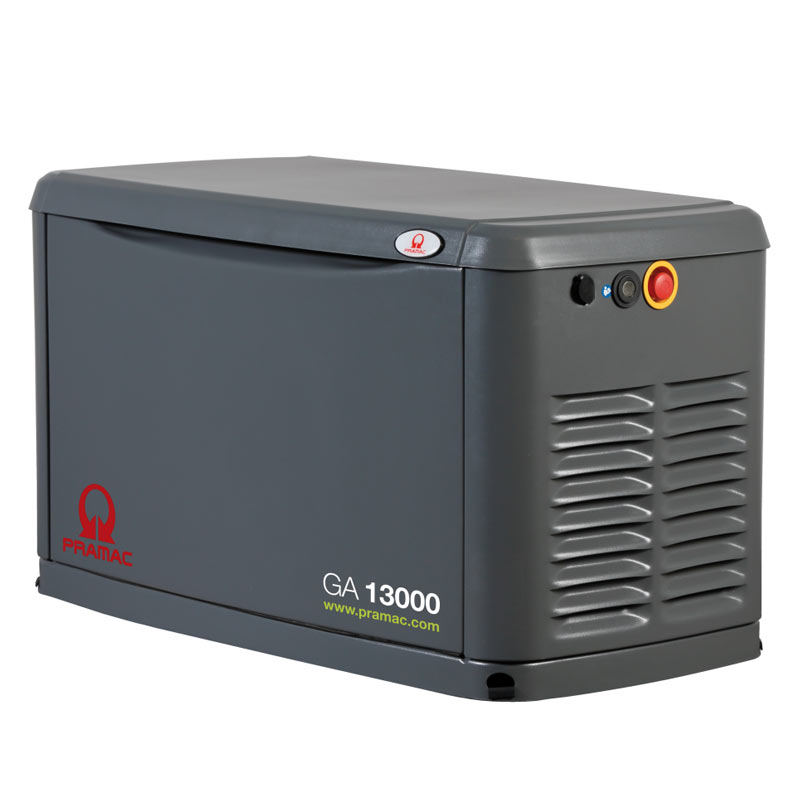

Pramac GA13000 - Methane or LPG Powered Generator

The Pramac GA 13000 generator is a reliable, high-performance solution for power continuity in domestic and commercial environments. It runs on natural gas or LPG , with direct connection to the gas mains , eliminating the need for manual refueling and reducing CO₂ emissions .

BATTERY NOT INCLUDED

Provision for 70 Amp LTS automatic switching.
Switch panel NOT INCLUDED.

Equipped with a 13 kW Generac G-Force 1000 Series OHV engine , it guarantees stable power delivery , low consumption and simplified maintenance . The automatic start system, Quiet-Test technology for reduced noise and remote management via the Mobile Link app make it ideal for those who need continuous emergency power without manual intervention.

TECHNICAL SPECIFICATIONS

The Pramac GA 13000 is powered by a single-phase 230V mains supply, features an electric starter , and is ready for the 70A LTS automatic switching system . The LTS switching panel can be purchased separately. It can be powered by LPG or natural gas and guarantees energy continuity thanks to the possibility of connecting directly to the gas network, eliminating the need for manual refueling.

With a fuel consumption of 6.48 m³/h for natural gas and 8.86 L/h for LPG at 100% load, this generator offers an optimal balance between performance and cost. The air-cooled G-Force engine , running at 3000 RPM , integrates a pressurized oil lubrication system with a 1.6 L crankcase, extending its service life and reducing maintenance. Noise levels are kept to 68 dB(A) in standard operation and drop to 54 dB(A) in Quiet-Test mode, for comfortable use even in domestic environments.

• L: 123.3 cm
• W: 64.8 cm
• H: 73.3 cm

FUNCTIONAL SPECIFICATIONS

Eco-friendly gas generator

Running on natural gas or LPG significantly reduces CO₂ and particulate emissions , improving energy efficiency and simplifying fuel management. Direct connection to the gas grid ensures operational continuity regardless of electricity availability.

G-Force motor designed for long life

The heart of the Pramac GA 13000 is the Generac G-Force engine , designed to ensure reliability and long life in continuous applications. The advanced design with polished cylinder walls and molybdenum rings reduces oil consumption and improves fuel efficiency . The " Spinky-Iok " cast iron walls ensure strength and durability , while the electronic ignition guarantees quick starts. The full pressure lubrication system extends service intervals up to 2 years, and safety devices protect the engine from damage from low oil pressure and overheating.

Advanced quietness with Quiet-Test

The Quiet-Test function lowers the engine speed during automatic test cycles, minimizing noise and fuel consumption. This mode makes the generator ideal for installations in residential areas , where acoustic comfort is a priority.

Evolution control unit

The Evolution control unit offers an advanced interface with illuminated and sealed buttons for simple, weatherproof control. It monitors the mains voltage and manages customizable delays to avoid unnecessary starts . It supports programmed warm-up , cool-down and engine exercise cycles to ensure efficiency and longevity . The intelligent charger adapts charging based on temperature and battery type (lead or AGM), while the automatic switch protects against overloads . The electronic regulator ensures stable power management.

Remote monitoring via Mobile Link app

Remote management via the Mobile Link app allows you to monitor the generator's status in real time, schedule maintenance, and receive automatic notifications, keeping the device always efficient and ready for use, even in the owner's absence.

Flexible installation and compact design

This Pramac generator can be installed just 50 cm from the wall thanks to its compact design , comparable to an outdoor air conditioning unit . The Rhino Coat aluminum enclosure , resistant to weather and winds up to 240 km/h, ensures protection and durability . The lockable roof and removable front panel facilitate maintenance . The closed silencer reduces noise, improving safety . The installation system includes a 305 mm flexible connector to absorb vibrations , a composite mounting plate to prevent settlement and an integrated sediment trap to protect the engine and fuel regulator .

Automatic operation in case of blackout

In the event of a power outage, the automatic start-up system activates the generator in seconds, ensuring immediate power continuity for household appliances or professional equipment, without the need for manual intervention.

LTS Switchboard

The Load Transfer Switch (LTS) is an optional accessory , not included with the generator set, designed to automatically manage the switching between the mains and the generator in backup applications. It consists of an independent cabinet that can be installed separately and does not require internal logic, as the automatic control is entirely managed by the generator control unit . It ensures rapid restoration of power in the event of a blackout, improving system reliability .

Watch the video

Characteristics

• 230V single-phase generator set
• For residential and professional use
• Generac G-Force 1000 OHV engine
• Power 13 kVA
• Electronic speed regulator
• RhinoCoat aluminum casing
• True Power Technology
• Multilingual LCD display
• LED indicators
• Flexible fuel line connector
• Wi-Fi communication standard
• Wi-Fi remote monitoring with Mobile Link via app
• Compatibility with LTS switchboard
