Pramac S5000 Single-Phase
5.3 kW Generator
Honda GX270 Engine

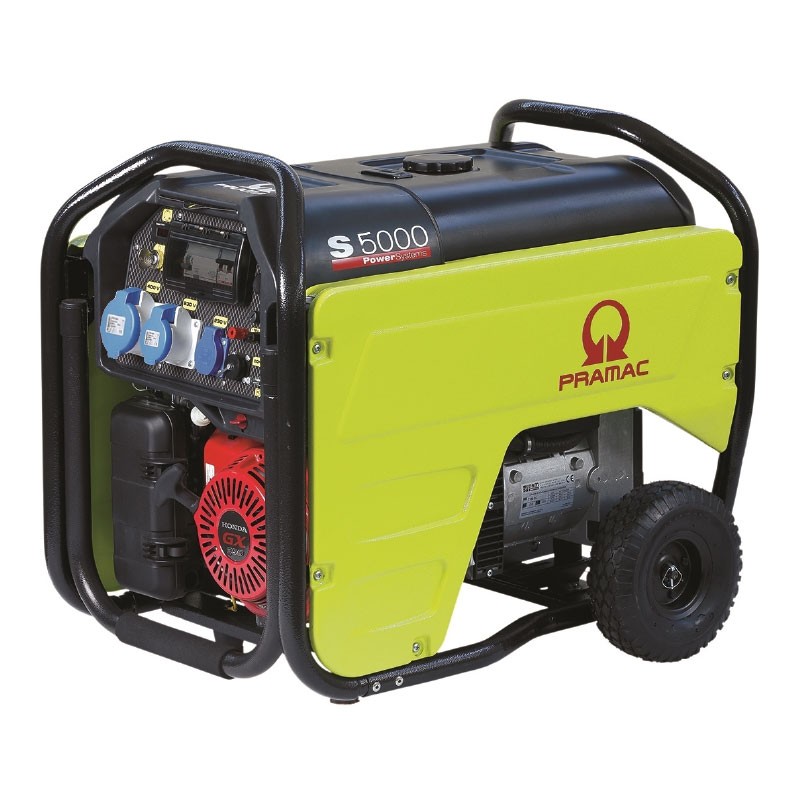

Pramac S5000 Single-Phase - 5.3 kW Petrol Generator

The Pramac S5000 single-phase generator is an efficient, reliable, and versatile solution for those seeking portable power in residential, professional, or construction settings. Equipped with a Honda GX270 engine, this gasoline generator stands out for its high performance and build quality. The Pramac S5000 is part of the S Series and is designed to provide continuous power in any situation, thanks also to its electric start and reinforced frame. The presence of a synchronous alternator with AVR voltage regulator ensures a stable and safe supply, also ideal for sensitive electronic devices.

Electric start

Available models

Selectable from the drop-down menu:

• S5000 cod. PD412SH2Z02 with manual control panel CONN (automatic AMF ready) + AVR
• S5000 cod. PD412SH2Z05 with manual control panel CONN ( automatic AMF predisposition) + AVR + DPP

AMF Ready - PLEASE NOTE: AMF to be purchased separately

The Pramac AMF automatic control panel is an accessory for S Series generators equipped with a CONN manual control panel . It automatically starts the generator in the event of a blackout and stops it when the mains power returns. Compatible with single-phase and three-phase power supplies, it is installed in a metal wall or floor box . Connection is quick thanks to the plug-in connector, allowing for practical and immediate use. Also included is an RSS radio control with a max. range of 90 m in open field.

AVR Voltage Regulator - including part numbers PD412SH2Z02 and PD412SH2Z05

An AVR (Automatic Voltage Regulator) is an electronic device that automatically regulates the output voltage of a generator. It maintains stable voltage by compensating for load variations, preventing overvoltages or sags. It is essential for protecting sensitive equipment and ensuring reliable, consistent generator operation.

Differential protection DPP - included code PD412SH2Z05

The DPP (Digital Protection Panel) differential protection is an advanced electronic safety system integrated into Pramac generators that detects any earth leakage currents (typical in the event of accidental contacts or faults in electrical devices).

Handling Kit - including code PD412SH2Z02 and PD412SH2Z05

The transport kit, supplied pre-installed and integrated into the frame, consists of two solid rubber wheels and a retractable handle complete with non-slip rubber. There are also two lifting points on the upper part of the frame.

Functional specifications

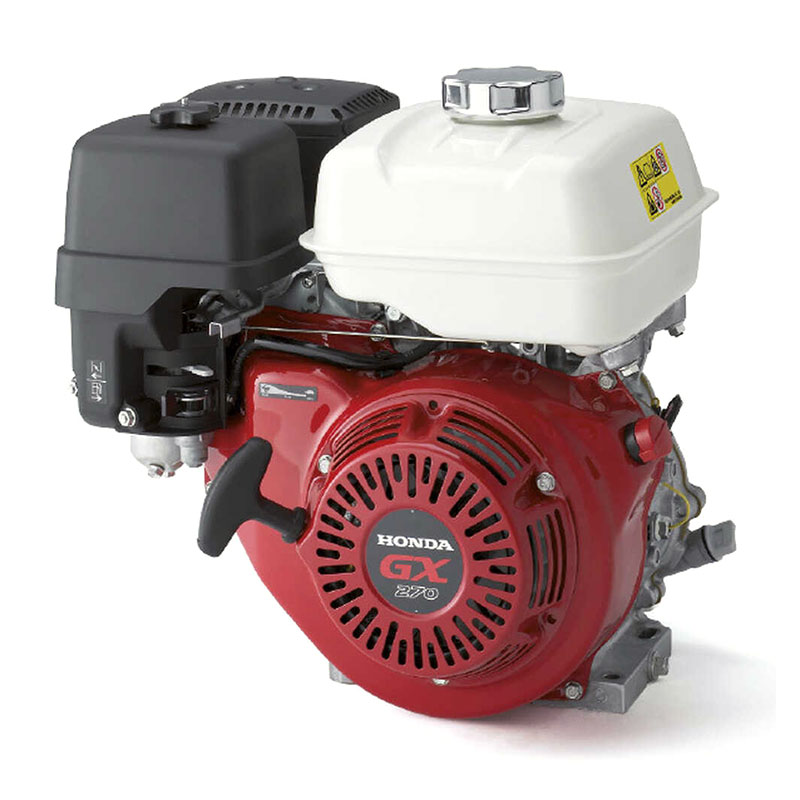

Honda GX270 engine

The Pramac S5000 generator runs on a Honda GX270 engine. The Honda GX270 engine is a single-cylinder, 4-stroke petrol engine with a horizontal shaft and a 25° inclined cylinder. It has a displacement of 270 cc and develops a nominal power of 6.2 HP at 3000 rpm , up to a maximum power of 8.4 HP at 3600 rpm .

24 L fuel tank

Equipped with a 27 L petrol fuel tank , the Pramac S5000 single-phase guarantees a range of 12.16 h at 100% load, with a fuel consumption of 2.22 L/h .

It has:

• Increased tank capacity
• Fuel level indicator
• Bayonet fuel filler cap
• Cup fuel pre-filter
• Fuel tap (located on the front of the control panel)
• In-line fuel filter

Steel frame with load-bearing tubular

The Pramac S5000 single-phase petrol generator has a load-bearing and protective tubular steel frame (roll bar) with protective side casings in sheet steel (removable and with adequate openings to facilitate routine maintenance operations).

NSM Alternator and IP23 Protection

The Pramac S5000 is easy to transport and install. The sturdy casing protects the internal components from external agents, extending their life even in dusty or humid environments. The NSM alternator with brushes and IP23 protection ensures reliability even in demanding working conditions.

Commands

Present:

• OFF-ON switch
• Air Control Button
• Connector (preparation for remote control via AMF accessories automatic panel; RSS radio remote control)

Instrumentation

• Voltmeter
• Frequency meter
• Hour counter
• Fuel level indicator

Protections

• Thermal Protection
• Differential Protection
• Waterproof Fuse Cover
• Fuse 10 A (12 V DC)
• Oil Guard

Exits

• 1 x 12V DC Battery Charger

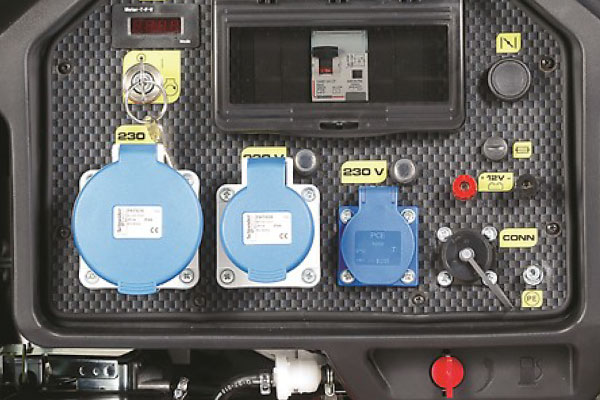

Sockets

The following sockets are present:

• 1x SCHUKO 230V 16A IP54
• 1x 2P+T CEE 230V 16A IP44
• 1 x 2P+T CEE 230V 32A IP44

Scope of use

• Emergency and blackout applications
• Construction sites and industrial plants
• Agricultural pumps and irrigation systems
• Events and fairs
• Technical Services and Mobile Workshops

Characteristics

• Single-phase current generator
• Honda GX270 engine
• Power 5.3 kWA
• Integrated electric start
• AVR
• Oversized frame tubes
• Oversized tanks
• Control panels
• Ideal for professional applications

How to choose a portable generator

Below are some helpful tips for choosing the product that's best for you:

• Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
• Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Amount of power : the need for energy support must be assessed

Don't hesitate to contact us with any questions or if you need further information!
