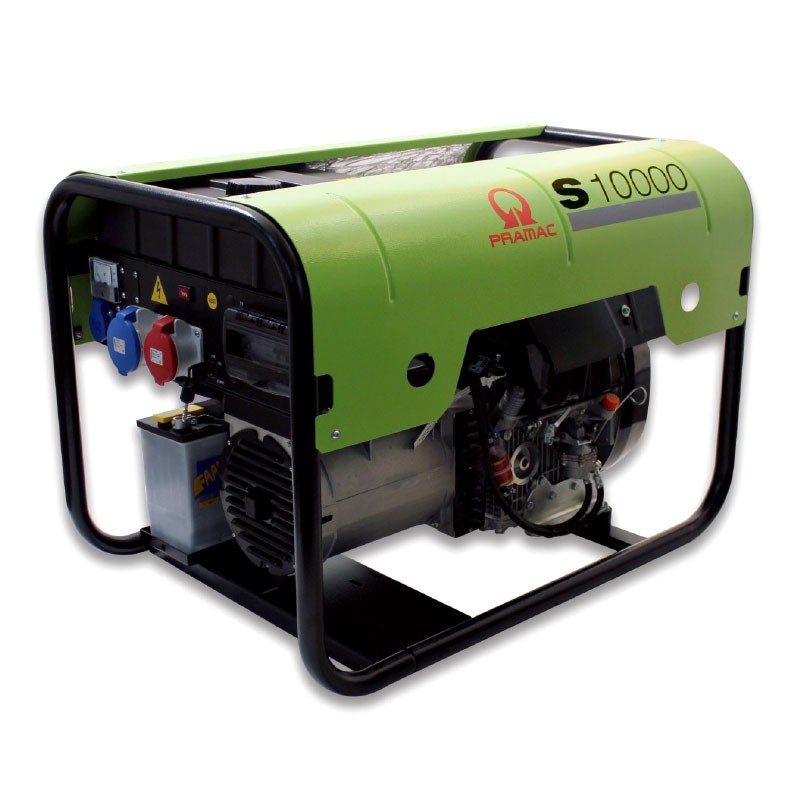

Pramac S10000 Three-Phase Diesel Generator with AVR 11.8 kW

Pramac S10000 Three-Phase Diesel Generator 11.8 kW with AVR

The Pramac S10000 three-phase is a professional diesel generator designed to offer power, autonomy, and reliability in any situation. Equipped with the Lombardini 25LD425 engine, it guarantees high performance and optimal efficiency even during intensive and prolonged use. With a nominal power of 10.6 kVA in three-phase and electric start , it represents a complete solution for professional environments and critical needs.

The IPP control panel allows for simple and safe control, thanks to integrated protections and essential control tools.

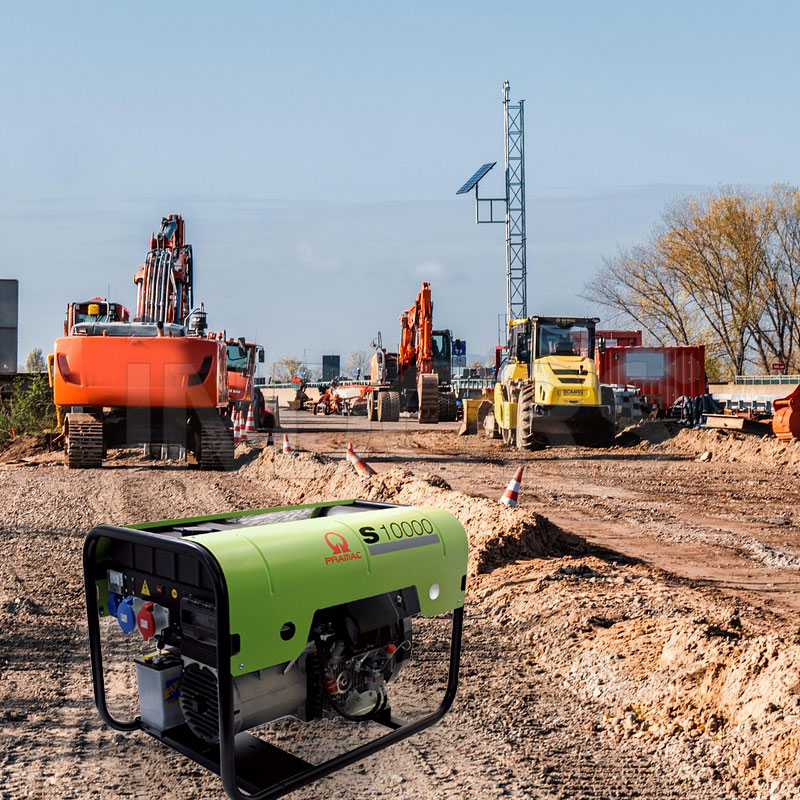

The 24 L tank capacity, combined with optimized consumption, offers up to 10 hours of autonomy at 75% load . Robust, compact and versatile, the Pramac S10000 is ideal for construction sites , farms , events or emergency situations . The perfect combination of power and ease of use makes it an indispensable tool for professionals.

Electric start

• S8000 cod. PD902TRA00S with manual control panel CONN + AVR + DPP

AVR voltage regulator - included

An AVR (Automatic Voltage Regulator) is an electronic device that automatically regulates the output voltage of a generator. It maintains stable voltage by compensating for load variations, preventing overvoltages or sags. It is essential for protecting sensitive equipment and ensuring reliable, consistent generator operation.

Differential protection DPP - included

The DPP (Digital Protection Panel) differential protection is an advanced electronic safety system integrated into Pramac generators that detects any earth leakage currents (typical in the event of accidental contacts or faults in electrical devices).

AMF - PLEASE NOTE: AMF as an accessory to be purchased separately

The Pramac AMF automatic control panel is an accessory for S Series generators equipped with a CONN manual control panel . It automatically starts the generator in the event of a blackout and stops it when the mains power returns. Compatible with single-phase and three-phase power supplies, it is installed in a metal wall or floor box . Connection is quick thanks to the plug-in connector, allowing for practical and immediate use. Also included is an RSS radio control with a max. range of 90 m in open field.

Functional specifications

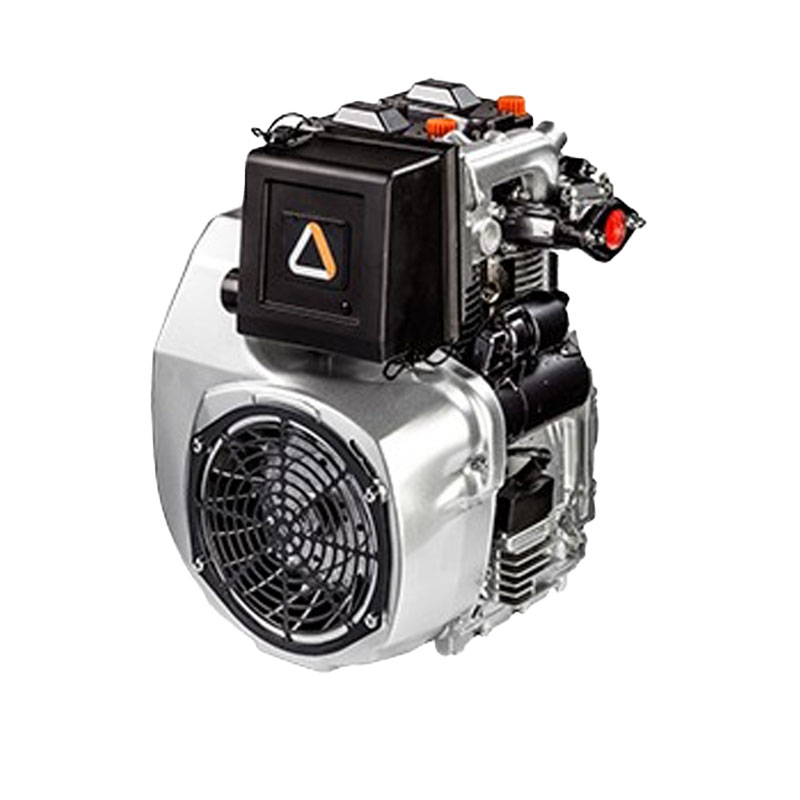

Lombardini 25LD425 engine

The generator is powered by the Lombardini 25LD425 851 cc air-cooled engine with mechanical speed regulation. It is paired with a Mecc Alte H-class alternator with compound regulation and IP23 protection , ensuring consistent power quality and durability even in harsh environments.

High performance for continuous professional use

The Pramac S10000 three-phase generator is ideal for emergency backup and blackout use, as well as for construction, work, and industrial applications. With a continuous power output of 10.5 kW (kVA), this three-phase generator boasts a 24- liter fuel tank that ensures up to 10 hours of autonomy at 75% load.

IPP Technology and Safe Use of the Generator

The Pramac S1000 IPP control panel is equipped with essential instrumentation such as a voltmeter, low oil pressure warning light and protections such as the Isometer system, Oil Guard protection and circuit breaker.

Instrumentation

Present:

• Voltmeter

Sockets

The following sockets are present:

• 1 x 230 Schuko 16A IP54
• 1 x 2P+T CEE 230V 16 A IP44
• 1 x 3P+T CEE 400V 16 A IP44

Protections

• Magnetothermal protection
• Differential protection (DPP)
• 10A fuse (12V DC)
• Oil Guard (low oil pressure)

Scope of use

• Emergency and blackout applications
• Construction sites and industrial plants
• Agricultural pumps and irrigation systems
• Events and fairs
• Technical Services and Mobile Workshops

Characteristics

• Three-phase current generator
• Lombardini diesel engine
• Three-phase power of 11.8 kW (kVA)
• Electric start
• 24 L tank
• Battery life up to 10 hours
• Mechanical Alternator
• Complete electrical protections

How to choose a portable generator

Below are some helpful tips for choosing the product that's best for you:

• Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
• Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Amount of power : the need for energy support must be assessed

Don't hesitate to contact us with any questions or if you need further information!
