Pramac S6500
5.9 kW Generator
Yanmar L100 Engine

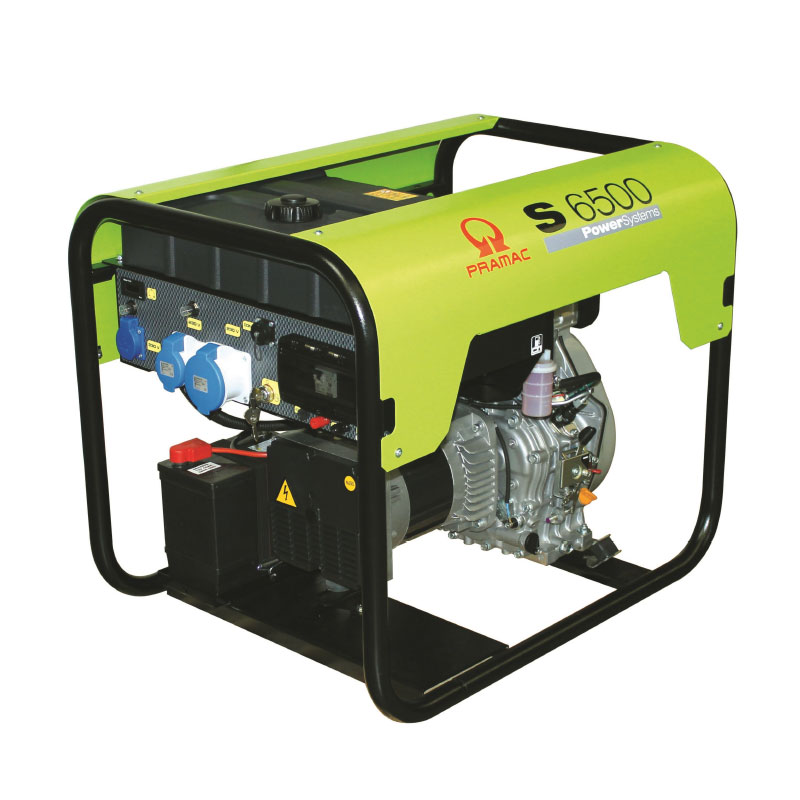

Pramac S6500 - Yanmar 5.9 kW Diesel Power Generator

The Pramac S6500 generator is a compact and powerful diesel generator, designed to offer maximum reliability for both domestic and professional use. Equipped with a Yanmar L100N Electric engine, electric start, and air cooling, this Pramac generator combines efficiency and robustness. Its durable canopy houses a 24 L fuel tank , offering above-average autonomy, perfect for extended use without interruptions.

With a standby power of 5.9 kW (kVA) and a continuous power of 4.8 kW (kVA) , the Pramac S6500 meets ISO8528 standards for reliable performance in both standby (ESP) and continuous (COP) modes. The brushless NSM alternator ensures stable voltage, while the capacitor system maintains minimal variations.

Electric start

• S5000 cod. PD482SY4001 with manual control panel CONN + DPP

Differential protection DPP - included

The DPP (Digital Protection Panel) differential protection is an advanced electronic safety system integrated into Pramac generators that detects any earth leakage currents (typical in the event of accidental contacts or faults in electrical devices).

AMF - PLEASE NOTE: AMF as an accessory to be purchased separately

The Pramac AMF automatic control panel is an accessory for S Series generators equipped with a CONN manual control panel . It automatically starts the generator in the event of a blackout and stops it when the mains power returns. Compatible with single-phase and three-phase power supplies, it is installed in a metal wall or floor box . Connection is quick thanks to the plug-in connector, allowing for practical and immediate use. Also included is an RSS radio control with a max. range of 90 m in open field.

Functional specifications

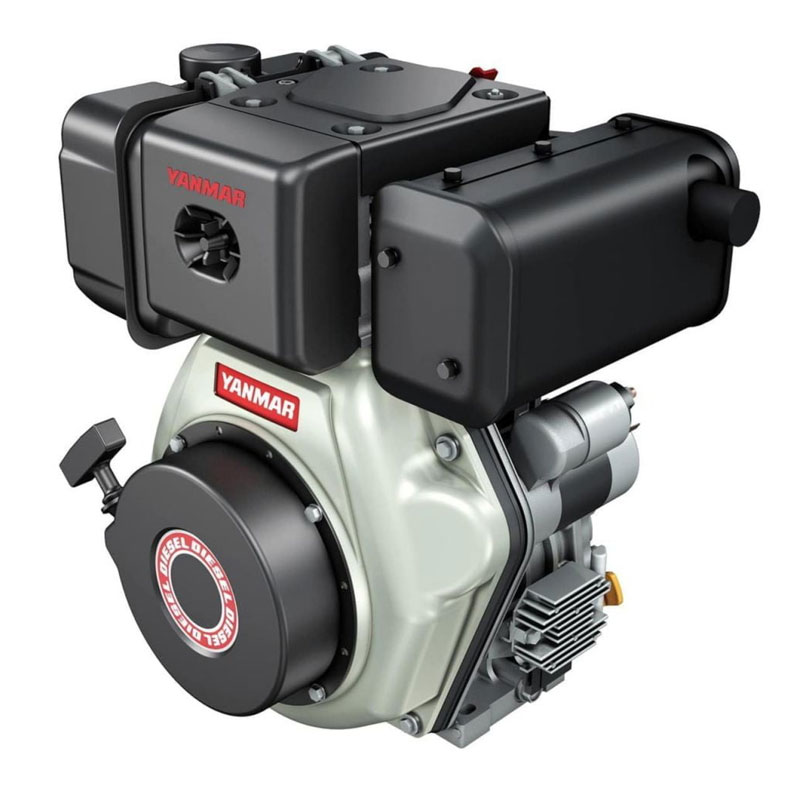

Yanmar L100N Electric Engine

The heart of the Pramac S6500 is the Yanmar L100N Electric engine, a single-cylinder, four-stroke, 9 HP , 435 cc engine with natural aspiration. It operates at 3000 rpm with a mechanical speed governor, ensuring stable performance in any condition. The air cooling system makes it perfect for versatile applications, without the need for complex systems. With a 1.6 L oil sump capacity, it is built to last even under prolonged stress.

Alternator for stability and safety

The Pramac S6500 generator is equipped with a brushless NSM alternator , with insulation class H , IP23 protection degree and 2 poles. Voltage regulation via capacitor ensures a controlled voltage variation between +5% and -10% (cosϕ1), protecting even the most delicate electronic equipment.

Instrumentation

Present:

• Voltmeter
• Frequency meter
• Hour meter

Sockets

The following sockets are present:

• 1 x 230 Schuko 16A IP54
• 1 x 2P+T CEE 230V 16 A IP44
• 1 x 2P+T CEE 230V 32 A IP44

Exits

• 12V DC battery charger

Protections

• Magnetothermal protection
• Differential protection (DPP)
• Fuses 10A (12V DC)
• Oil Guard (low oil pressure)

Characteristics

• Diesel generator
• Yanmar L100N engine
• Air cooling
• Max power 5.9 kW continuous 4.8 kW
• 24 L tank
• NSM brushless alternator
• Magnetothermal Protection and Oil Guard
• Sockets
• Voltmeter, Frequency Meter and Hour Meter

How to choose a portable generator

Below are some helpful tips for choosing the product that's best for you:

• Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
• Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Amount of power : the need for energy support must be assessed

Don't hesitate to contact us with any questions or if you need further information!
