CGM DS11000Y
Generator 11 kW
Single Phase 230V
MPN: DS11000Y
230V V - 11 kW
570 cc - 12 HP
DIESEL
Warranty 2 years
Shipped on Pallet

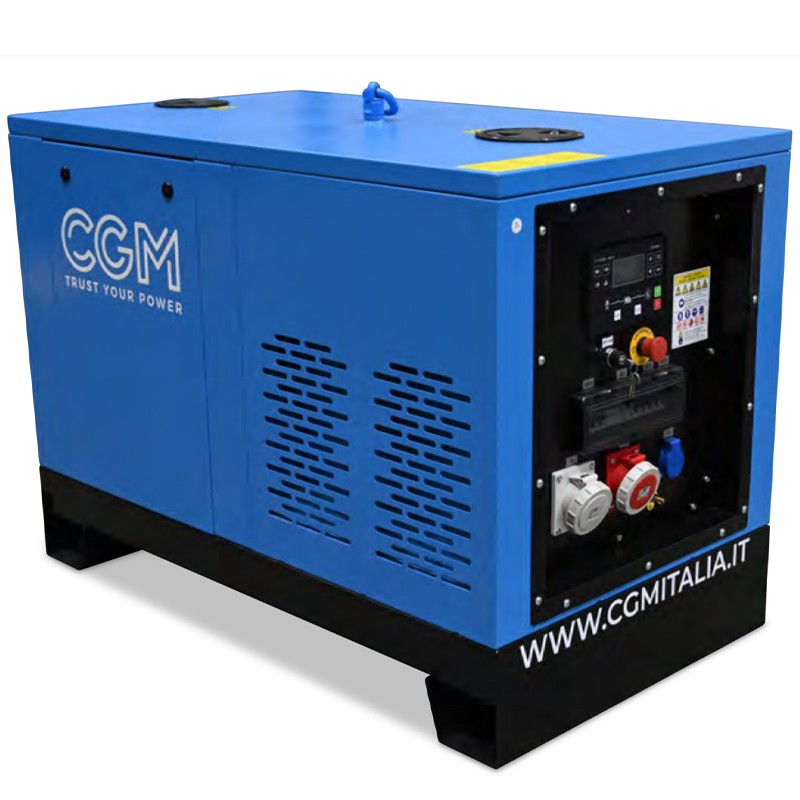

CGM DS11000Y - Industrial Generator 3000 RPM Single Phase 230V
CGM DS11000Y is a generator set completely produced in Italy , equipped with a Yanmar 2TNV70 water-cooled diesel engine , Stage V, 3000 RPM . This industrial generator is equipped with a 230V single-phase power supply.
The water cooling of the engine is specifically designed to ensure better performance in intensive use making this generator perfect for industry.
Furthermore, the CGM DS11000Y generator set is equipped with a central lifting hook to allow it to be moved with special means.
Compared to previous models, this silenced generator is characterised by a significant reduction in noise .
Functional specifications
Generator for Industrial or Emergency Use
The CGM DS110000Y industrial generator is ultra powerful, designed for use on construction sites , in industry and for emergencies . It has a power of 11/12.1 kVA with a single-phase 230 V connection.
Stage V diesel engine
The Stage V YANMAR 2TNV70 engine has a power of 12.2 HP (9.1 kW) with an Electric Start System with a displacement of 570 cc . This engine has 2 cylinders and works at 3000 RPM .
AVR Voltage Regulator
CGM DS11000Y mounts an AVR voltage regulator to provide stable current, ideal for connecting smartphones and electronic devices.
Manual Electric Panel with electronic control unit
This CGM Diesel Generator has a manual electrical panel with:
- N.1 Schuko and N.1 16A 3P 230V + N.1 63A 3P 230V CEE sockets
- Voltmeter, hour meter and connector for ATS
- Main switch, thermal protection and battery charger
Diesel Powered
The CGM DS11000Y industrial generator is diesel powered with a consumption of 2.9 L/h at 75% . The tank can hold up to 30 L of fuel for an estimated autonomy of approximately 10 h .
Main Features
- Single phase power supply 230V
- Yanmar 12 HP 580 cc engine
- With AVR
- Electric start with 12V battery
- Ideal for industrial use and emergencies
- Diesel tank 30 L
- Soundproof Cabin
- Anti-Vibration Rubber Pads
Standard Equipment
- Soundproof structure
- Electronic Voltage Regulator AVR
- Handling hook
- Anti-vibration rubber pads
- First fill liquids
Optional Equipment
- Trolley for manual handling
- ATS switchboard for network/group switching
Technical Data
| Model | DS11000Y |
| Power Supply | 230V - 50Hz |
| Motor | YANMAR 2TNV70 |
| Continuous Power | 11 KVA - 9.9 KW cos φ 0.9 |
| Emergency Power | 12.1 KVA - 9.7 KW cos φ 0.9 |
| Fuel | Diesel |
| Engine RPM | 3000 RPM |
| Fuel Consumption | 2.9 L/h at 75% |
| Displacement | 570cc |
| Engine Power | 12.2 HP - 9.1 kW |
| Reservoir | 30 L |
| Start-up | Electric |
| Drums | 12V |
| Autonomy | 10.3 h |
| AVR | YES |
| ATS Automatic Emergency Panel | Optional |
| Voltage accuracy | +/- 4% |
| Size | 107 x 61 x 90h cm |
| Weight | 235 kg |
Technical Data
| Model | DS11000Y |
| Power Supply | 230V - 50Hz |
| Motor | YANMAR 2TNV70 |
| Continuous Power | 11 KVA - 9.9 KW cos φ 0.9 |
| Emergency Power | 12.1 KVA - 9.7 KW cos φ 0.9 |
| Fuel | Diesel |
| Engine RPM | 3000 RPM |
| Fuel Consumption | 2.9 L/h at 75% |
| Displacement | 570cc |
| Engine Power | 12.2 HP - 9.1 kW |
| Reservoir | 30 L |
| Start-up | Electric |
| Drums | 12V |
| Autonomy | 10.3 h |
| AVR | YES |
| ATS Automatic Emergency Panel | Optional |
| Voltage accuracy | +/- 4% |
| Size | 107 x 61 x 90h cm |
| Weight | 235 kg |
