Fral FSW96
Pool Dehumidifier
MPN: FSW96.1
230 V - 1,4 kW
980 m³/h - 52 dB - 96 L/ 24 h
Scarico Continuo
Warranty 2 years
Shipped on Pallet

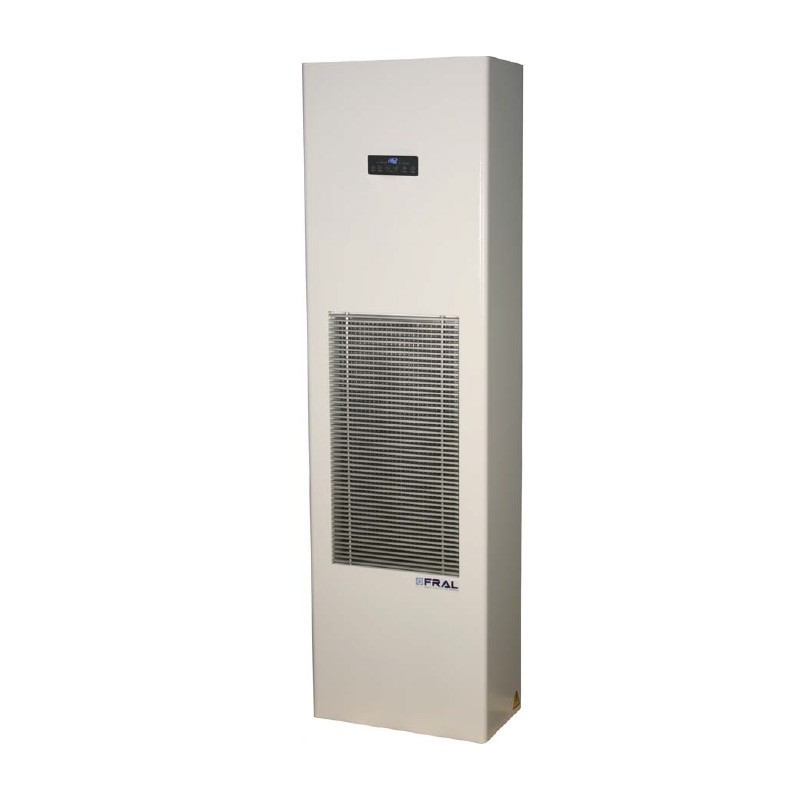

Fral FSW96 - Fixed Pool Dehumidifier
The Fral FSW96 is a fixed dehumidifier for Fral FSW series swimming pools , but it can be used in a variety of applications. Resistant to chlorine corrosion , this pool dehumidifier features a high-efficiency polyurethane filter that is washable and easily replaceable.
The Fral FSW96 has the option of direct discharge or with the optional installation of a condensate lifting pump . The condensate lifting pump allows condensate to be sent up to 3.5 m high from the level where the professional dehumidifier has been positioned.
Refined design, Fral FSW96 can also be installed in environments open to the public such as libraries and offices .
How a pool dehumidifier works
To enjoy an indoor pool and swim in complete comfort, it's helpful to keep the humidity level between 60% and 70%. This will prevent fogged windows, damage to components, and condensation on surfaces. Fral pool dehumidifiers help prevent the evaporation of hot water, which makes pool use uncomfortable.
A professional fixed dehumidifier allows you to keep the air free from humidity , thus avoiding the formation of mold, peeling paint, and constantly fogged windows . Fral dehumidifiers from the FSW range recirculate filtered and humidity-free air through the action of a fan .
Functional specifications
Galvanized sheet metal structure and rotary compressor
The FSW series dehumidifiers are made of galvanized sheet metal and painted with polyurethane powders enameled at 180°C to ensure the best resistance to atmospheric agents. The structure is self-supporting . The Fral FSW63 swimming pool dehumidifier is equipped with a rotary compressor . The compressor of this Fral dehumidifier has low energy consumption and silent operation . The rotary compressor for swimming pool dehumidifiers uses R410a refrigerant gas.
Refrigeration circuit and condensation collection
The refrigeration circuit includes a filter drier , Schrader valves for maintenance and control, capillary tube expansion , compressor , condenser and evaporator made of copper tubes with aluminum fins. The condensate collection container is made of corrosion-resistant stainless steel , with a 3⁄4" female connection for the condensate drain pipe.
Fan, filter and microprocessor
This Fral FSW96 swimming pool dehumidifier features a centrifugal fan . The air filter is made of synthetic material , washable and easily replaceable . The microprocessor of the professional dehumidifier is used to control general operation , automatic defrosting , alarms and humidity and temperature regulation.
Electrical panel
The electrical panel of the Fral dehumidifier is composed of: remote control terminals and electronic board .
Testing
Refrigerant circuit leak tests, electrical discharge tests and functional tests are performed.
Technical specifications
The voltage of the Fral FSW96 is single-phase 230 V. The average nominal absorbed power of the Fral FSW96 (27°C - 60%) is 1400 W , with a maximum absorbed power with electrical resistances (35°C - 70%) of 5400 W. The starting current LRA is 24.4 A. The nominal flow rate of this swimming pool dehumidifier is 980 m³/h , with a sound pressure at 3 metres of 52 dB(A) .
The protection level of the machine is IPX2 , with R410a refrigerant gas.
The operating range is between 7÷35 °C .
The dimensions of the Fral fixed-installation pool dehumidifier are 50 x 175 x 29 cm , and it weighs 72 kg . Further details can be found in the technical table at the bottom of the page.
Condensed water at different temperatures
.jpg)
| DEHUMIDIFICATION | 10 °C - 60 % | 10 °C - 80 % | 15 °C - 60 % | 15 °C - 80 % | 20 °C - 60 % | 20 °C - 80 % | 25 °C - 60 % | 25 °C - 80 % | 26.7 °C - 60 % | 27 °C - 80 % | 30°C - 80% | 32°C - 80% |
| L/24h | 16 | 28 | 24 | 37 | 32 | 45 | 40 | 56 | 48 | 60 | 80 | 96 |
Areas of use
- Swimming pools - accurate sizing is required
- Archives
- Gyms
- Taverns
- Houses
- Laundries
- Libraries
- Museums
Optional
The following accessories are available upon request:
- Post-heating battery kit with 3-way ON/OFF valve - 2.4 kW electronic temperature control with incoming water (T= 60°/70°C)
- 4 kW stainless steel armored electric heating element kit
- Remote control panel complete with settings and alarms to be placed 2 m away from the dehumidifier
- Remote digital dehumidifier with humidity control
- Condensation lifting pump kit, which can be placed inside the dehumidifier
Technical Data
| Power Supply | 230 V |
| Consumption | 1400 W |
| Nominal Air Flow | 800 m³/h |
| Max Dehumidification | 96 L/24 h |
| Room Humidity Control | 1350 m³ |
| Max Absorbed Current | 24.4 A |
| Noise | 52 dB (A) |
| Refrigerant | R410a |
| Condensation Drain Connection | 3/4 M |
| Relative Humidity T < 30°C | 40 ÷ 99 % |
| Relative Humidity T 30 ÷ 32 °C | 40 ÷ 90 % |
| Relative Humidity T 32 ÷ 35 °C | 40 ÷ 70 % |
| Temperature | 7 ÷35 °C |
| Continuous Discharge | YES |
| Dimensions | 50 x 175 x 29 cm |
| Weight | 72 kg |
Technical Data
| Power Supply | 230 V |
| Consumption | 1400 W |
| Nominal Air Flow | 800 m³/h |
| Max Dehumidification | 96 L/24 h |
| Room Humidity Control | 1350 m³ |
| Max Absorbed Current | 24.4 A |
| Noise | 52 dB (A) |
| Refrigerant | R410a |
| Condensation Drain Connection | 3/4 M |
| Relative Humidity T < 30°C | 40 ÷ 99 % |
| Relative Humidity T 30 ÷ 32 °C | 40 ÷ 90 % |
| Relative Humidity T 32 ÷ 35 °C | 40 ÷ 70 % |
| Temperature | 7 ÷35 °C |
| Continuous Discharge | YES |
| Dimensions | 50 x 175 x 29 cm |
| Weight | 72 kg |
