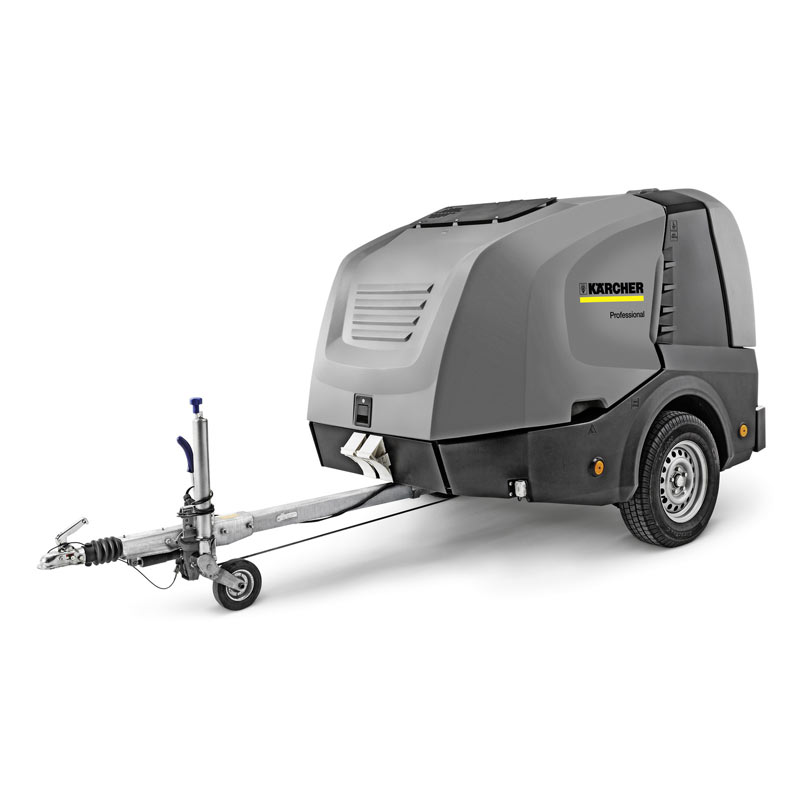

Karcher HDS 13/35 De Tr1 - Hot Water Pressure Washer 350 bar 1300 L/h with Trailer
The Karcher HDS 13/35 De Trailer is a professional hot water pressure washer designed for intensive applications in the industrial , construction , and municipal sectors. It is a self-contained and mobile solution, designed to ensure maximum operational flexibility in areas without electricity or water connections. With a pressure of 350 bar and a variable flow rate from 650 to 1300 L/h , the HDS 13/35 De ensures high performance even for the most demanding cleaning operations. The Yanmar diesel engine guarantees constant power and energy independence, while the high-efficiency burner technology optimizes consumption and reduces emissions, meeting the highest environmental standards.
Technical Specifications
The Karcher HDS 13/35 De is powered by a 19 kW (26 HP) Yanmar diesel engine , which ensures continuous operation even in the absence of a power supply. The 100 L diesel tank allows for long uninterrupted work sessions, while the 500 L water tank guarantees an autonomy of approximately 30 minutes at full power. The eco!efficiency mode reduces diesel consumption by up to 9.3 kg/h , while maintaining high thermal performance thanks to the heat recovery system generated by the engine.
In terms of performance, the operating pressure of up to 350 bar allows for the extremely effective removal of dirt , grease , and solid residues . The adjustable flow rate from 650 to 1300 L/h offers versatility of use depending on the type of operation, always ensuring a constant and stable flow. All internal components are Karcher branded and designed for prolonged use in harsh environments, with quick maintenance access by lifting the upper cover.
Functional Specifications
Yanmar High Performance Diesel Engine
The heart of the Karcher HDS 13/35 De Trailer is the 19 kW Yanmar diesel engine , designed to offer power and reliability in all working conditions. The independent power supply allows operation without the need for an electrical network , making the machine ideal for mobile construction sites , industrial areas and municipal interventions .

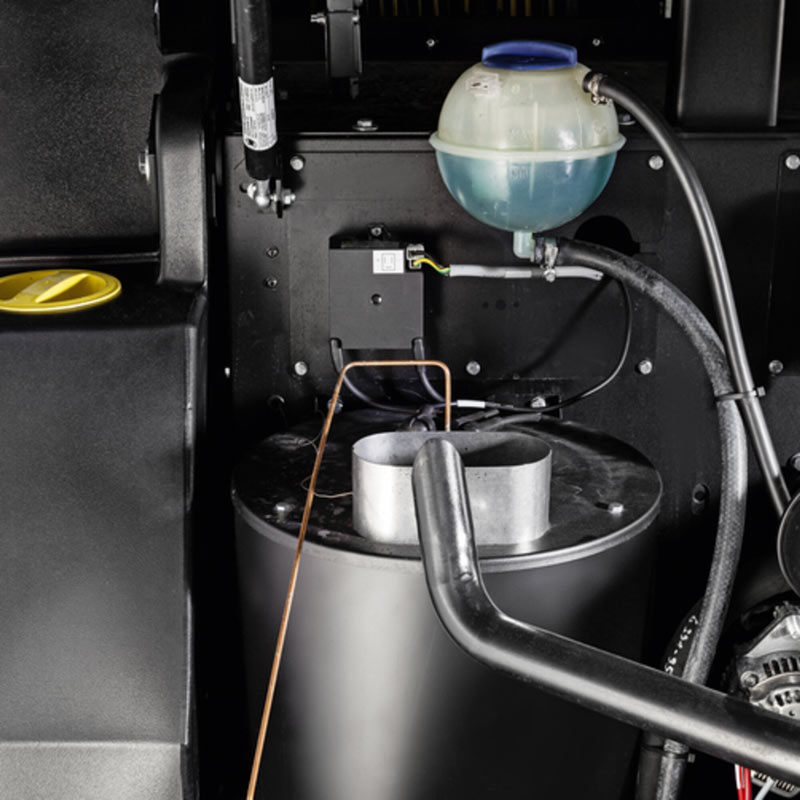

High Efficiency Heating System
Karcher burner technology ensures rapid and even water heating, with superior energy efficiency thanks to heat recovery from the engine. The eco!efficiency mode optimizes consumption , reduces emissions , and extends the system's lifespan, reducing operating costs and improving operational sustainability.
Extended Autonomy and Operational Capacity
With a 500-liter water tank and a 100-liter diesel tank, the HDS 13/35 De Trailer offers extremely long working hours. The high- and low-pressure hose reel system simplifies connection and disconnection, speeding up machine setup in the field.
Simplified Maintenance and Advanced Diagnostics

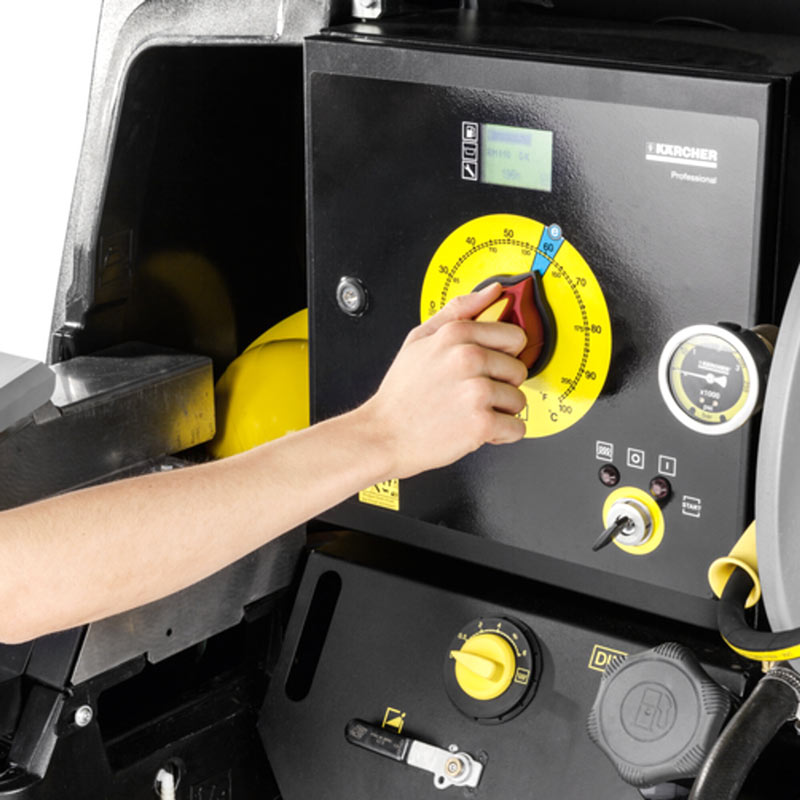

Access to internal components is quick and intuitive thanks to the lift-up cover , which facilitates all routine maintenance. Integrated diagnostic software allows for precise fault identification, reducing machine downtime and increasing overall productivity.
Karcher Reliability and Components
All Karcher internal components are made of high-quality materials and tested to ensure durability, efficiency, and safety. Trailer-mounted assembly allows for mobile and flexible use, transforming the HDS 13/35 De Tr1 into a truly high-performance professional washing unit, ready to operate in any operating environment.
Characteristics
- Diesel powered
- Yanmar engine
- Water flow rate 1300 L/h
- Working pressure 100 ÷ 350 bar
- Consumption 9.3 kg/h
- 500 L water tank
- 100 L fuel tank
- Made in Germany

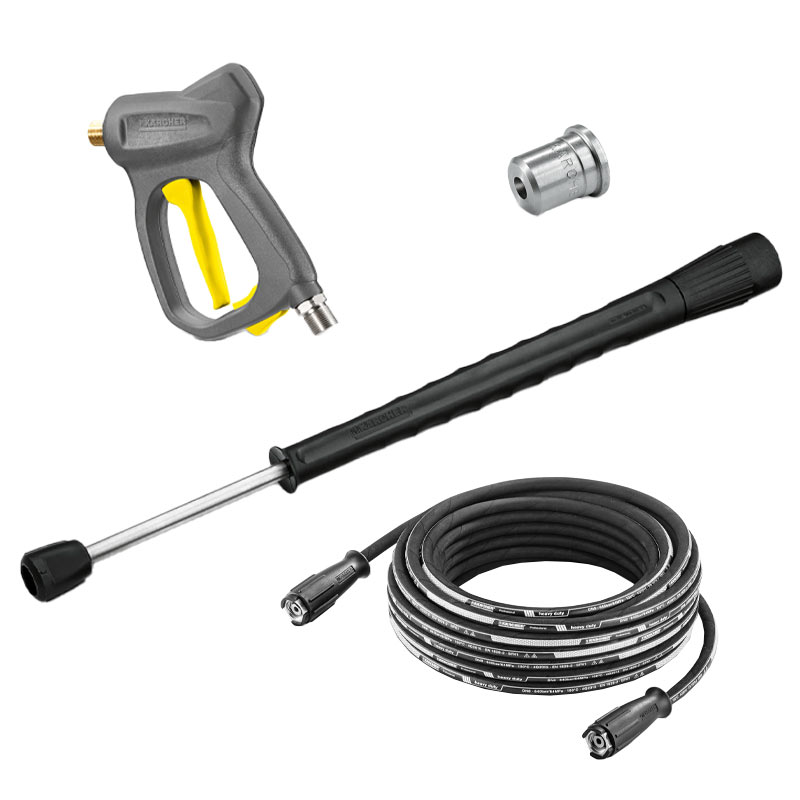

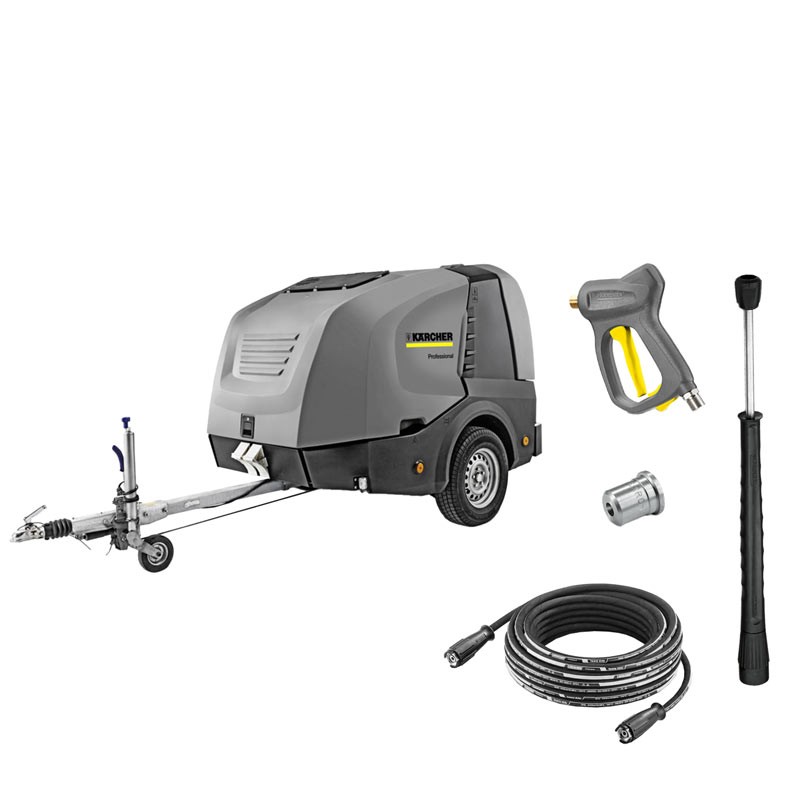

Standard Equipment
- Spray gun - code 4.775-824.0
- High pressure hose 30 m, 620 bar, M22 x 1.5 - code 6.391-019.0
- Complete lance with nozzle holder - code 4.760-679.0
- Nozzle with flat nozzle 15051 - code 5.765-190.0
