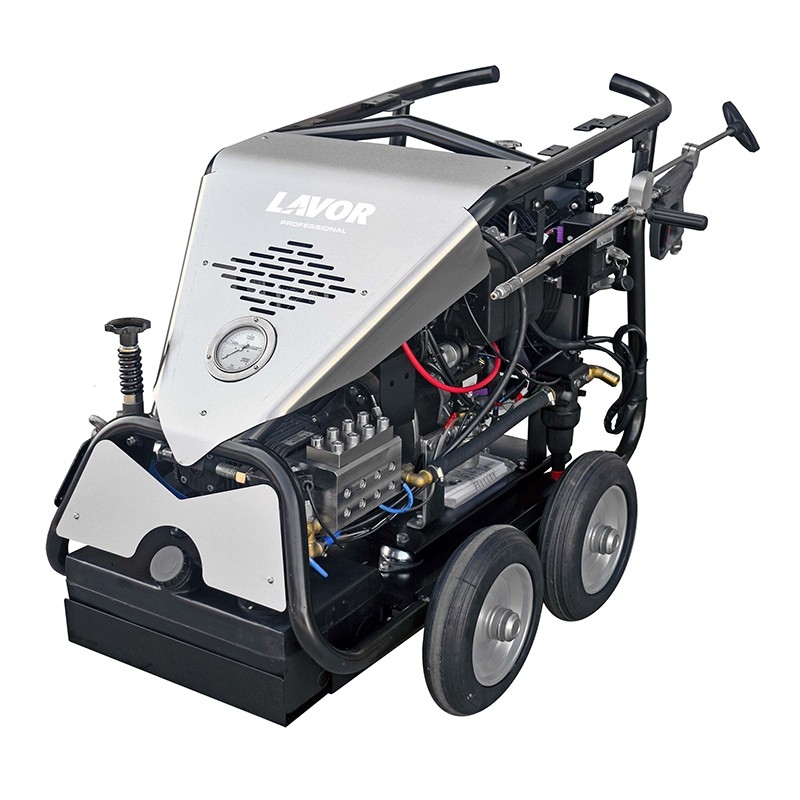

Lavor Thermic 26 7013 K - Highly Professional 730 bar Pressure Washer
The Lavor Thermic 26 7013 K is a petrol-powered pressure washer designed for highly professional use. It features a TW 700 pump and a diesel- powered Kohler engine . The materials used to make this pressure washer are of excellent quality , resistant and long-lasting . The high performance of this cold water pressure washer makes it suitable for highly professional use.
Technical specifications
The highly professional Lavor Thermic 26 7013 K pressure washer has 4 twin wheels with a diameter of 35 cm , a Kohler KDW1003 liquid -cooled Diesel engine with 26 HP and Triplex TW 700 pumps. The pressure washer has a speed reducer (with 1450 RPM pump), electric starting and is equipped with an oil-low safety device ( oil-alert ), an hour meter and a stainless steel pressure gauge .
The Lavor Thermic 26 7013 K engine speed can be adjusted manually using the dedicated regulator. It also features a stainless steel pressure relief valve with Easy-Start , a safety valve, and a thermostatic valve. This high-performance pressure washer is completed by a large water filter at the pump inlet with an inspectable cartridge.
TW 700 pump
The Triplex TW 700 pump is made of anodized aluminum alloy and features a finned casing for low oil temperatures. With an AISI 420 stainless steel head, stainless steel suction and delivery valves with caps on the delivery valves, this pump has an exclusive sealing system: for high pressures, the seals are lubricating; for low pressures, there are rubber-fabric seals with anti-extrusion rings.
The pump features an innovative flushing system , allowing for Venturi recirculation of the water in the head. The pistons are made of tungsten carbide for greater resistance to abrasion and corrosion. The oil system in the crankcase minimizes piston wear. A Ø 30 male shaft is included for coupling with a pulley and a reducer or hollow shaft electric motor.
As final characterizing elements, we also point out the oversized tapered roller bearings with covers for precarious adjustment, an oil sight glass and the two-piece connecting rods made of a special aluminum alloy . The sealing system between the crankcase and the cover consists of an O-ring and the pistons have guides in hardened stainless steel .
Kohler KDW1003 Engine
The Lavor Thermic 26 7013 K is equipped with a Kohler KDW 1003 diesel engine, a four-stroke , three-cylinder in-line , liquid -cooled, compact and versatile engine with a displacement of 1028 cm³ and a declared power of 18 kW . The Kohler engine is used in the agricultural , industrial and automotive sectors.
Fields of application
Characteristics
- Highly professional
- Pressure of 700÷730 bar
- Internal combustion engine
- 4 twin wheels Ø 35 cm
- Triplex TW 700 pump
- Easy-Start
- Hour meter
- Gradual, thermostatic and safety reset valves
- Gauge

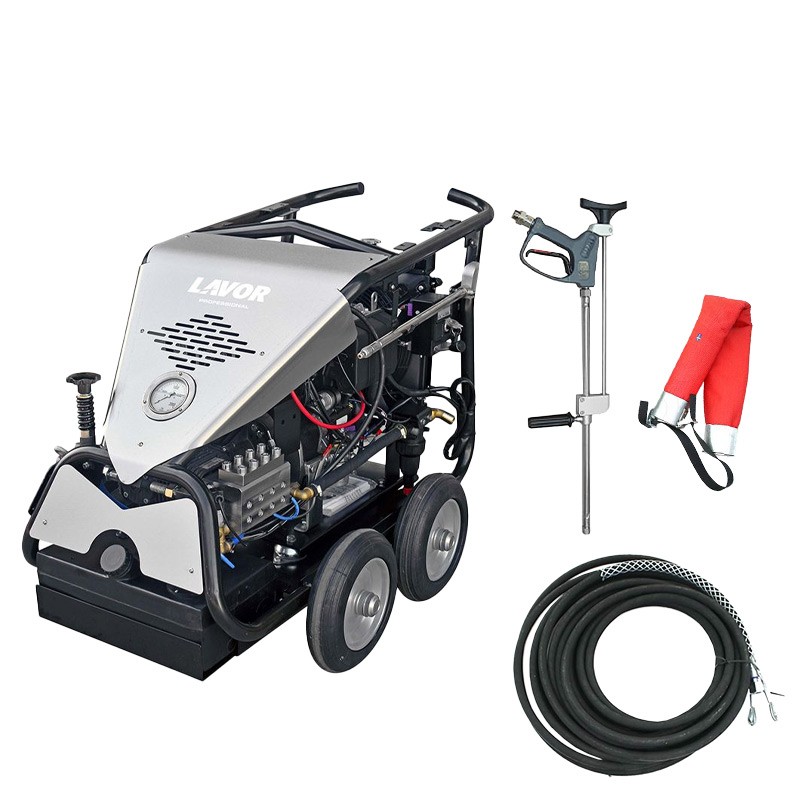

Standard equipment
- ML1000 pistol with lance
- Nozzle type 025
- Gun protective sock
- Self-cleaning filter
- High pressure hose with safety sock 20 m
