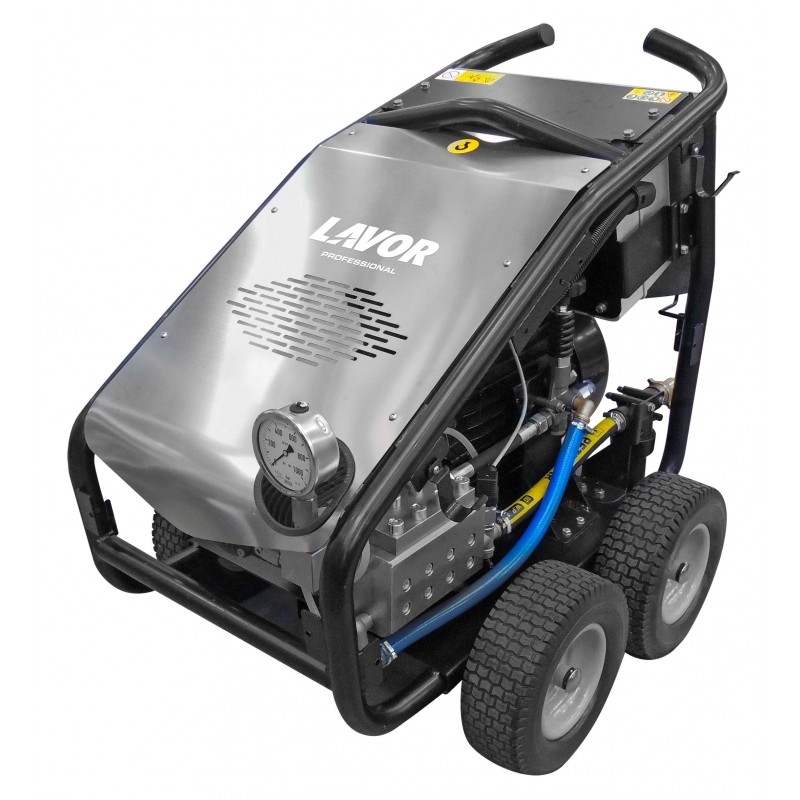

Lavor Irtys E LP - Electric Cold Water Pressure Washer
Lavor Irtys E LP is an electric cold water pressure washer, it has a sturdy frame painted with anti-corrosion treatments, a stainless steel hull and a practical housing for the gun and lance.
The suction filter is a self-cleaning cartridge filter, largely oversized , with high filtering power . Lavor Irtys E LP has four wheels with a pneumatic effect steel hub, an electric motor and a triplex TW 700 pump . The construction materials are excellent , of notable robustness and resistance to impacts.
Technical specifications
The Lavor Irtys E LP cold water pressure washer is electric-powered and features a TW 700 triplex pump . The motor-pump connection is via a flexible coupling . A practical stainless steel pressure gauge for measuring pressure is located on the front of the pressure washer's hull.
Irtys E LP is equipped with an automatic regulation valve with external by-pass and gradual pressure restoration , a safety valve and a thermostatic valve for overtemperature protection. There is a star-delta starting panel with 24 V low voltage controls, a contactor and motor protection with thermal relay and an emergency stop button, finally there is space for an hour meter .
The pressure washer exerts a notable pressure of 700÷770 bar , for a flow rate of 900 L/h , has a three-phase power supply and the water temperature can be a maximum of 60°C .

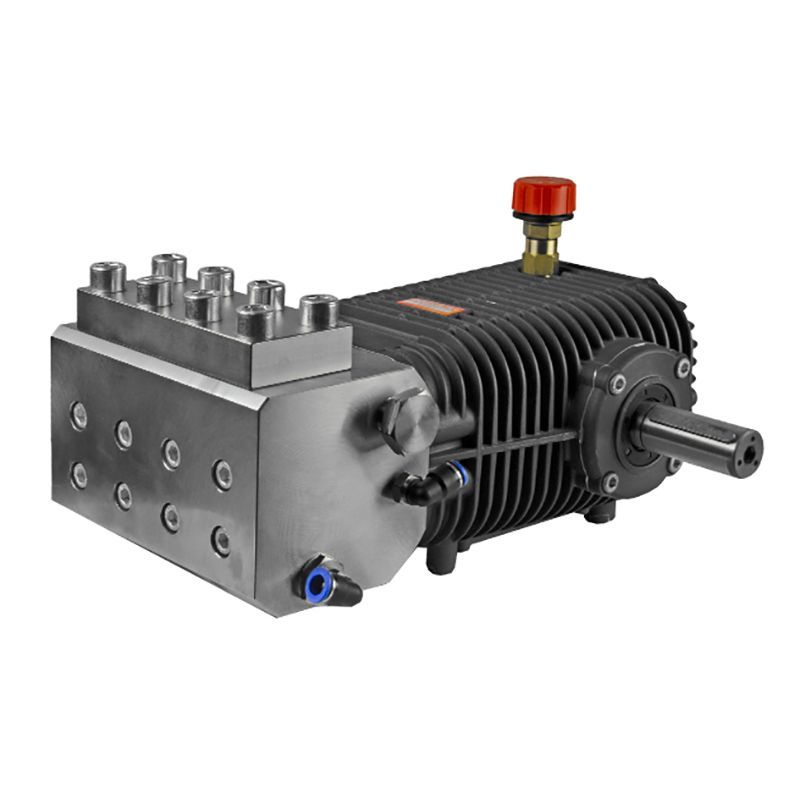

Triplex pump TW 700
The Lavor Irtys E LP pressure washer is equipped with a triplex TW 700 pump , made of die-cast aluminium alloy with anodisation treatment, with head and suction and delivery valves in AISI 420 stainless steel. The pump features the Flushing System : a Venturi recirculation of the cooling water in the head.
The pistons are made of tungsten carbide , for superior resistance to abrasion and corrosion, two-piece connecting rods made of a special aluminium alloy , a sealing system between the crankcase and the cover with O-rings and piston guides in tempered stainless steel .
Fields of application
Characteristics
- Electric
- Cold water
- Highly professional
- TW 700 pump
- Die-cast aluminum
- Pneumatic effect wheels
- Stainless steel pressure gauge
- Automatic control valve
- Safety valve
- Thermostatic overtemperature protection valve
- Contactor and motor protection with thermal relay
- Emergency stop button
- Hour meter

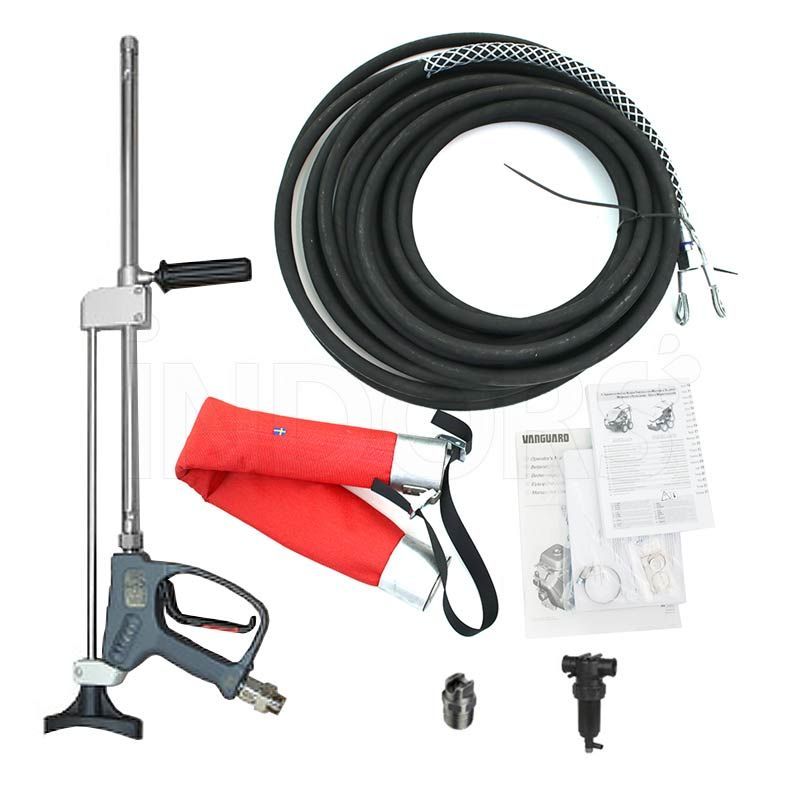

Standard equipment
- ML1000 pistol with lance - code 00080-03949
- Nozzle type 020 700 bar - code 00080-04553
- Gun Protective Sock - Cos. 00042-00243
- Self-cleaning filter - code 00070-00710
- High pressure hose with safety sock 20 m - code 00014-00520
Optional Equipment
- Turbo nozzle - code 00080-04623
- Sandblasting lance - code 00080-02335
- Helmet + apron + protective gloves + protective boots kit - code 00069-00250
