IPC PW H61 Value
Industrial Pressure Washer 200 bar
4 wheels

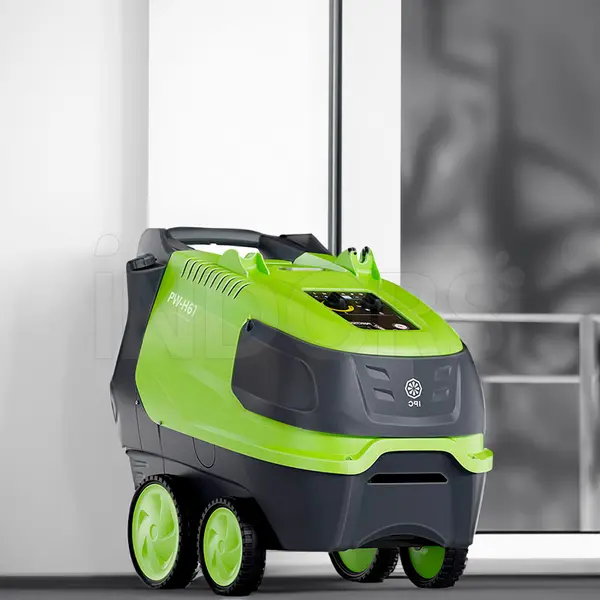

IPC PW H61 Value - 200 bar high pressure washer with 4 wheels

The IPC PW H61 Value 4-wheel is a professional pressure washer that combines advanced technologies and high performance for industrial and commercial applications .

Different variants of the IPC PW H61 Value pressure washer are available, with operating pressures ranging from 30 to 200 bar and water flow rates between a minimum of 450 L/h and a maximum of 1000 L/h . The outlet water temperature is adjustable between 30 and 110 °C . The power supply is three-phase with various amperage options, and the absorbed power varies from 5 to 6.4 kW . The engine has a speed of 1400 rpm, and the pump , head and pistons are made of resistant materials such as brass and ceramic.

The IPC PW H61 Value three-phase pressure washer is equipped with exclusive technologies such as Delayed Total Stop (DTS) for delayed shutdown, Intelligent Automatic Shut-off (IASF) which saves energy, and Microleak Control (MLC) to avoid water waste.

The IPC PW H61 Value high pressure washer is equipped with other features that increase the control and life of the 200 bar pressure washer. These include the Lack of Water Control (DRP) which protects the pump, the Clogged Lance Nozzle Control (NCC) for easier maintenance, and the Boiler Ignition Delay (IBD) which reduces wear.

Models available

This 4-wheel three-phase pressure washer is available in the following models:

• PW H61/4 D1813P4 T - cod. IDAC41365 - 180 bar with flow rate 400÷800 L/h
• PW H61/4 D1915P4 T - cod. IDAC41366 - 190 bar with flow rate 450÷900 L/h
• PW H61/4 D1517P4R T - cod. IDAC41381 - 150 bar with flow rate 500÷1000 L/h
• PW H61/4 D1719P4 T - cod. IDAC41368 - 170 bar with flow rate 600÷1150 L/h
• PW H61/4 D2017P4T - code IDAC41367 - 200 bar with flow rate 500÷1000 L/h

Functional specifications

Three-phase hot water pressure washer

These three-phase IPC pressure washers are ideal for professional applications in the automotive, agriculture, construction and industrial sectors. With boiler heat output ranging from 54 kW to over 70 kW , fuel consumption is 5.8 kg/h , and the fuel and detergent tanks have capacities of 25 and 22 liters respectively.

Sturdy 4-wheel structure

The compact dimensions of 110x70x90 cm and the variable weight between 120 and 140 kg make this IPC pressure washer easy to transport and manoeuvre, thanks to its 4-wheel structure. Created with new and more resistant plastic material.

Control panel with lights

To increase control of this three-phase hot water pressure washer, a complete panel with indicator lights has been provided. Furthermore, on the 3-wheel IPC PW H61 Value there is easy access for maintenance and refueling.

Used technologies

This pressure washer is equipped with a series of innovative technologies that improve its functionality and safety:

• Delayed Total Stop (DTS) : Allows delayed shutdown of the machine, protecting the internal components and prolonging the useful life of the appliance.
• Intelligent Automatic Shut-off (IASF) : System that automatically turns off the pressure washer in the event of prolonged disuse, saving energy.
• Microleak Control (MLC) : Detects and manages any microleaks of water, avoiding waste and damage.
• Water Deficiency Control (DRP) : Prevents machine operation in the absence of water, protecting the pump.
• Clogged Lance Nozzle Control (NCC) : Signals clogging of the nozzle, facilitating maintenance and ensuring constant performance.
• Boiler Ignition Delay (IBD) : Reduces boiler wear through a delayed ignition system.
• Electronic Counter (WHC) : Provides precise data on machine use for optimal management of operations.
• Temperature Stabilizer (ATC) : Maintains the water temperature constant, ensuring effective cleaning.
• Anti-Limescale Protection Unit (LCPU) : Prevents the formation of limescale, protecting the heating elements.
• Maintenance Period Indication (MLC) : Notifies when it is necessary to carry out maintenance interventions, always guaranteeing maximum performance.

Characteristics

• I three-phase hot water drop washer
• High pressure washer with max pressure 200 bar
• Water flow rate between 800 and 1150 L/h
• Power absorbed between 5 and 6.4 kW
• Total Stop
• Intelligent Automatic Shut-off
• IPC pump connecting rod crank
• Brass head
• Ceramic pistons
• Fuel consumption 5.8 kg/h
• 25 L fuel tank
• 22 L detergent tank
• Durable plastic construction
• 4 wheels
