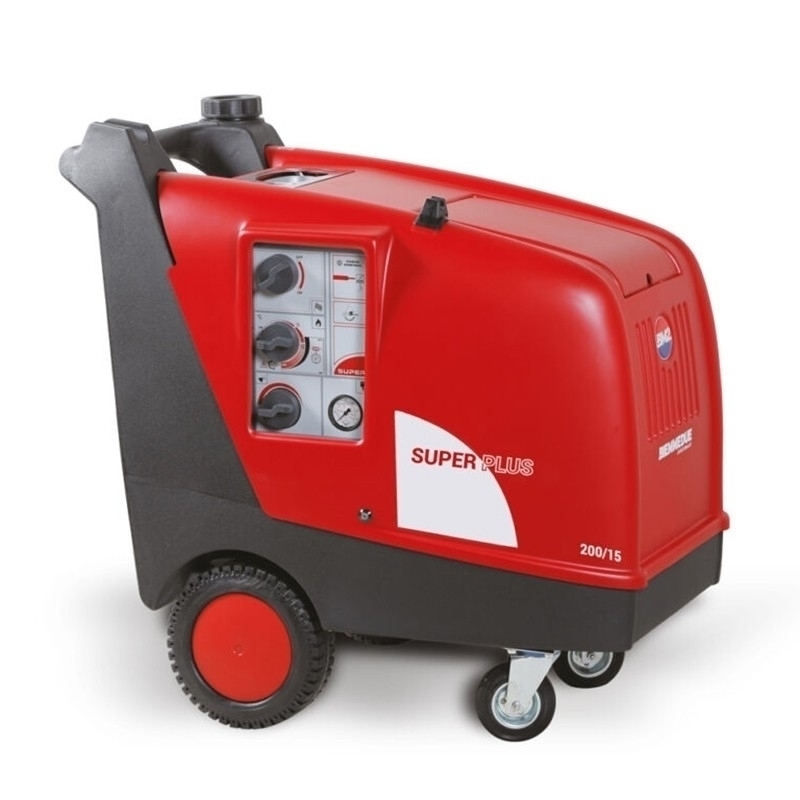

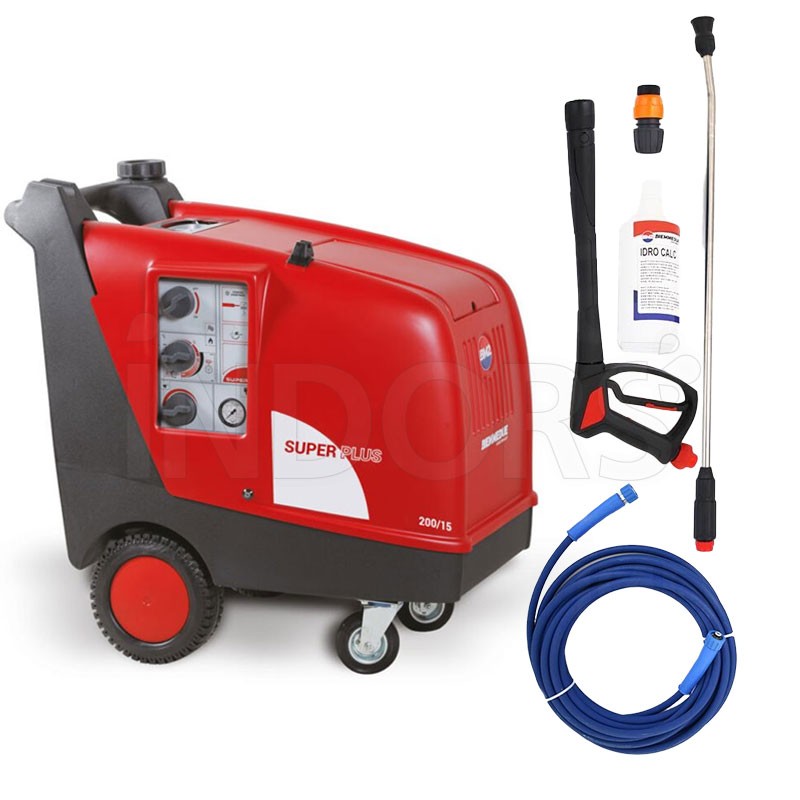

BIEMMEDUE Super Plus 200/15
Three-phase pressure washer 7.2 kW

Biemmedue Super Plus 200/15 Professional Hot Water Pressure Washer

Biemmedue Super Plus super concentrate of power and functionality MADE IN ITALY to degrease, sterilize, descale and meet any industrial cleaning need in a simple and convenient way: here are the ARCOMAT hot water pressure washers of the new SUPER series.

State-of-the-art technology ensures very high performance at low operating costs with constant reliability even in the most demanding operating conditions. The innovative design reduces weight and bulk in an aerodynamic line that emphasizes maneuverability. Robustness , ease of use and operational safety also exceed the most demanding expectations. Equipped with top-of-the-range INTERPUMP SERIES 47 pumps

Technical specifications

Biemmedue Super Plus 200/15 mounts connecting rod pumps with ceramic pistons and brass head, a 1450 RPM motor with motor-pump coupling by means of an elastic joint .

The Biemmedue Super Plus 200/15 pressure washer is fitted with a pressure and steam production regulating valve and is able to dispense the detergent at high pressure . The pressure washer has a water filter that can be inspected from outside the machine, a boiler with an efficiency higher than 89% with boiler pre-ventilation .

This machine is very safe , it features an automatic shutdown for lack of use after 20 minutes and a motor thermal protection. Moving the pressure washer is facilitated by the presence of two free wheels and two pivoting wheels with brakes.

The anti-limescale system is adjustable from 35 to 270 mml/h , there is also a practical control panel on which all the controls present in the machine are present:

• Leak detection with LED signalling
• Flame control with LED signalling
• Water shortage control with LED signalling
• Diesel level control with LED signalling
• Anti- scale level control with LED signalling

Control Panel

Characteristics

• ACDS : Advanced Control with Delayed Shutdown
• Connecting rod pumps with ceramic pistons and brass head
• 1450 RPM motor
• Motor-pump coupling by means of an elastic joint
• Pressure regulation valve and steam production
• High pressure detergent delivery
• Feed water tray with float valve
• Water filter that can be inspected from outside the machine
• Boiler with efficiency higher than 89%
• Boiler pre-ventilation
• Leak check
• Automatic shutdown for lack of use after 20 min .
• Motor thermal protection
• Two free wheels and two pivoting with brakes
• Anti-scale system adjustable from 35 to 270 mml/h
• Switch exclusion of the " flame " and " automatic shutdown " controls if not desired
• Storage compartment with valve adjustment access
• Storage of usage time with LED signaling when the " scheduled maintenance " period is reached
• Predisposition for hose reel ( optional )

Fields of application

• Intensive use
• Washing of cars and machinery
• Garden equipment
• Floors
• External walls
• Paint stripping and sandblasting
• bathrooms
• Swimming pools
