PTC Torpedo Compact PS is an industrial pressure washer with diesel boiler . Compact, with painted steel frame , with provision for lifting by forks or forklift and stainless steel canopies . PTC Torpedo Compact PS is equipped with a Kohler KDW 1003 diesel engine, liquid cooled with electric start.
These industrial pressure washers offer high performance, thanks to the Comet RW / TW Premium pumps , with speed reducer . PTC Torpedo Compact is equipped with safety systems including: pressure gauge , manual pressure regulator and safety valve .
The 80/100 kW diesel boiler with which PTC Torpedo Compact is equipped is equipped with electronic temperature regulation .
An anti-limescale device protects against wear and facilitates maintenance of the pressure washer.
Technical specifications
Lightweight and compact
PTC Torpedo Compact PS features a new, lightweight and compact design with integrated boiler.
Complete control panel
The control panel of PTC Torpedo Compact PS is complete and intuitive for the management of the equipment and the boiler.
Naspo HP
HP automatic reel (max 20 m 3/8 "supplied).
Compact size
This pressure washer is suitable for transport in small vans or vehicles .
Easy handling
Lower cargo pockets for easy handling.

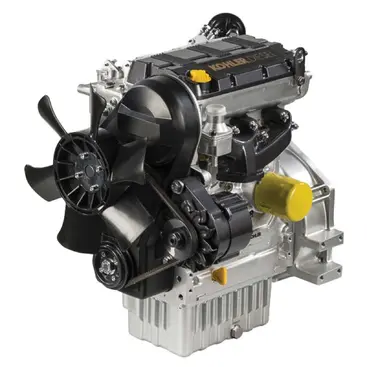

Kohler engine KDW 1003
The Kohler KDW 1003 diesel engine is a Stage V , 3-cylinder, liquid-cooled , 4-stroke engine. With a compact and versatile engine of 1028 cm³ of displacement and 18.0 kW of power, this Kohler engine is versatile, therefore it can be used in various fields of application. A leader in the construction of high quality diesel engines, Kohler has created the powerful KDW 1003 engine for use in agriculture and industry . Mountable on grass cutter, fruit harvester tractor, fruit harvester wagon, chipper, or, concrete mixer, plastering machine, mini dumper, mini excavator, compactor roller, vibrating plate, compact loader, generator set, refrigeration unit, sweeper, generic aerial platform, stringing platform of overhead power lines and the PTC Torpedo Compact PS industrial pressure washer.
Comet RW Premium pump
The Comet RW pump is equipped with a brass head , with an anti-corrosion die-cast aluminum alloy casing. The guide pistons are in hardened stainless steel, with non-return valves in high-efficiency stainless steel. The plunging pistons in integral ceramic, with connecting rods in integral bronze alloy, made in a single body. This Comet RW pump uses an exclusive No-Oil-Leak system in the crankcase to minimize wear on the piston oil seal (Patented).
For more details read the Technical Sheet here
TW Premium Pump
The Comet TW Premium pump is equipped with a brass head in anti-corrosion die-cast aluminum alloy. The guide pistons in hardened stainless steel, with non-return valves in high-efficiency stainless steel and plunging pistons in integral ceramic. Brass manifold: molded for maximum strength and durability up to 345 bar, with integral bronze alloy connecting rods. The flow rate is high up to 53.5 l / min , with an exclusive No-Oil-Leak system in the crankcase to minimize wear on the piston oil seal (Patented).
For more details read the Technical Sheet here
Functional specifications

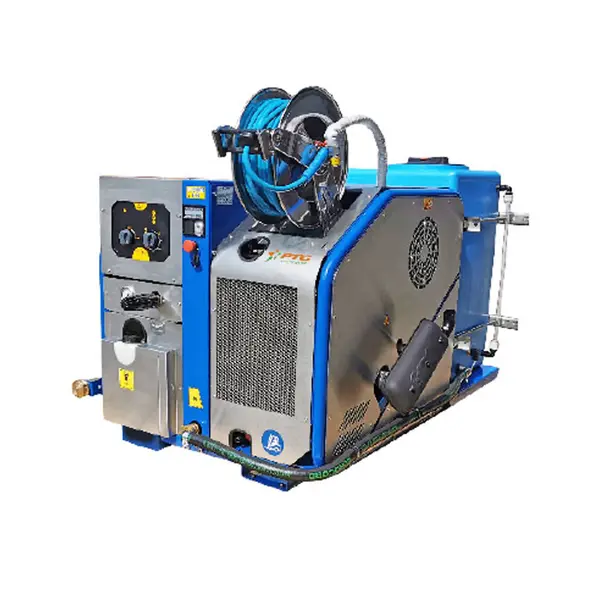

Complete version
The complete version of PTC Torpedo Compact PS is a complete version with 300/500 L tank kit and UNI-45 kit for filling.

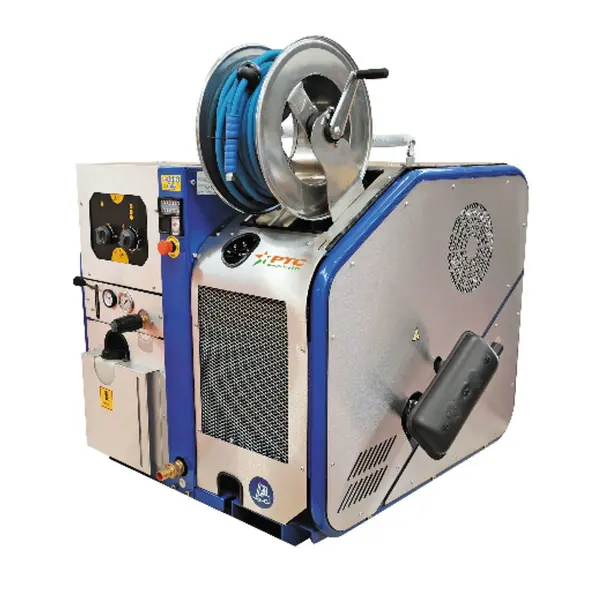

Powerstream version
The Powerstream version is equipped with a manual hose reel (models 16/250 PS - 16/350 PS).
Click for more information
Models available
The following models can be selected from the drop-down menu:
- Torpedo Compact 16/500
- Torpedo Compact 23/250
- Torpedo Compact 16/250 PS
- Torpedo Compact 16/350 PS
Watch the video
Characteristics
- High quality painted steel frame
- Forklift lifting arrangement
- Stainless steel casing
- Reliable Kohler KDW 1003 engine
- RW / TW Premium Comet pumps
- Automatic high pressure hose reel
- 80/100 kW Diesel boiler with electronic temperature regulation
- Anti-limescale device
- 300/500 L tank kit
- Professional use
