Helvi PC 43
Inverter Plasma Cutting

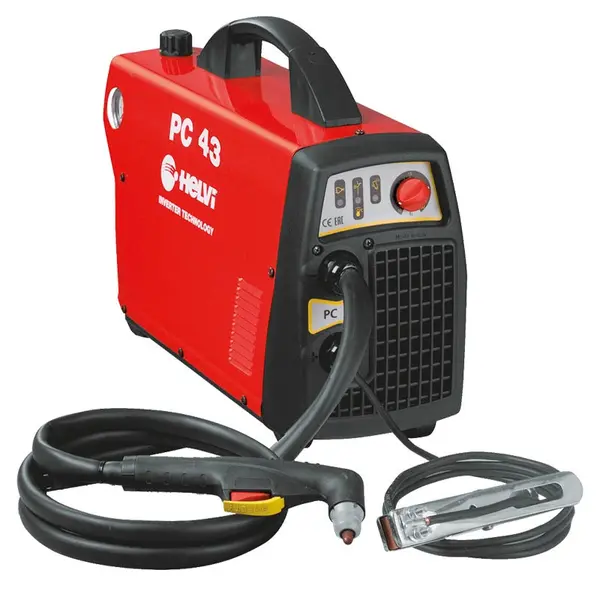

Helvi PC 43 - Inverter Plasma Cutting Welding Machine Thickness 13 mm

The Helvi PC 43 cod. 99830019 is a highly efficient and compact plasma cutting machine , ideal for a wide range of industrial and craft applications. This precision tool is designed to offer exceptional performance and ease of use to ensure precise and clean cuts.

Helvi PC 43 is a 230 V plasma cutting welder, whose maximum power is 3.3 kVA at 60% , which means it can handle intense loads for prolonged periods without problems.

The machine offers a cutting current range from 10 to 30 A , allowing the power to be adapted to the specific needs of the application. Separation cutting up to 15 mm thick, with quality cutting up to 13 mm .

The air capacity of Helvi PC 43 cod. 99830019 is 100 L/min , with air pressure of 4-5.5 bar .

Functional Specifications

Plasma welder with inverter technology

The plasma made with inverter technology guarantees a precise and clean Plasma Cutting up to 10 mm thick. Handy and easy to use, Helvi PC 43 is suitable for all high-speed cutting jobs on small thicknesses.

Advanced cooling system

The Helvi PC 43 cod.99830019 is equipped with an advanced cooling system to avoid overheating during cutting operations. Furthermore, it has an IP22S protection degree, which makes it resistant to dust and humidity, guaranteeing a long life. Class H insulation .

Types of welding possible with Helvi PC 43

• PLASMA : Plasma welding is an evolution of TIG welding designed for industries and professionals with high skills, where the plasma comes from a highly ionized gas with excellent performance in terms of welding resistance and precision. Thanks to its strong mechanical resistance to traction and heat, this type of welding is recommended for industrial processes. The molten metal (plasma) that comes out of the nozzle at very high speed reaching temperatures of up to 20,000 °C.
  Plasma Welding can be used on any type of metal that has medium-high thicknesses. This type of welding is faster than other welding and has a very high concentration of power, an almost total absence of fumes and requires a lower intensity of current.

Fields of application

• Light industry

• Carpentry
• Metal fabrication
• Sheet Metal Working
• Repair and maintenance services
• Building constructions
• Automotive
• Agricultural industry
• Recovery and recycling
• Home use

Characteristics

• Plasma Cutting Welder
• Power at 60% of 3.3 kVA
• Current Regulation 10 ÷ 40 A
• Separation cut 15 mm
• Quality Cut 10mm
• Professional quality

• THERE IS
• Certification
• EAC
• Air Cooling
• Single phase
• Electronic Control
• Line Voltage Compensation

• Power
• PLASMA
• Tires
• Automotive

HELVI: Italian excellence in welding

Helvi SpA is an Italian company belonging to the Beta group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers and accessories .

Helvi video presentation

Standard Equipment

• Plasma torch PT40 4 m - cod. 23010070
• Ground cable with clamp 4 m 6mm² - code 43210150

Additional consumable kits included

• Hood Ø 0.8 mm - 20-30A - cod. 23015186
• Hood Ø 0.65 mm - 10-20A - code 23015189
• Electrode - code 23015187
